TRH Intermittent/Bottom-Mounted HighShear Dispersing Homogenizer

Overview – TRH Dispersing Emulsifier

The TRH Batch High-Shear Dispersing Emulsifier is a high-efficiency mixing system designed for medium-to-high viscosity and multiphase materials. Driven by a high-speed motor, its precision-engineered stator-rotor geometry generates extreme tip speeds and kinetic energy, drawing materials into the shear zone for intense mechanical tearing, centrifugal extrusion, and liquid-layer friction. It rapidly homogenizes, disperses, and emulsifies immiscible solid-liquid and liquid-liquid phases in a fraction of the time, delivering consistent performance for fine chemicals, cosmetics, pharmaceuticals, and food processing.

Key Features & Advantages

• High-Shear Force & Fine Particle Size: The tight stator-rotor clearance and elevated tangential speeds create powerful mechanical and hydraulic shear, reducing particle sizes to the micron range to enhance emulsion stability and suspension uniformity.
• Efficient Batch Processing: Engineered for batch operations, the unit drives strong macroscopic turnover throughout the vessel, eliminating dead zones and drastically cutting batch cycle times.
• Versatile Stator Options: Features interchangeable stator heads—including slotted, round-hole, and mesh designs—tailored to specific process demands like rapid dissolving, high-viscosity dispersion, or ultra-fine emulsification.
• Sanitary & Durable Build: All wetted parts are crafted from premium 304 or 316L stainless steel with high-polish surfaces, offering excellent corrosion resistance, zero residue buildup, and full compliance with sanitary standards.
• Flexible Customization: Easily configured with electric or hydraulic lifting stands, explosion-proof motors, variable frequency drives (VFD), and compatibility with vacuum or pressure reaction vessels to fit various production scales.

Applications

• Mixing: Syrups, shampoos, detergents, fruit juice concentrates, yogurt, desserts, mixed dairy products, inks, and porcelain enamels.
• Homogenizing: Medicated lotions, ointments, face creams, masks, tissue homogenates, dairy homogenizer, fruit juices, printing inks, jams
• Dispersing: Preparation and depolymerization of suspensions, pill coatings, drug depolymerization, coating dispersion, lipsticks, vegetable broths, mustard mixtures, catalysts, matting agents, metals, pigments, modified asphalt, and nanomaterials.
• Emulsifying: Medicated emulsions, ointments, cold creams, facial masks, face creams, emulsified fragrances, oil-water emulsification, emulsified asphalt, resin emulsification, synthetic fibers, adhesives, wax emulsification, water-based polyurethane emulsification, pesticides.
• Reaching: High-efficiency extraction, hydrogenation reaction, saponification reaction, sulfonation reaction, TDI, MDI, micro-sphere reaction, etc.
• Powder/liquid mixing: Fumed silica, silica, silica fume, titanium dioxide, bentonite, talc, CMC, yellow collagen, milk powder

• Cosmetics & Personal Care: Creams, lotions, shampoos, facial cleansers, and essential oil emulsification.

• Pharmaceuticals & Biotechnology: Ointments, vaccine adjuvants, syrups, cell disruption, and suspension preparation.

• Food & Beverage: Sauces (mayonnaise, salad dressings), dairy processing, juice homogenization, and additive dispersion.

• Fine Chemicals & Advanced Materials: Coatings, inks, adhesives, pesticide formulations, and lithium battery slurry dispersion.

Operating Principles

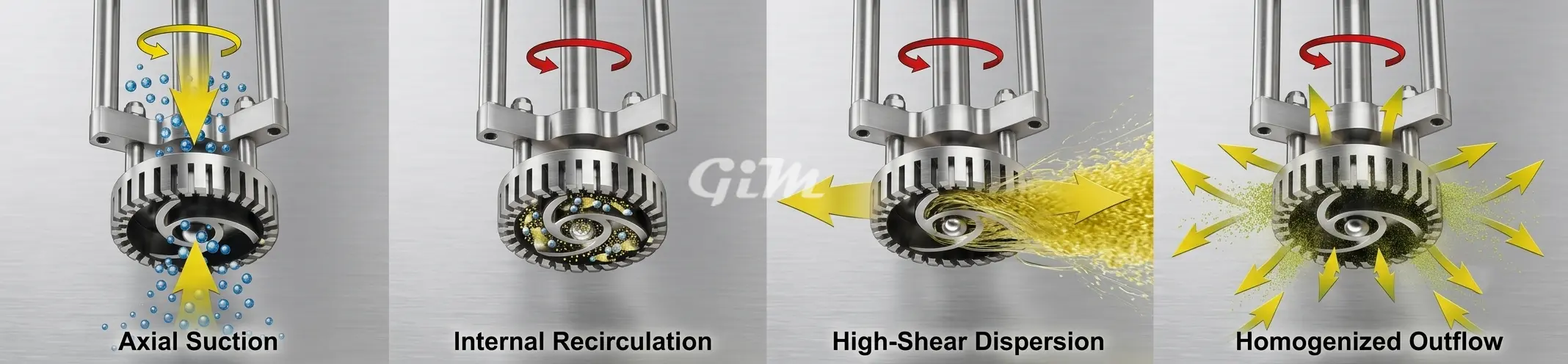

1. Axial Suction: The high-speed rotation of the rotor generates a powerful axial suction force, forcefully drawing material from the bottom into the stator-rotor shear zone simultaneously from both above and below.
2. Internal Recirculation: Material enters the narrow gap between the stator and rotor, experiencing intense mechanical tearing and liquid-layer friction at extremely high linear velocities.
3. High-Shear Dispersion: Material is ejected at high speed through the stator mesh/slits, instantly breaking down large particles and agglomerates.
4. Homogenized Outflow: The refined material is ejected radially at high speed in all directions, creating a strong macroscopic circulation and tumbling throughout the container, achieving uniform mixing and emulsification without dead zones.

Core process functions and material diagrams

Mixing: Syrups, shampoos, detergents, fruit juice concentrates, yogurt, desserts, mixed dairy products, inks, and enamels.

Homogenizing: medicated emulsions, ointments, cold creams, face masks, face creams, tissue homogenates, dairy product homogenization, fruit juices, printing inks, jams

Dispersing: preparation and depolymerization of suspensions, pill coatings, drug depolymerization, paint dispersion, lipsticks, vegetable soups, mustard mixtures, catalysts, matting agents, metals, pigments, modified bitumen, and nanomaterials.

Emulsifying: Pharmaceutical emulsions, ointments, face creams, masks, emulsified fragrances, oil-water emulsification, emulsified asphalt, resin emulsification, chemical fibers, adhesives, wax emulsification, waterborne polyurethane emulsification, pesticides.

Reaction processes: High-efficiency extraction, hydrogenation, saponification, sulfonation, TDI, MDI, microsphere reactions, etc.

Solid-liquid mixture: fumed silica, silica, silica fume, titanium dioxide, bentonite, talc, CMC, xanthan gum, milk powder

Installation method

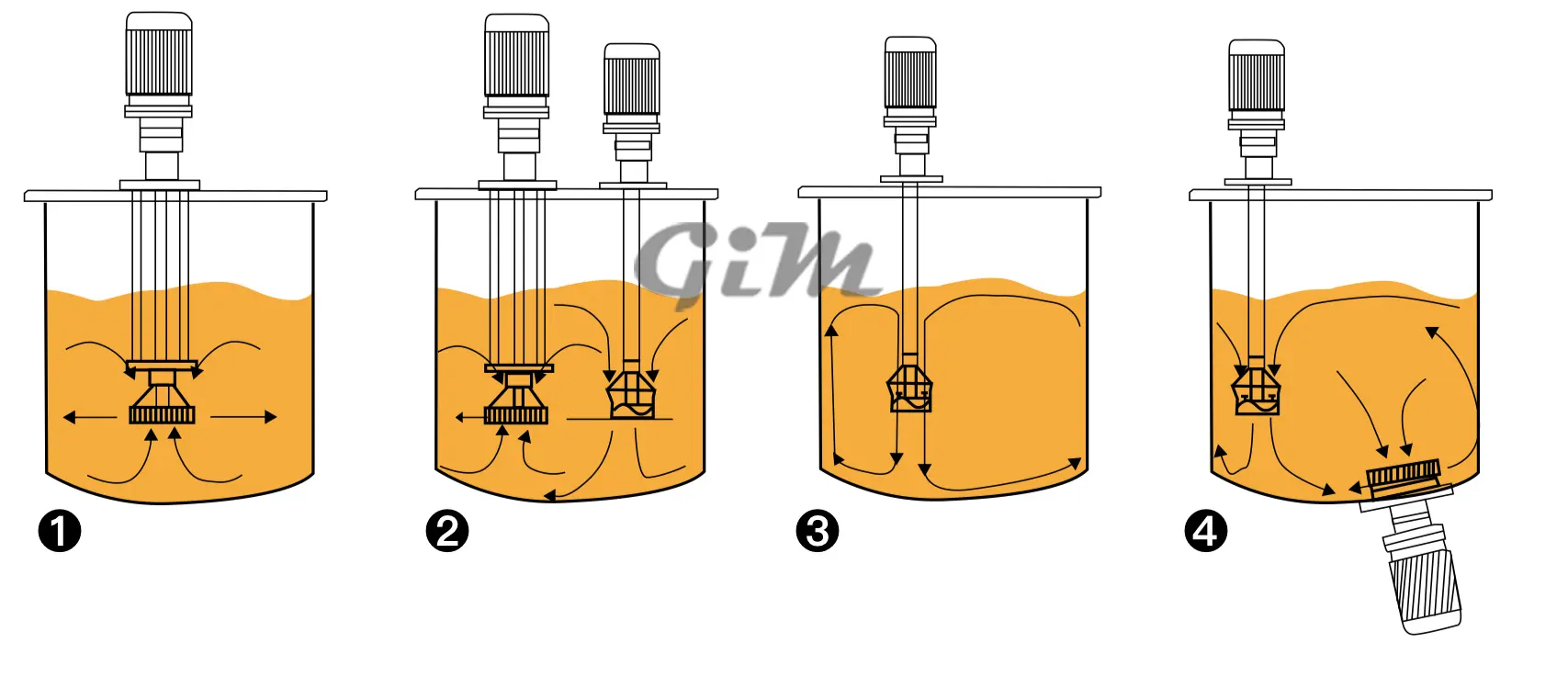

➊ Single Top-Mounted High Shear Homogenizer (Standard Top-Mounted)

Design Features: A single high-shear emulsifying head is vertically mounted through the center of the tank cover.

Flow Pattern:

• As the rotor spins at high speeds, it generates strong negative pressure, drawing liquid simultaneously from both top and bottom into the shearing head.
• After intense shearing, the material is discharged radially (horizontally) toward the tank walls, forming symmetrical upper and lower circulation loops.

Best For: Rapid dispersion, dissolution, and emulsification of low-to-medium viscosity liquids.

➋ Dual-Shaft Combination (High Shear Homogenizer + Auxiliary Agitator/Anchor/Paddle)

Design Features: Two independent motors are installed on top—one drives the high-shear homogenizer, and the other drives a slow-speed agitator (e.g., anchor, frame, or helical blade).

Flow Pattern:

• The homogenizer head provides intensive local micro-shearing.
• The auxiliary stirrer provides macro-mixing and axial movement, pushing materials from dead zones or outer walls toward the high-shear head.

Best For: Medium-to-high viscosity fluids or large-capacity vessels where a single high-shear head cannot move the entire batch.

➌ Propeller / Paddle Agitator (Macro-Mixing Only)

Design Features: A single-shaft propeller or anchor/paddle mixer (without a stator-rotor high-shear structure).

Flow Pattern:

• The impeller pushes the liquid downward toward the tank bottom, forcing it to roll upward along the sidewalls to form a large top-to-bottom circulation flow.

Best For: Blending, suspension, preventing sedimentation, or dissolving, but does not provide fine particle reduction or micro-emulsification.

➍ Combination System (Top Agitator + Inclined Bottom-Mounted Homogenizer)

Design Features: A standard mixing paddle is installed at the top, combined with an inclined bottom-mounted high-shear homogenizer at the bottom of the tank.

Flow Pattern:

• The top agitator pushes upper-layer liquid downward.
• The bottom homogenizer sucks heavy sediments directly from the bottom, subjects them to high-shear dispersion, and propels them upward at an angle.

Best For:

• Heavy powders or fast-settling solids (prevents unmixed solids from accumulating at the tank bottom).
• High-viscosity creams, gels, and pastes (leverage gravity feeding and superior bottom mechanical sealing).

Selection Recommendation

• High fineness + Low viscosity Choose ➊

• High fineness + High viscosity / Large volume  Choose ➋

• Macro-blending & suspension (no emulsification needed)  Choose ➌

• Fast-settling powders / Highly viscous pastes / Limited overhead headroom  Choose ➍

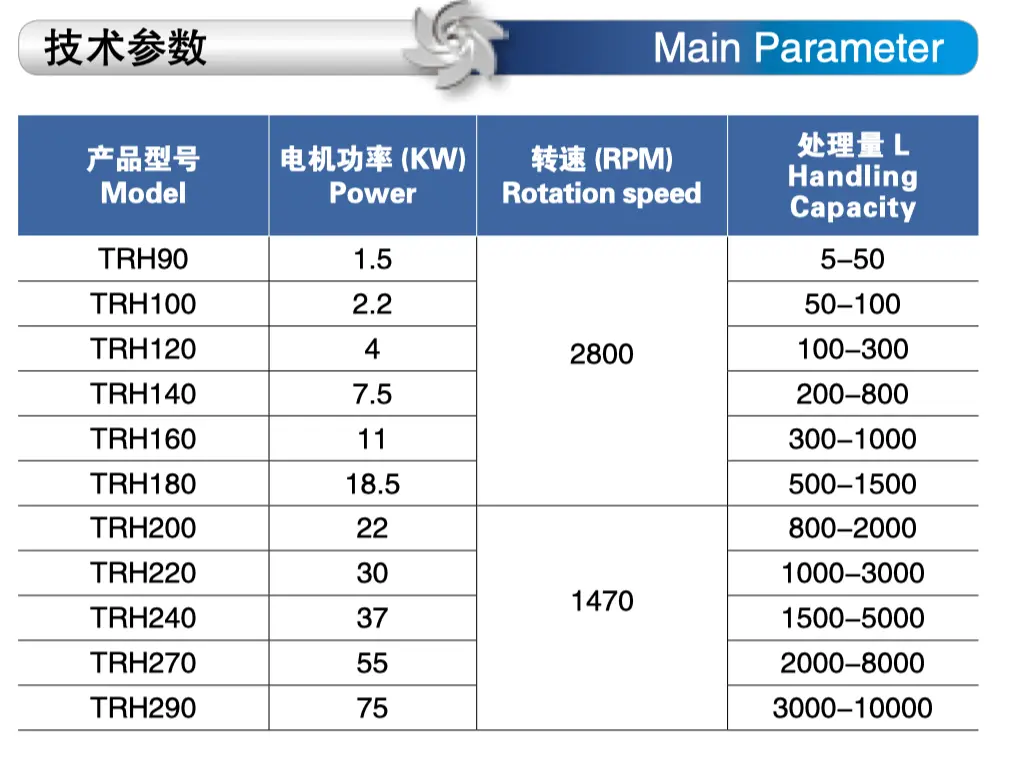

Technical Parameters

Noted:

1. The flow listed in the table refers to the data measured when the medium is water, and the exit pressure of 0.2MPa of the model listed in the table.
2. In conditions of high temperature, high pressure, flammability, explosion, and erosion, relevant parameters must be provided clearly for selecting customization precisely.
3. For a poor liquid medium, a pump that has a matching flow is suggested to feed at the inlet, input pressure <0.2Mpa.
4. If the data in the table is modified, no further notification will be given, and the right parameters as per the provided sample.

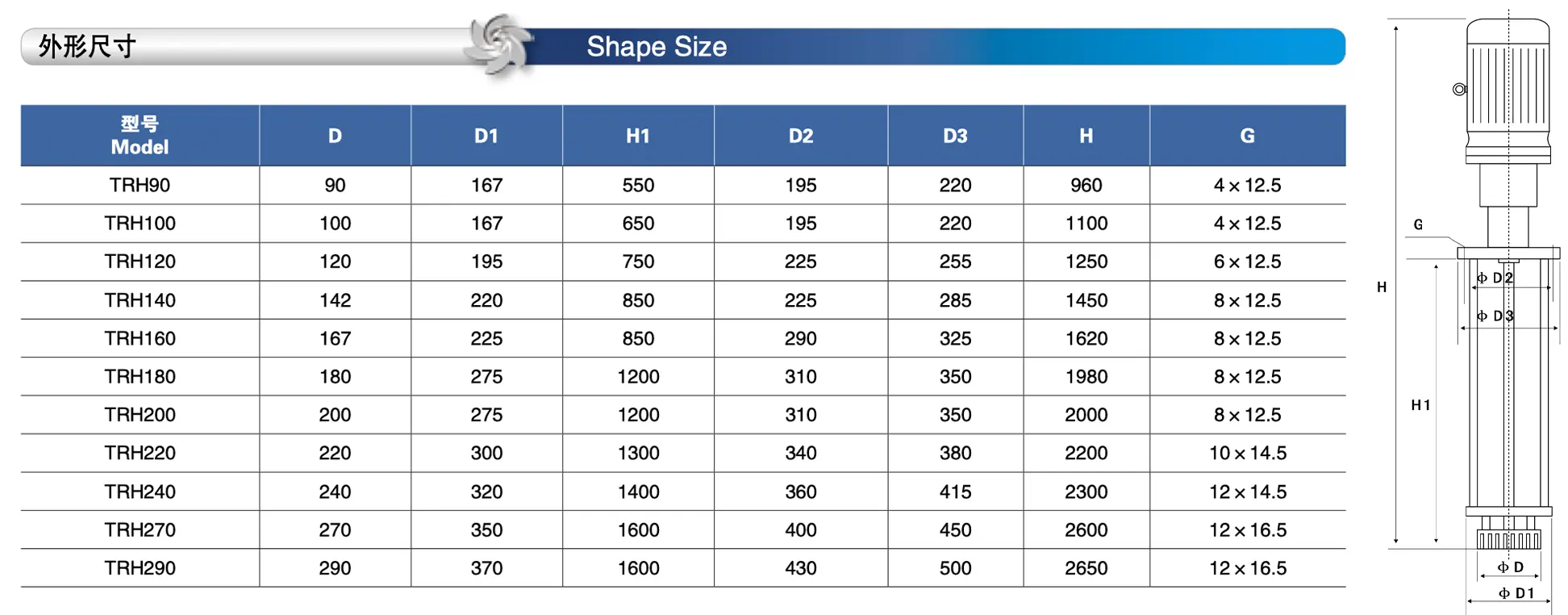

Dimension

Noted: If the data in the table is modified, no further notification will be given, and the right parameters as per the provided sample.
