TRD Bottom-Entry Batch High Shear Dispersing Emulsifier

Product Overview

The TRD Series Bottom-Entry Batch High Shear Dispersing Emulsifier is engineered specifically for intense dispersion, homogenization, emulsification, and dissolution at the bottom of industrial reaction vessels and mixing tanks. Installed directly at the bottom of the vessel, it effectively solves common processing challenges such as bottom sediment buildup, powder agglomeration, and mixing dead zones inherent in traditional mixing methods.

Driven by a high-precision rotor-stator system operating at high rotational speeds (up to 2,900 rpm), the machine creates intense hydraulic shear, centrifugal extrusion, and liquid layer friction. This rapidly reduces particle sizes and achieves uniform dispersion, significantly enhancing product quality and processing efficiency.

Key Features & Advantages

• Bottom-Mounted Design (Zero Dead Zones): Directly mounted at the bottom of the vessel, utilizing gravity and high suction to draw bottom materials directly into the shearing zone. Prevents sedimentation and ensures uniform consistency throughout the tank.
• High-Efficiency Shear & Homogenization: Precision-engineered rotor-stator geometry creates intense fluid shearing force in milliseconds, rapidly breaking down agglomerates and achieving ultrafine droplets or particles for immiscible liquid-liquid or solid-liquid phases.
• Wide Range of Processing Capacities: Offers models suited for everything from pilot lab applications (5 L) to large-scale industrial manufacturing (up to 6,000 L).
• Flexible Process Integration: Can operate as a standalone emulsifier or be paired with In-Line High Shear Dispersing Emulsifiers or top-entry anchor/scrapper mixers to handle high-viscosity or high-solid formulations efficiently.

Applications

• Fine Chemicals: Pigments, dyes, coatings, lubricants, catalysts, organic/inorganic powder dispersion.
• Personal Care & Cosmetics: Detergents, shampoos, creams, lotions, toothpaste, etc.
• Pharmaceuticals & Biotechnology: Ointments, syrups, emulsions, biological suspensions.
• Food & Beverage: Sauces, dairy products, food additives, juice homogenization.

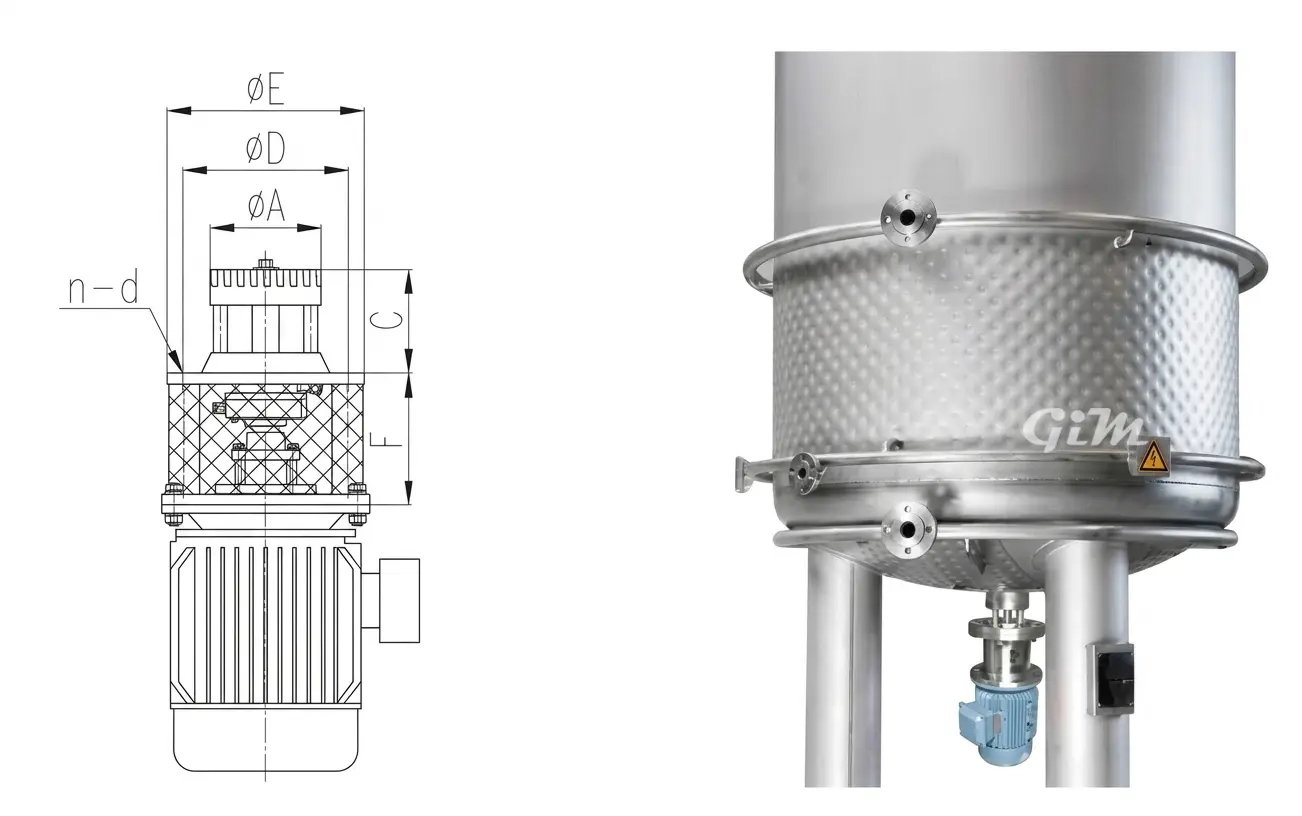

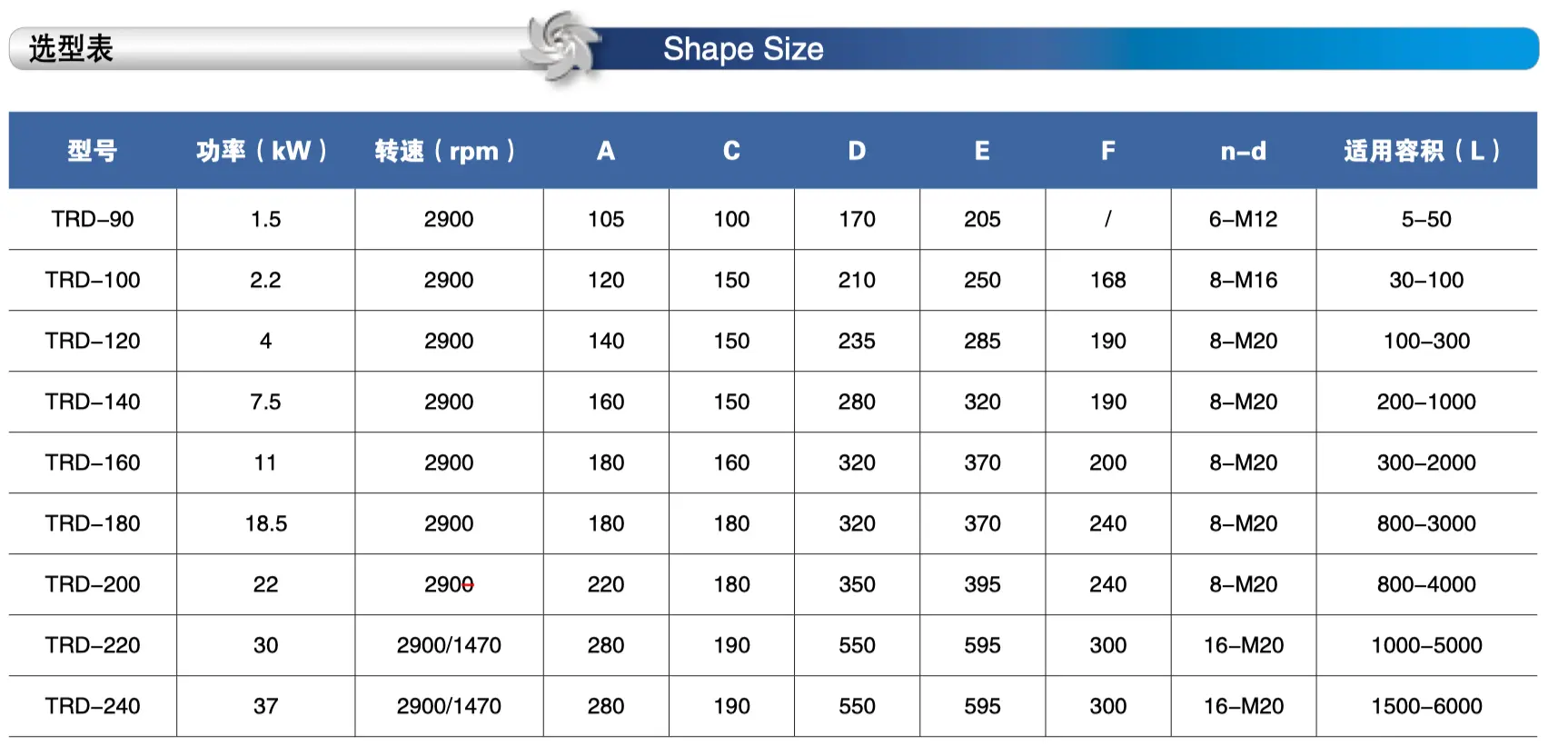

Selection Table & Dimensions

Noted:

1. The flow listed in the table refers to the data measured when the medium is water, and the exit pressure of 0.2MPa of the model listed in the table.
2. In conditions of high temperature, high pressure, flammability, explosion, and erosion, relevant parameters must be provided clearly for selecting customization precisely.
3. For a poor liquid medium, a pump that has a matching flow is suggested to feed at the inlet, input pressure <0.2Mpa.
4. If the data in the table is modified, no further notification will be given, and the right parameters as per the provided sample.
