KSCP Series Sanitary Centrifugal Pump Semi-open impeller
Technical Specifications
- Max flow: 130 m3/h / 572 US.GPM / 478 IM.GPM;
- Max head: 70 mH2O;
- Max temperature: 120 ºC;
- Max speed: 3600 RPM;
- Frequency：50/60 Hz;
- Certificate: 3A-02-10/NO.1597, FDA.177.2600
- Support Customization
- Two-Year Warranty
- Global Shipping
- Multiple Payment Methods
KSCP Sanitary Pump Overview
Designed specifically for the food, beverage, dairy, and pharmaceutical industries, the KSCP Series offers a high-efficiency, sanitary fluid handling solution. Featuring an optimized impeller and dead-leg-free construction, it guarantees superior hygiene standards while maximizing transfer efficiency and minimizing fluid shear.
Design and Features
- Casing manufactured with cold-formed plate.
- Open impeller and close impeller are manufactured with stainless steel investment casting.
- Adjustable stainless steel legs.
- Pump designed according to 3A sanitary standards. IEC NEMA B34 motors, IP 55, F-class insulation,50HZ,60HZ
Applications
- The centrifugal pump is manufactured in stainless steel and with ahrouded motor.
- Its sanitary and cost-efficient design makes it perfect for the dairies, beverages, food-processing, pharmaceutical, and fine chemicals industries.
Operating Principles
- Housed inside the casing, the impeller rotates in conjunction with the pump shaft. With this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy.
- This pump is not reversible by simple reversal of the direction of rotation.
- The direction of rotation is clockwise when the pump is viewed from the rear side of the motor.
Options
- Mechanical seal in: C/SiC, TC/TC
- Gaskets in: FPM (Viton), NBR, and PTFE
- Connections: Clamp, thread, flange, DIN, SMS, RJT, IDF
- Motor 2900, 1450, 3600 RPM 50HZ/60HZ

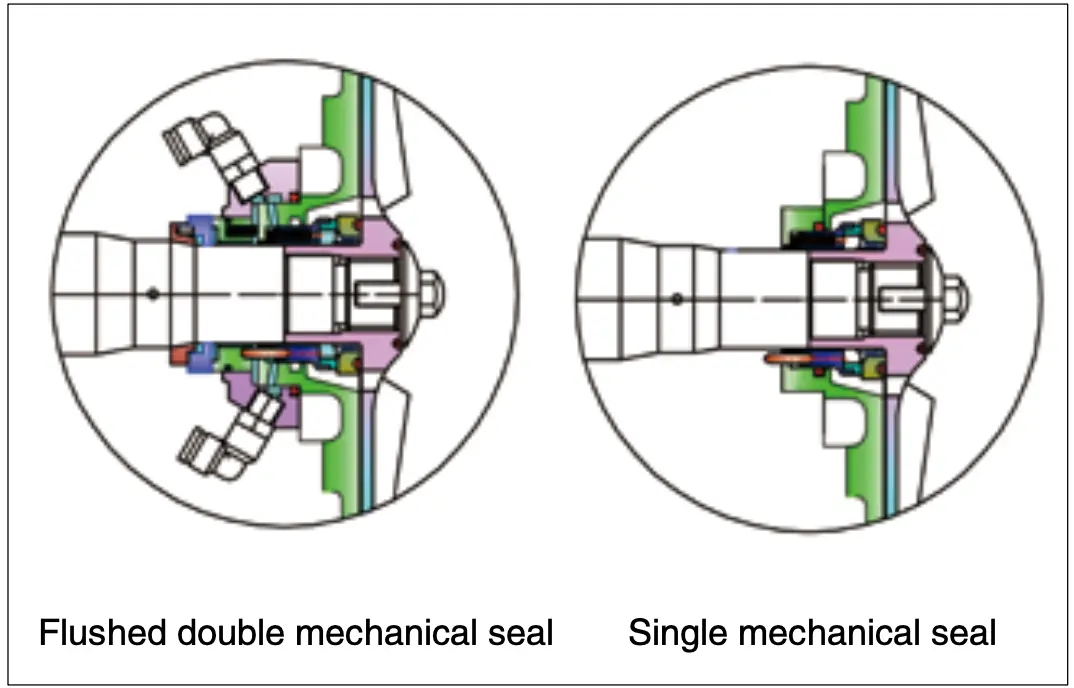

- Single mechanical seal(standard)
- Flushed couble mechanical seal(Options)
Materials
- Parts in contact with pumped media： AISI 316L/AISI304
- Gaskets (standard)： EPDM (FDA)
- Mechanical seal (standard)： C/SiC/EPDM
- Inside surface finishing： Ra≤0.8 um
- Outside surface finishing： Sandblast or Mirror Polish
Electric Motor
The motor meets IEC EN IE2/IE3/IE4/IE5 high efficiency standards, and uses a PTC thermistor.

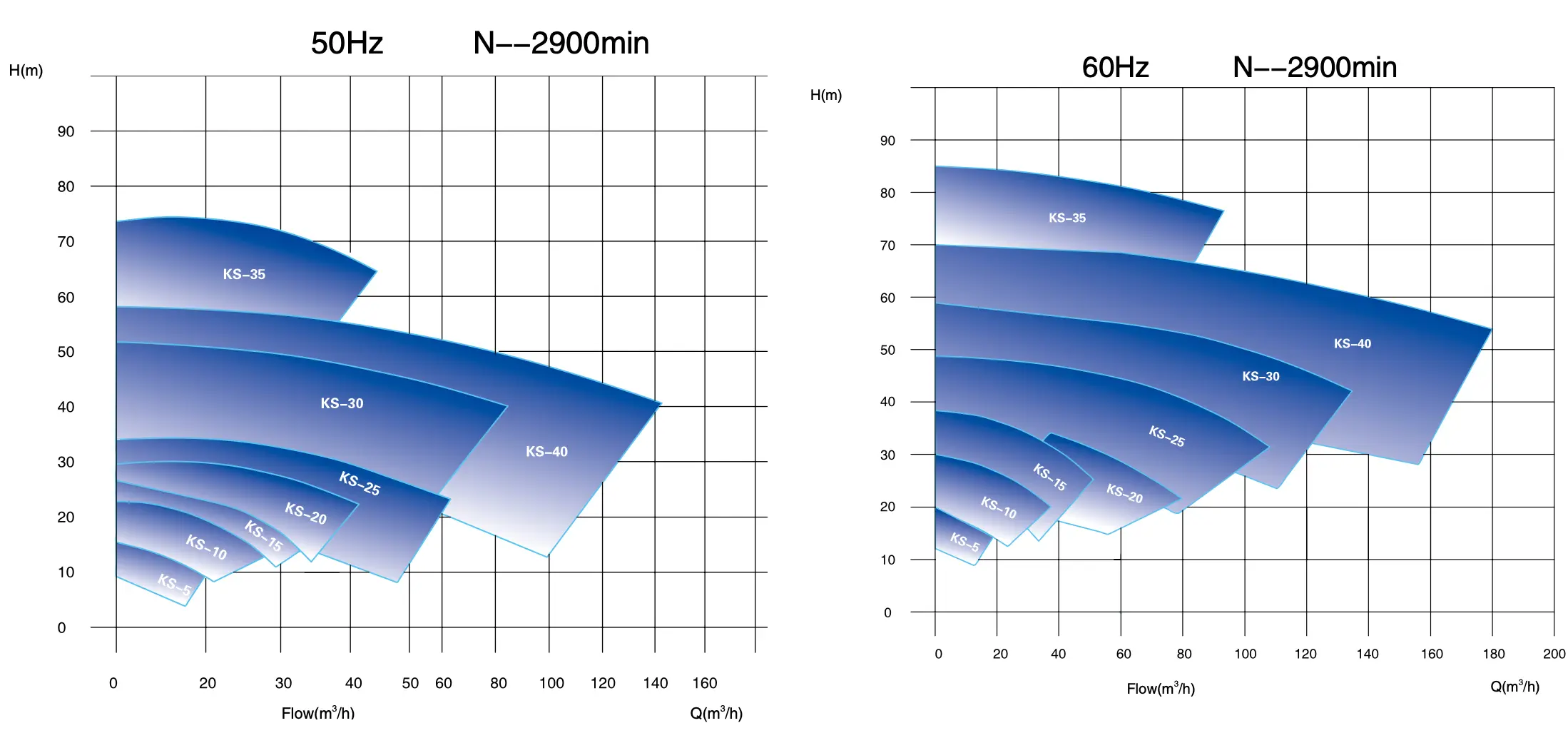

Performance Curve
Technical Parameters
KSCP Sanitary Pump Dimension
Performance Curve
