GT Vertical Coupling Pipeline Booster Centrifugal Pump

Flow Rate Range: 1.5 to 1200 m³/h
Head Range: 5 to 150 meters
Discharge Diameter: DN20 to DN350 mm
Working Pressure: Up to 1.6 MPa
Temperature of Transported Medium: Up to 80°C

Get Quotes Chat Now 💬

Support Customization
Two-Year Warranty
Global Shipping
Multiple Payment Methods

Categories: Centrifugal Pumps, Industrial Pumps Tag: Vertical Brand: GIM FLUID

Overview – GT Coupling Single-Stage Transfer Pump

The GT Removable Pipeline centrifugal pump offers high efficiency, low noise, and easy maintenance. GT125/150 models have extended/removable shafts, while GT200+ models enable seal replacement without motor removal.

Applications

Boiler feedwater
Community area water supply systems
Central heating systems for communities (apartments) or blocks
Central air conditioning water circulation systems
Washing systems
Domestic hot water systems
General industrial water systems
Industrial Water Supply: Suitable for transferring water in industrial processes.
Municipal Water Supply: Used in municipal water systems for distribution and pressure boosting.
Fire Fighting Systems: Provides reliable water supply for fire protection.
Heating Systems: Can be used in heating and cooling systems for fluid circulation.

Advantages

Removable Design: Allows for easy disassembly and maintenance without removing the entire pump from the pipeline.
Single-Stage Operation: Provides efficient and reliable performance for medium to high-flow applications.
Pipeline Compatibility: Designed to fit within pipeline systems with minimal space requirements.
High Efficiency: Utilizes a high-performance hydraulic model and precision casting to achieve excellent efficiency and minimal friction losses.
Low Noise: Designed to operate with low noise levels.
Reliable Performance: Known for its stable and reliable performance.
Compact Structure: Space-saving design that fits easily into existing pipeline systems.
Easy Installation and Maintenance: Directly connects to pipelines, with straightforward

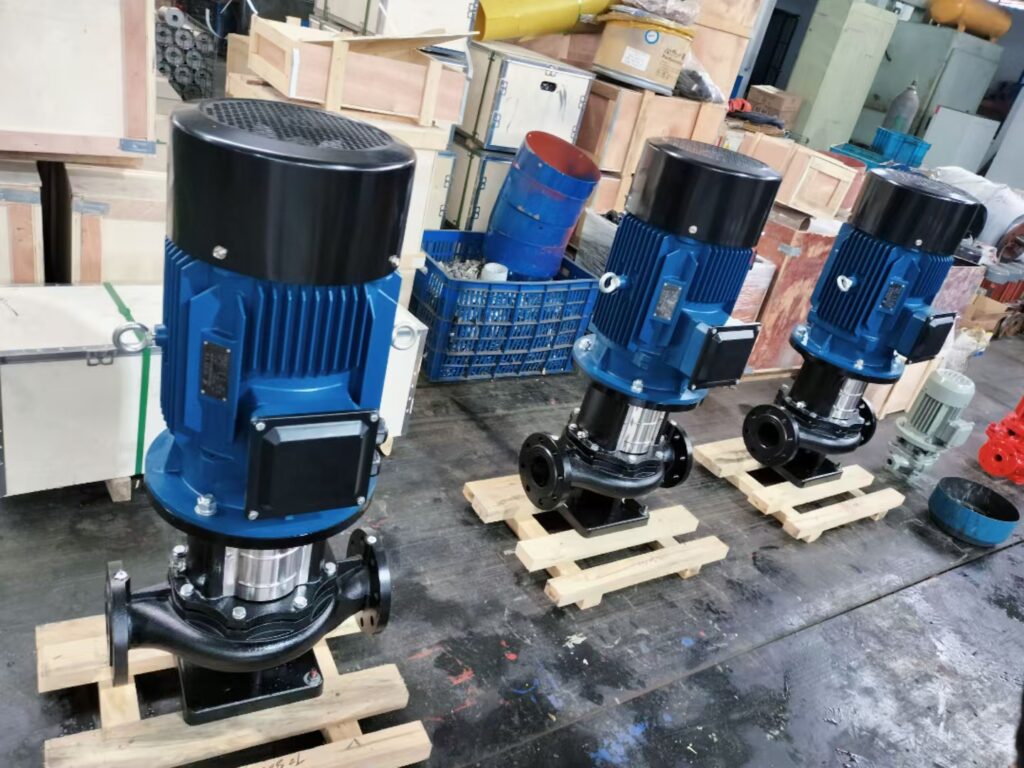

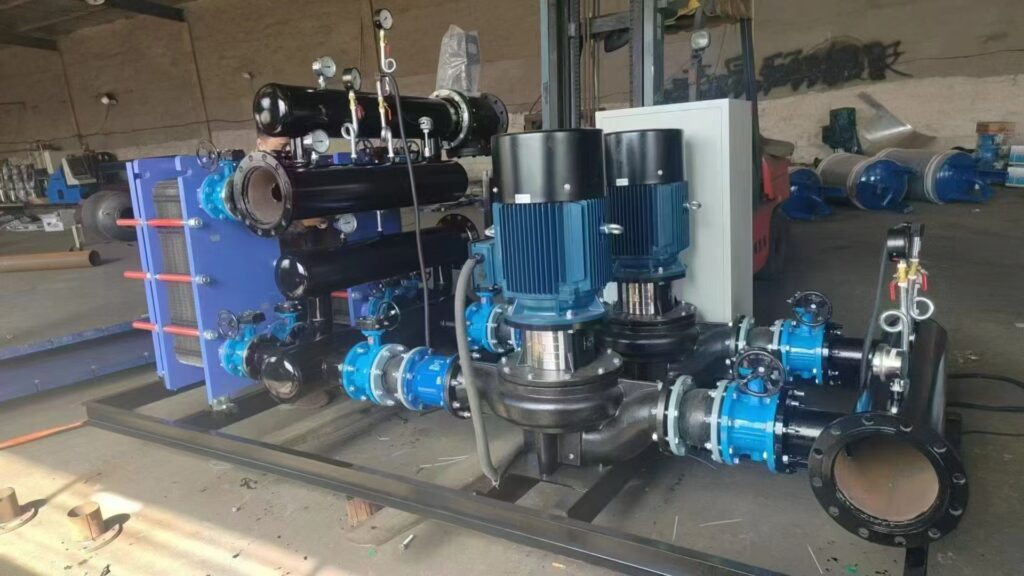

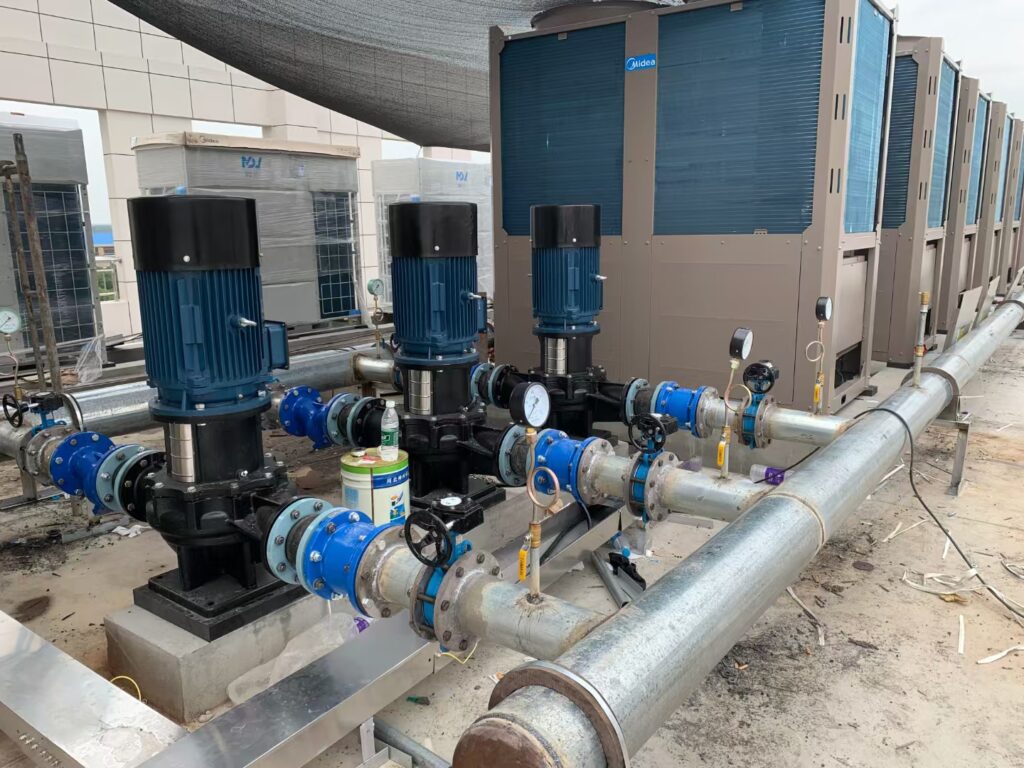

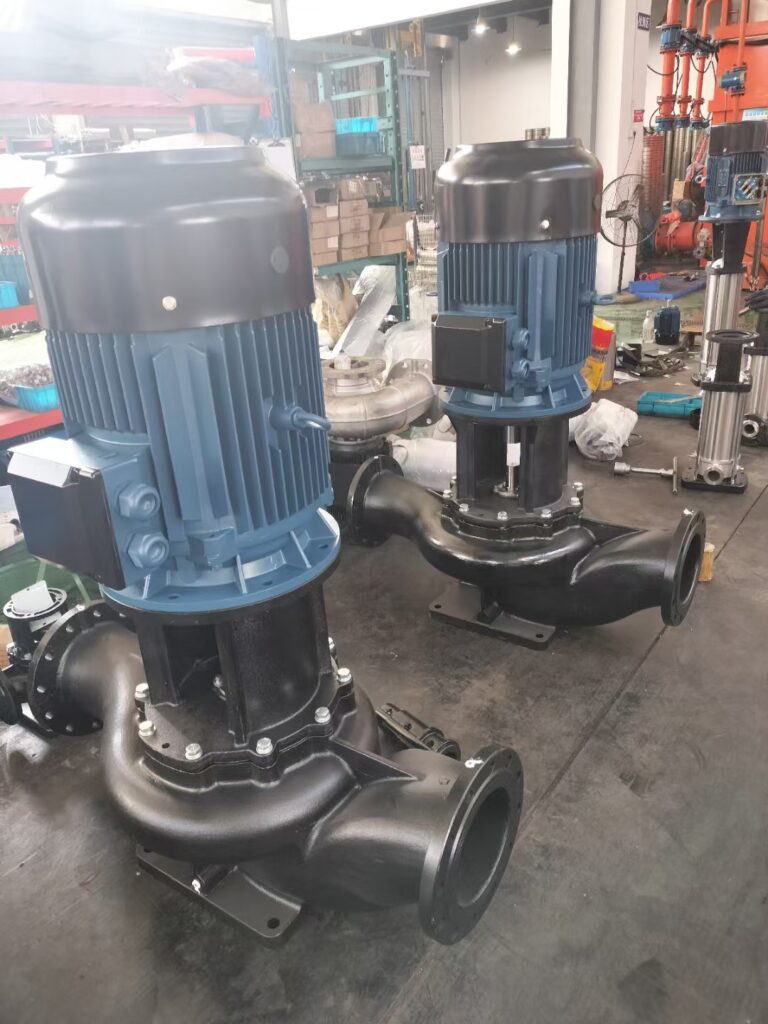

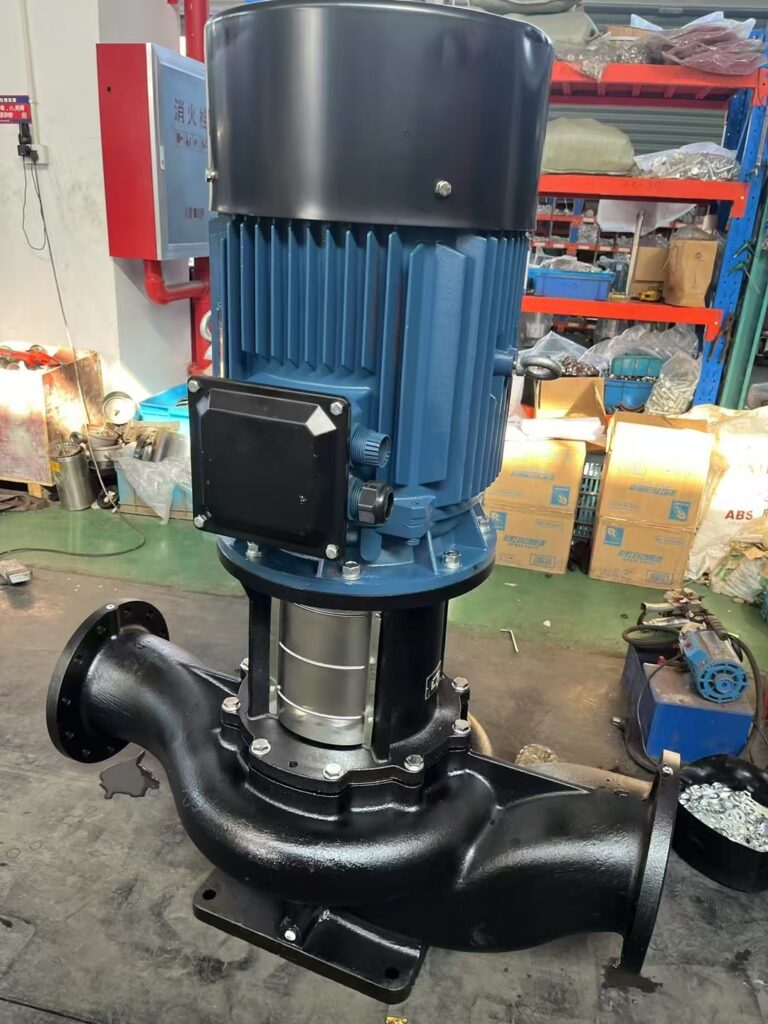

Detailed Photos

GT-removable-vertical-circulating-transfer-booster-centrifugal-pump

GT-removable-vertical-circulating-transfer-booster-centrifugal-pump

GT-removable-vertical-circulating-transfer-booster-centrifugal-pump

GT-removable-vertical-circulating-transfer-booster-centrifugal-pump

GT-removable-vertical-circulating-transfer-booster-centrifugal-pump

Performance Spectrum

GT pump performance spectrum 50Hz — GT pump performance spectrum – 50Hz

GT pump performance spectrum 60hz — GT pump performance spectrum – 60hz

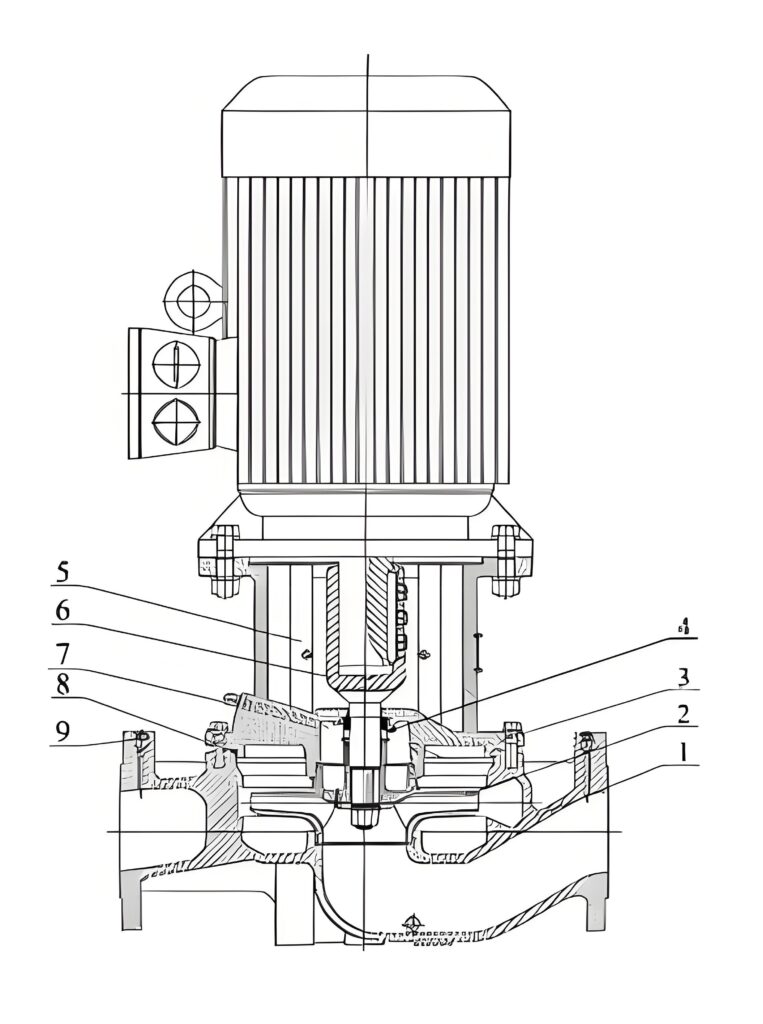

Structure

GT-removable-vertical-pipeline-centrifugal-transfer-pump-structure-drawing

No.	Part name	Material
1	Pump body	Iron cast HT200
2	Impeller	Iron cast HT200/Stainless steel 0Cr18Ni9
3	Pump head	Iron cast/HT200
4	Mechanical seal	Alloy
5	Protective plate	Stainless steel 0Cr18Ni9
6	Pump shaft	Stainless steel 2Cr13
7	bleeder screw	Brass H62
8	O ring	NBR
9	Plug screw	0Cr18Ni9

Performance

GT Series Vertical Single Stage Inline Centrifugal Pump

No.	Model	Rated Flow (m3/h)	Rated Flow (l/s)	Rated Flow (US.gpm)	Rated Flow (IMP.gpm)	Rated Head (m)	Pressure (bar)	Pressure (psi)	Speed (rpm)	NPSHr (m)	Power(kW) 1x220V	Power(kW) 3x380	Power(hp) 1x220V	Power(hp) 3x380
1	GT.32.14G.02	8	2.2	35.2	29.3	14	1.4	19.9	2900	2.5	0.8	0.8	1.0	1.0
2	GT.32.18G.02	8	2.2	35.2	29.3	18	1.8	25.6	2900	2.5	-	1.1	-	1.5
3	GT.32.21G.02	12.5	3.5	55.0	45.8	21	2.1	29.8	2900	2.5	1.5	1.5	2.0	2.0
4	GT.32.26G.02	12.5	3.5	55.0	45.8	26	2.5	36.9	2900	2.5	2.2	2.2	3.0	3.0
5	GT.32.33G.02	12.5	3.5	55.0	45.8	33	3.2	46.9	2900	2.5	-	3.0	-	4.0
6	GT.32.40G.02	12.5	3.5	55.0	45.8	40	3.9	56.8	2900	2.5	-	4.0	-	5.4
7	GT.32.50G.02	12.5	3.5	55.0	45.8	50	4.9	71.0	2900	2.5	-	5.5	-	7.4
8	GT.40.14G.02	8	2.2	35.2	29.3	14	1.4	19.9	2900	2.5	0.8	0.8	1.0	1.0
9	GT.40.16G.02	12.5	3.5	55.0	45.8	16	1.6	22.7	2900	2.5	1.1	1.1	1.5	1.5
10	GT.40.21G.02	12.5	3.5	55.0	45.8	21	2.1	29.8	2900	2.5	1.5	1.5	2.0	2.0
11	GT.40.20G.02	20	5.6	88.1	73.3	20	2.0	28.4	2900	2.5	2.2	2.2	3.0	3.0
12	GT.40.26G.02	20	5.6	88.1	73.3	26	2.5	36.9	2900	2.5	-	3.0	-	4.0
13	GT.40.30G.02	25	6.9	110.1	91.7	30	2.9	42.6	2900	2.5	-	4.0	-	5.4
14	GT.40.36G.02	25	6.9	110.1	91.7	36	3.5	51.1	2900	2.5	-	5.5	-	7.4
15	GT.40.48G.02	25	6.9	110.1	91.7	48	4.7	68.2	2900	2.5	-	7.5	-	10.1
16	GT.50.32G.02	12.5	3.5	55.0	45.8	32	3.1	45.4	2900	2.5	-	3.0	-	4.0
17	GT.50.39G.02	12.5	3.5	55.0	45.8	39	3.8	55.4	2900	2.5	-	4.0	-	5.4
18	GT.50.49G.02	12.5	3.5	55.0	45.8	49	4.8	69.6	2900	2.5	-	5.5	-	7.4
19	GT.50.59G.02	12.5	3.5	55.0	45.8	59	5.8	83.8	2900	2.5	-	7.5	-	10.1
20	GT.50.80G.02	12.5	3.5	55.0	45.8	80	7.8	113.6	2900	2.5	-	11.0	-	14.8
21	GT.50.12G.02	16	4.4	70.4	58.7	12	1.2	17.0	2900	2.5	1.1	1.1	1.5	1.5
22	GT.50.15G.02	20	5.6	88.1	73.3	15	1.5	21.3	2900	2.5	1.5	1.5	2.0	2.0
23	GT.50.18G.02	25	6.9	110.1	91.7	18	1.8	25.6	2900	2.5	2.2	2.2	3.0	3.0
24	GT.50.24G.02	25	6.9	110.1	91.7	24	2.4	34.1	2900	2.5	-	3.0	-	4.0
25	GT.50.28G.02	30	8.3	132.1	110.0	28	2.7	39.8	2900	2.5	-	4.0	-	5.4
26	GT.50.35G.02	30	8.3	132.1	110.0	35	3.4	49.7	2900	2.5	-	5.5	-	7.4
27	GT.50.40G.02	35	9.7	154.1	128.3	40	3.9	56.8	2900	2.5	-	7.5	-	10.1
28	GT.50.50G.02	40	11.1	176.1	146.6	50	4.9	71.0	2900	3	-	11.0	-	14.8
29	GT.50.60G.02	50	13.9	220.2	183.3	60	5.9	85.2	2900	4	-	15.0	-	20.1
30	GT.50.70G.02	50	13.9	220.2	183.3	70	6.9	99.4	2900	4	-	18.5	-	24.8
31	GT.50.81G.02	50	13.9	220.2	183.3	81	7.9	115.0	2900	4	-	22.0	-	29.5
32	GT.65.37G.02	25	6.9	110.1	91.7	37	3.6	52.5	2900	3	-	5.5	-	7.4
33	GT.65.48G.02	25	6.9	110.1	91.7	48	4.7	68.2	2900	3	-	7.5	-	10.1
34	GT.65.15G.02	30	8.3	132.1	110.0	15	1.5	21.3	2900	3	2.2	2.2	3.0	3.0
35	GT.65.20G.02	30	8.3	132.1	110.0	20	2.0	28.4	2900	3	-	3.0	-	4.0
36	GT.65.22G.02	40	11.1	176.1	146.6	22	2.2	31.2	2900	3	-	4.0	-	5.4
37	GT.65.30G.02	40	11.1	176.1	146.6	30	2.9	42.6	2900	3	-	5.5	-	7.4
38	GT.65.34G.02	50	13.9	220.2	183.3	34	3.3	48.3	2900	3	-	7.5	-	10.1
39	GT.65.41G.02	50	13.9	220.2	183.3	41	4.0	58.2	2900	3	-	11.0	-	14.8
40	GT.65.51G.02	50	13.9	220.2	183.3	51	5.0	72.4	2900	3	-	15.0	-	20.1
41	GT.65.61G.02	50	13.9	220.2	183.3	61	6.0	86.6	2900	3	-	18.5	-	24.8
42	GT.65.68G.02	50	13.9	220.2	183.3	68	6.7	96.6	2900	3	-	22.0	-	29.5
43	GT.65.85G.02	50	13.9	220.2	183.3	85	8.3	120.7	2900	3	-	30.0	-	40.2
44	GT.80.41G.02	50	13.9	220.2	183.3	41	4.0	58.2	2900	3	-	11.0	-	14.8
45	GT.80.48G.02	50	13.9	220.2	183.3	48	4.7	68.2	2900	3	-	15.0	-	20.1
46	GT.80.13G.02	50	13.9	220.2	183.3	13	1.3	18.5	2900	3	-	3.0	-	4.0
47	GT.80.18G.02	50	13.9	220.2	183.3	18	1.8	25.6	2900	3	-	4.0	-	5.4
48	GT.80.23G.02	50	13.9	220.2	183.3	23	2.3	32.7	2900	3	-	5.5	-	7.4
49	GT.80.29G.02	50	13.9	220.2	183.3	29	2.8	41.2	2900	3	-	7.5	-	10.1
50	GT.80.32G.02	70	19.4	308.2	256.6	32	3.1	45.4	2900	4.5	-	11.0	-	14.8
51	GT.80.38G.02	80	22.2	352.2	293.3	38	3.7	54.0	2900	4.5	-	15.0	-	20.1
52	GT.80.47G.02	80	22.2	352.2	293.3	47	4.6	66.7	2900	4.5	-	18.5	-	24.8
53	GT.80.54G.02	80	22.2	352.2	293.3	54	5.3	76.7	2900	4.5	-	22.0	-	29.5
54	GT.80.60G.02	80	22.2	352.2	293.3	60	5.9	85.2	2900	4.5	-	22.0	-	29.5
55	GT.80.67G.02	80	22.2	352.2	293.3	67	6.6	95.1	2900	4.5	-	30.0	-	40.2
56	GT.100.9.02	50	13.9	220.2	183.3	9	0.9	12.8	2900	3	2.2	2.2	3.0	3.0
57	GT.100.15.02	60	16.7	264.2	220.0	15	1.5	21.3	2900	3	-	4.0	-	5.4
58	GT.100.17G.02	80	22.2	352.2	293.3	17	1.7	24.1	2900	4	-	5.5	-	7.4
59	GT.100.22G.02	80	22.2	352.2	293.3	22	2.2	31.2	2900	4	-	7.5	-	10.1
60	GT.100.27.02	100	27.8	440.3	366.6	27	2.6	38.3	2900	4	-	11.0	-	14.8
61	GT.100.33.02	100	27.8	440.3	366.6	33	3.2	46.9	2900	4	-	15.0	-	20.1
62	GT.100.35G.02	100	27.8	440.3	366.6	35	3.4	49.7	2900	4	-	15.0	-	20.1
63	GT.100.40G.02	100	27.8	440.3	366.6	40	3.9	56.8	2900	4	-	18.5	-	24.8
64	GT.100.48G.02	100	27.8	440.3	366.6	48	4.7	68.2	2900	4	-	22.0	-	29.5
65	GT.100.52G.02	130	36.1	572.4	476.6	52	5.1	73.8	2900	5	-	30.0	-	40.2
66	GT.125.11G.04	120	33.3	528.4	439.9	11	1.1	15.6	1450	4	-	5.5	-	7.4
67	GT.125.14G.04	120	33.3	528.4	439.9	14	1.4	19.9	1450	4	-	7.5	-	10.1
68	GT.125.19G.04	140	38.9	616.4	513.2	19	1.9	27.0	1480	4	-	11.0	-	14.8
69	GT.125.22G.04	160	44.4	704.5	586.6	22	2.2	31.2	1480	4	-	15.0	-	20.1
70	GT.125.28G.04	160	44.4	704.5	586.6	28	2.7	39.8	1480	4	-	18.5	-	24.8
71	GT.125.32G.04	160	44.4	704.5	586.6	32	3.1	45.4	1480	4	-	22.0	-	29.5
72	GT.125.40G.04	160	44.4	704.5	586.6	40	3.9	56.8	1480	4	-	30.0	-	40.2
73	GT.125.48G.04	160	44.4	704.5	586.6	48	4.7	68.2	1480	4	-	37.0	-	49.6
74	GT.150.12.5G.04	200	55.6	880.6	733.2	12.5	1.2	17.8	1480	4	-	11.0	-	14.8
75	GT.150.18G.04	200	55.6	880.6	733.2	18	1.8	25.6	1480	4	-	15.0	-	20.1
76	GT.150.22G.04	200	55.6	880.6	733.2	22	2.2	31.2	1480	4	-	18.5	-	24.8
77	GT.150.27.04	200	55.6	880.6	733.2	27	2.6	38.3	1480	4	-	22.0	-	29.5
78	GT.150.33.04	200	55.6	880.6	733.2	33	3.2	46.9	1480	4	-	30.0	-	40.2
79	GT.150.35.04	200	55.6	880.6	733.2	35	3.4	49.7	1480	4.5	-	30.0	-	40.2
80	GT.150.42.04	200	55.6	880.6	733.2	42	4.1	59.6	1480	4.5	-	37.0	-	49.6
81	GT.150.50.04	200	55.6	880.6	733.2	50	4.9	71.0	1480	4.5	-	45.0	-	60.3
82	GT.150.30.5.04	300	83.3	1320.9	1099.8	30.5	3.0	43.3	1480	4.5	-	37.0	-	49.6
83	GT.150.37.04	300	83.3	1320.9	1099.8	37	3.6	52.5	1480	4.5	-	45.0	-	60.3
84	GT.150.24.5.04	400	111.1	1761.2	1466.4	24.5	2.4	34.8	1480	6.5	-	37.0	-	49.6
85	GT.150.30.04	400	111.1	1761.2	1466.4	30	2.9	42.6	1480	6.5	-	45.0	-	60.3
86	GT.200.15Q.04	260	72.2	1144.8	953.2	15	1.5	21.3	1480	4	-	15.0	-	20.1
87	GT.200.18Q.04	280	77.8	1232.8	1026.5	18	1.8	25.6	1480	4	-	18.5	-	24.8
88	GT.200.28Q.04	260	72.2	1144.8	953.2	28	2.7	39.8	1480	4	-	30.0	-	40.2
89	GT.200.33Q.04	260	72.2	1144.8	953.2	33	3.2	46.9	1480	4	-	37.0	-	49.6
90	GT.200.48Q.04	260	72.2	1144.8	953.2	46	4.5	65.3	1480	4	-	55.0	-	73.8
91	GT.200.53Q.04	260	72.2	1144.8	953.2	53	5.2	75.3	1480	4	-	75.0	-	100.6
92	GT.200.16.04	300	83.3	1320.9	1099.8	16	1.6	22.7	1480	4	-	18.5	-	24.8
93	GT.200.19.04	300	83.3	1320.9	1099.8	19	1.9	27.0	1480	4	-	22.0	-	29.5
94	GT.200.24.04	300	83.3	1320.9	1099.8	24	2.4	34.1	1480	4	-	30.0	-	40.2
95	GT.200.31.04	300	83.3	1320.9	1099.8	31	3.0	44.0	1480	4	-	37.0	-	49.6
96	GT.200.36.04	300	83.3	1320.9	1099.8	36	3.5	51.1	1480	4	-	45.0	-	60.3
97	GT.200.47.04	300	83.3	1320.9	1099.8	47	4.6	66.7	1480	4	-	55.0	-	73.8
98	GT.200.53.04	300	83.3	1320.9	1099.8	53	5.2	75.3	1480	4	-	75.0	-	100.6
99	GT.200.14.5.04	400	111.1	1761.2	1466.4	14.5	1.4	20.6	1480	5.5	-	22.0	-	29.5
100	GT.200.20.04	400	111.1	1761.2	1466.4	20	2.0	28.4	1480	5.5	-	30.0	-	40.2
101	GT.200.23.04	400	111.1	1761.2	1466.4	23	2.3	32.7	1480	5.5	-	37.0	-	49.6
102	GT.200.27.04	400	111.1	1761.2	1466.4	27	2.6	38.3	1480	5.5	-	45.0	-	60.3
103	GT.200.30.04	400	111.1	1761.2	1466.4	30	2.9	42.6	1480	5.5	-	45.0	-	60.3
104	GT.200.36.5.04	400	111.1	1761.2	1466.4	36.5	3.6	51.8	1480	5.5	-	55.0	-	73.8
105	GT.200.43.04	400	111.1	1761.2	1466.4	43	4.2	61.1	1480	5.5	-	75.0	-	100.6
106	GT.200.49.04	400	111.1	1761.2	1466.4	49	4.8	69.6	1480	5.5	-	75.0	-	100.6
107	GT.200.21.04	500	138.9	2201.5	1833.0	21	2.1	29.8	1480	5	-	37.0	-	49.6
108	GT.200.26.04	500	138.9	2201.5	1833.0	26	2.5	36.9	1480	5	-	45.0	-	60.3
109	GT.200.32.04	500	138.9	2201.5	1833.0	32	3.1	45.4	1480	5	-	55.0	-	73.8
110	GT.250.16.04	500	138.9	2201.5	1833.0	16	1.6	22.7	1480	5.5	-	30.0	-	40.2
111	GT.250.19.04	500	138.9	2201.5	1833.0	19	1.9	27.0	1480	5.5	-	37.0	-	49.6
112	GT.250.22.04	500	138.9	2201.5	1833.0	22	2.2	31.2	1480	5.5	-	45.0	-	60.3
113	GT.250.29.04	500	138.9	2201.5	1833.0	29	2.8	41.2	1480	5.5	-	55.0	-	73.8
114	GT.250.36.04	500	138.9	2201.5	1833.0	36	3.5	51.1	1480	5.5	-	75.0	-	100.6
115	GT.250.47.04	500	138.9	2201.5	1833.0	47	4.6	66.7	1480	5.5	-	90.0	-	120.7
116	GT.250.56.04	500	138.9	2201.5	1833.0	56	5.5	79.5	1480	5.5	-	110.0	-	147.5
117	GT.250.12.5.04	630	175.0	2773.9	2309.6	12.5	1.2	17.8	1480	5.5	-	30.0	-	40.2
118	GT.250.14.04	630	175.0	2773.9	2309.6	14	1.4	19.9	1480	5.5	-	37.0	-	49.6
119	GT.250.17.04	630	175.0	2773.9	2309.6	17	1.7	24.1	1480	5.5	-	45.0	-	60.3
120	GT.250.20.04	630	175.0	2773.9	2309.6	20	2.0	28.4	1480	5.5	-	55.0	-	73.8
121	GT.250.26.04	630	175.0	2773.9	2309.6	26	2.5	36.9	1480	5.5	-	75.0	-	100.6
122	GT.250.32.04	630	175.0	2773.9	2309.6	32	3.1	45.4	1480	5.5	-	75.0	-	100.6
123	GT.250.39.04	830	230.6	3654.5	3042.8	39	3.8	55.4	1480	5.5	-	90.0	-	120.7
124	GT.250.46.04	630	175.0	2773.9	2309.6	46	4.5	65.3	1480	5.5	-	110.0	-	147.5
125	GT.250.50.04	630	175.0	2773.9	2309.6	50	4.9	71.0	1480	5.5	-	132.0	-	177.0
126	GT.300.15.04	900	250.0	3962.7	3299.4	15	1.5	21.3	1480	5	-	55.0	-	73.8
127	GT.300.20.04	900	250.0	3962.7	3299.4	20	2.0	28.4	1480	5	-	75.0	-	100.6
128	GT.300.25.04	900	250.0	3962.7	3299.4	25	2.5	35.5	1480	5	-	90.0	-	120.7
129	GT.300.30.04	900	250.0	3962.7	3299.4	30	2.9	42.6	1480	5	-	110.0	-	147.5
130	GT.300.35.04	900	250.0	3962.7	3299.4	35	3.4	49.7	1480	5	-	132.0	-	177.0
131	GT.300.44.04	900	250.0	3962.7	3299.4	44	4.3	62.5	1480	5	-	160.0	-	214.6
132	GT.300.55.04	900	250.0	3962.7	3299.4	55	5.4	78.1	1480	5	-	200.0	-	268.2

-Fluid: clean water, ρ≈998 kg/m³;
-Liquid temperature during operation 20ºC;
-Technical Parameter- 50Hz;

For more information, please contact us.

Product video
