EAS Horizontal End-Suction Anti-Corrosive Chemical Pump API 610
- Flow Range: 1.5-1200 m³/h
- Head Range: 5-150 m
- Diameter: DN50-350 mm
- Working Pressure: ≤1.6 MPa
- Materials: Stainless Steel 304, 316, 316L, Duplex Steel 2205
- Support Customization
- Two-Year Warranty
- Global Shipping
- Multiple Payment Methods
Overview – EAS End-Suction Anti-Corrosive Chemical Pump
The EAS Stainless Steel Horizontal end-suction corrosion-resistant Chemical Pump is designed to handle corrosive and aggressive chemicals in various industrial applications. Its construction and material make it suitable for transporting a wide range of chemical liquids safely and efficiently.
Features
- Material: Made from high-grade stainless steel, providing excellent resistance to corrosion and abrasion.
- Design: Horizontal orientation with a single stage and suction optimized for chemical processes.
- Flow Range: Efficiently handles various flow rates depending on the specific model.
- Head Range: Provides a range of head capabilities suitable for diverse applications.
- Temperature Compatibility: Designed to handle various temperatures based on the chemical being pumped.
- Efficiency: Engineered for high efficiency, reducing energy consumption and operational costs.
- Durability: Robust construction ensures a long service life even under demanding conditions.
Applications
- Chemical Processing: Ideal for transporting aggressive chemicals in manufacturing and processing industries.
- Petrochemical Industry: Suitable for handling petrochemical products.
- Pharmaceuticals: Used in the pharmaceutical industry for safe chemical transfer.
- Water Treatment: Applied in chemical dosing and water treatment facilities.
- Food and Beverage: Utilized in processes where stainless steel is required for hygiene and chemical resistance.
Advantages
- Corrosion Resistance: Stainless steel construction resists corrosion from aggressive chemicals.
- High Performance: Designed to maintain high efficiency and reliability.
- Versatility: Suitable for a broad range of chemical applications.
- Maintenance: Features ease of maintenance with modular components.

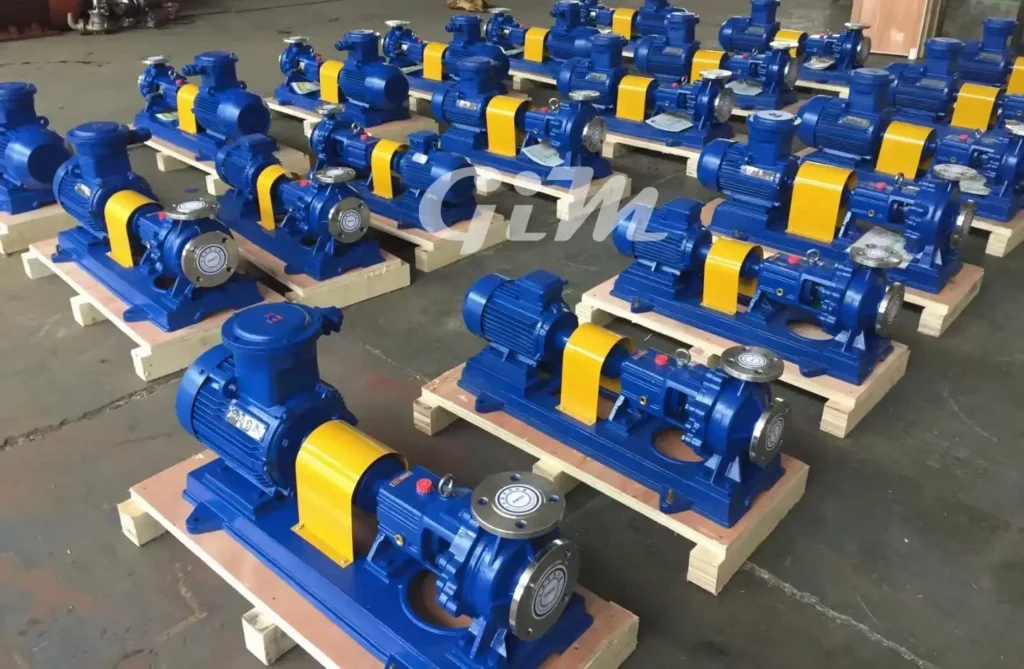

Detailed Photos

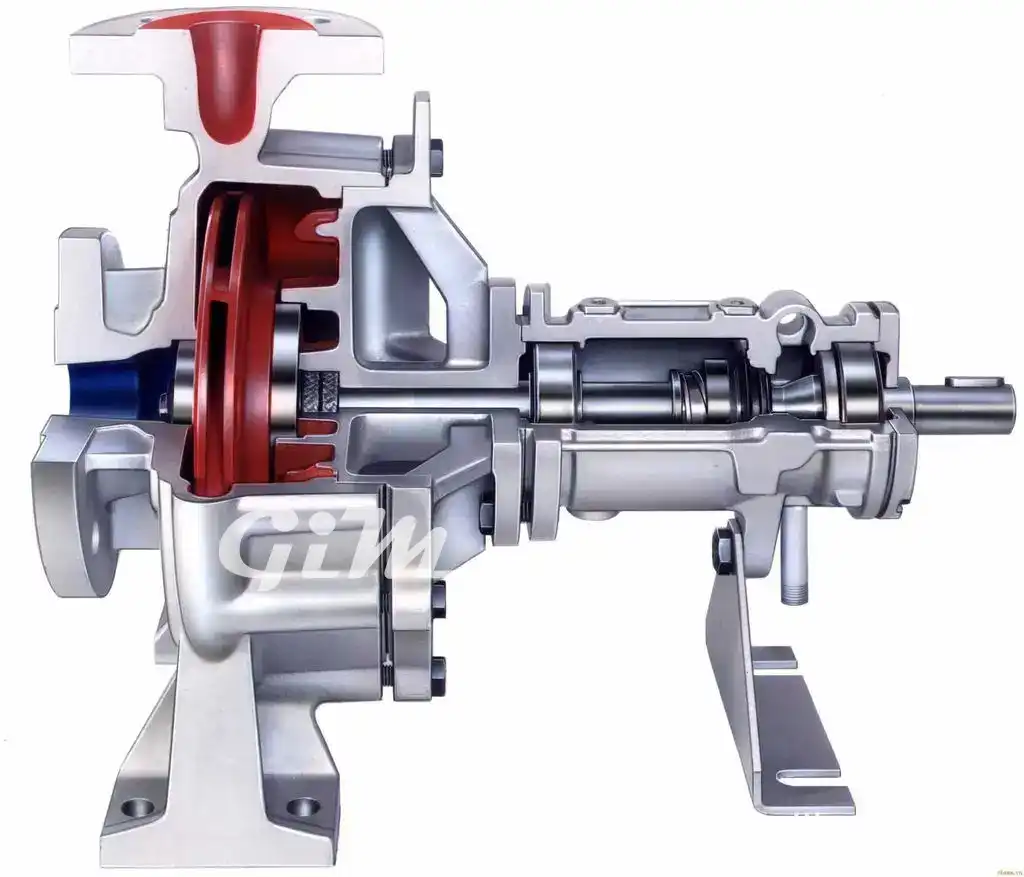

Structure
Performance
EAS Series Corrosion Resistant End-suction Centrifugal Pump
| No. | Model | Capacity (m3 /h) | Capacity (l/s) | Capacity (US.gpm) | Capacity (IMP.gpm) | Head (m) | Pressure (bar) | Pressure (psi) | Speed (rpm) | Power (kW) | Power (hp) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | EAS50.32.125 | 12.5 | 3.5 | 55.0 | 45.8 | 20 | 2.0 | 28.4 | 2900 | 2.2 | 3.0 |
| 2 | EAS50.32.125A | 11.2 | 3.1 | 49.3 | 41.1 | 16 | 1.6 | 22.7 | 2900 | 1.5 | 2.0 |
| 3 | EAS50.32.160 | 12.5 | 3.5 | 55.0 | 45.8 | 32 | 3.1 | 45.4 | 2900 | 3 | 4.0 |
| 4 | EAS50.32.160A | 11.8 | 3.3 | 52.0 | 43.3 | 28 | 2.7 | 39.8 | 2900 | 2.2 | 3.0 |
| 5 | EAS50.32.160B | 10.8 | 3.0 | 47.6 | 39.6 | 24 | 2.4 | 34.1 | 2900 | 1.5 | 2.0 |
| 6 | EAS50.32.200 | 12.5 | 3.5 | 55.0 | 45.8 | 50 | 4.9 | 71.0 | 2900 | 5.5 | 7.4 |
| 7 | EAS50.32.200A | 12 | 3.3 | 52.8 | 44.0 | 45 | 4.4 | 63.9 | 2900 | 4 | 5.4 |
| 8 | EAS50.32.200B | 10.8 | 3.0 | 47.6 | 39.6 | 38 | 3.7 | 54.0 | 2900 | 3 | 4.0 |
| 9 | EAS50.32.250 | 12.5 | 3.5 | 55.0 | 45.8 | 80 | 7.8 | 113.6 | 2900 | 11 | 14.8 |
| 10 | EAS50.32.250A | 11.7 | 3.3 | 51.5 | 42.9 | 70 | 6.9 | 99.4 | 2900 | 7.5 | 10.1 |
| 11 | EAS50.32.250B | 10.8 | 3.0 | 47.6 | 39.6 | 60 | 5.9 | 85.2 | 2900 | 5.5 | 7.4 |
| 12 | EAS65.50.125 | 25 | 6.9 | 110.1 | 91.7 | 20 | 2.0 | 28.4 | 2900 | 3 | 4.0 |
| 13 | EAS65.50.125A | 23.8 | 6.6 | 104.8 | 87.3 | 17.6 | 1.7 | 25.0 | 2900 | 2.2 | 3.0 |
| 14 | EAS65.50.160 | 25 | 6.9 | 110.1 | 91.7 | 32 | 3.1 | 45.4 | 2900 | 5.5 | 7.4 |
| 15 | EAS65.50.160A | 23.4 | 6.5 | 103.0 | 85.8 | 28 | 2.7 | 39.8 | 2900 | 4 | 5.4 |
| 16 | EAS65.50.160B | 21.7 | 6.0 | 95.5 | 79.6 | 24 | 2.4 | 34.1 | 2900 | 3 | 4.0 |
| 17 | EAS65.40.200 | 25 | 6.9 | 110.1 | 91.7 | 50 | 4.9 | 71.0 | 2900 | 7.5 | 10.1 |
| 18 | EAS65.40.200A | 23.4 | 6.5 | 103.0 | 85.8 | 44 | 4.3 | 62.5 | 2900 | 5.5 | 7.4 |
| 19 | EAS65.40.200B | 21 | 5.8 | 92.5 | 77.0 | 35.3 | 3.5 | 50.1 | 2900 | 4 | 5.4 |
| 20 | EAS65.40.250 | 25 | 6.9 | 110.1 | 91.7 | 80 | 7.8 | 113.6 | 2900 | 15 | 20.1 |
| 21 | EAS65.40.250A | 23.4 | 6.5 | 103.0 | 85.8 | 70 | 6.9 | 99.4 | 2900 | 11 | 14.8 |
| 22 | EAS65.40.250B | 21 | 5.8 | 92.5 | 77.0 | 56 | 5.5 | 79.5 | 2900 | 7.5 | 10.1 |
| 23 | EAS65.40.315 | 25 | 6.9 | 110.1 | 91.7 | 125 | 12.3 | 177.5 | 2900 | 30 | 40.2 |
| 24 | EAS65.40.315A | 23.9 | 6.6 | 105.2 | 87.6 | 114 | 11.2 | 161.9 | 2900 | 22 | 29.5 |
| 25 | EAS65.40.315B | 22.7 | 6.3 | 99.9 | 83.2 | 103 | 10.1 | 146.3 | 2900 | 18.5 | 24.8 |
| 26 | EAS80.65.125 | 50 | 13.9 | 220.2 | 183.3 | 20 | 2.0 | 28.4 | 2900 | 5.5 | 7.4 |
| 27 | EAS80.65.125A | 46.7 | 13.0 | 205.6 | 171.2 | 16.6 | 1.6 | 23.6 | 2900 | 4 | 5.4 |
| 28 | EAS80.65.160 | 50 | 13.9 | 220.2 | 183.3 | 32 | 3.1 | 45.4 | 2900 | 7.5 | 10.1 |
| 29 | EAS80.65.160A | 46.8 | 13.0 | 206.1 | 171.6 | 28 | 2.7 | 39.8 | 2900 | 5.5 | 7.4 |
| 30 | EAS80.65.160B | 42 | 11.7 | 184.9 | 154.0 | 22 | 2.2 | 31.2 | 2900 | 4 | 5.4 |
| 31 | EAS80.50.200 | 50 | 13.9 | 220.2 | 183.3 | 50 | 4.9 | 71.0 | 2900 | 15 | 20.1 |
| 32 | EAS80.50.200A | 46.8 | 13.0 | 206.1 | 171.6 | 44 | 4.3 | 62.5 | 2900 | 11 | 14.8 |
| 33 | EAS80.50.200B | 43.3 | 12.0 | 190.6 | 158.7 | 38 | 3.7 | 54.0 | 2900 | 7.5 | 10.1 |
| 34 | EAS80.50.250 | 50 | 13.9 | 220.2 | 183.3 | 80 | 7.8 | 113.6 | 2900 | 22 | 29.5 |
| 35 | EAS80.50.250A | 46.8 | 13.0 | 206.1 | 171.6 | 70 | 6.9 | 99.4 | 2900 | 18.5 | 24.8 |
| 36 | EAS80.50.250B | 43.3 | 12.0 | 190.6 | 158.7 | 60 | 5.9 | 85.2 | 2900 | 15 | 20.1 |
| 37 | EAS80.50.315 | 50 | 13.9 | 220.2 | 183.3 | 125 | 12.3 | 177.5 | 2900 | 45 | 60.3 |
| 38 | EAS80.50.315A | 47.7 | 13.3 | 210.0 | 174.9 | 114 | 11.2 | 161.9 | 2900 | 37 | 49.6 |
| 39 | EAS80.50.315B | 45.4 | 12.6 | 199.9 | 166.4 | 103 | 10.1 | 146.3 | 2900 | 30 | 40.2 |
| 40 | EAS80.50.315C | 42 | 11.7 | 184.9 | 154.0 | 88.5 | 8.7 | 125.7 | 2900 | 22 | 29.5 |
| 41 | EAS100.80.125 | 100 | 27.8 | 440.3 | 366.6 | 20 | 2.0 | 28.4 | 2900 | 11 | 14.8 |
| 42 | EAS100.80.125A | 93.5 | 26.0 | 411.7 | 342.8 | 17 | 1.7 | 24.1 | 2900 | 7.5 | 10.1 |
| 43 | EAS100.80.160 | 100 | 27.8 | 440.3 | 366.6 | 32 | 3.1 | 45.4 | 2900 | 15 | 20.1 |
| 44 | EAS100.80.160A | 93.5 | 26.0 | 411.7 | 342.8 | 28 | 2.7 | 39.8 | 2900 | 11 | 14.8 |
| 45 | EAS100.80.160B | 82.4 | 22.9 | 362.8 | 302.1 | 21.7 | 2.1 | 30.8 | 2900 | 7.5 | 10.1 |
| 46 | EAS100.65.200 | 100 | 27.8 | 440.3 | 366.6 | 50 | 4.9 | 71.0 | 2900 | 22 | 29.5 |
| 47 | EAS100.65.200A | 93.5 | 26.0 | 411.7 | 342.8 | 44 | 4.3 | 62.5 | 2900 | 18.5 | 24.8 |
| 48 | EAS100.65.200B | 86.6 | 24.1 | 381.3 | 317.5 | 41 | 4.0 | 58.2 | 2900 | 15 | 20.1 |
| 49 | EAS100.65.250 | 100 | 27.8 | 440.3 | 366.6 | 80 | 7.8 | 113.6 | 2900 | 37 | 49.6 |
| 50 | EAS100.65.250A | 93.5 | 26.0 | 411.7 | 342.8 | 70 | 6.9 | 99.4 | 2900 | 30 | 40.2 |
| 51 | EAS100.65.250B | 85.3 | 23.7 | 375.6 | 312.7 | 58.2 | 5.7 | 82.6 | 2900 | 22 | 29.5 |
| 52 | EAS100.65.315 | 100 | 27.8 | 440.3 | 366.6 | 125 | 12.3 | 177.5 | 2900 | 75 | 100.6 |
| 53 | EAS100.65.315A | 95.5 | 26.5 | 420.5 | 350.1 | 114 | 11.2 | 161.9 | 2900 | 55 | 73.8 |
| 54 | EAS100.65.315B | 90.8 | 25.2 | 399.8 | 332.9 | 103 | 10.1 | 146.3 | 2900 | 45 | 60.3 |
| 55 | EAS100.65.315C | 85.8 | 23.8 | 377.8 | 314.5 | 92 | 9.0 | 130.6 | 2900 | 37 | 49.6 |
| 56 | EAS125.100.200 | 200 | 55.6 | 880.6 | 733.2 | 50 | 4.9 | 71.0 | 2900 | 45 | 60.3 |
| 57 | EAS125.100.200A | 187 | 51.9 | 823.4 | 685.5 | 44 | 4.3 | 62.5 | 2900 | 37 | 49.6 |
| 58 | EAS125.100.200B | 165 | 45.8 | 726.5 | 604.9 | 34.1 | 3.3 | 48.4 | 2900 | 22 | 29.5 |
| 59 | EAS125.100.250 | 200 | 55.6 | 880.6 | 733.2 | 80 | 7.8 | 113.6 | 2900 | 75 | 100.6 |
| 60 | EAS125.100.250A | 187 | 51.9 | 823.4 | 685.5 | 70 | 6.9 | 99.4 | 2900 | 55 | 73.8 |
| 61 | EAS125.100.250B | 173 | 48.1 | 761.7 | 634.2 | 60 | 5.9 | 85.2 | 2900 | 45 | 60.3 |
| 62 | EAS125.100.250C | 160 | 44.4 | 704.5 | 586.6 | 50 | 4.9 | 71.0 | 2900 | 37 | 49.6 |
| 63 | EAS50.32.125 | 6.3 | 1.8 | 27.7 | 23.1 | 5 | 0.5 | 7.1 | 1450 | 0.55 | 0.7 |
| 64 | EAS50.32.160 | 6.3 | 1.8 | 27.7 | 23.1 | 8 | 0.8 | 11.4 | 1450 | 0.55 | 0.7 |
| 65 | EAS50.32.200 | 6.3 | 1.8 | 27.7 | 23.1 | 12.5 | 1.2 | 17.8 | 1450 | 0.75 | 1.0 |
| 66 | EAS50.32.200A | 6 | 1.7 | 26.4 | 22.0 | 11.5 | 1.1 | 16.3 | 1450 | 0.55 | 0.7 |
| 67 | EAS50.32.250 | 6.3 | 1.8 | 27.7 | 23.1 | 20 | 2.0 | 28.4 | 1450 | 1.5 | 2.0 |
| 68 | EAS50.32.250A | 5.9 | 1.6 | 26.0 | 21.6 | 17.5 | 1.7 | 24.9 | 1450 | 1.1 | 1.5 |
| 69 | EAS65.50.125 | 12.5 | 3.5 | 55.0 | 45.8 | 5 | 0.5 | 7.1 | 1450 | 0.55 | 0.7 |
| 70 | EAS65.50.160 | 12.5 | 3.5 | 55.0 | 45.8 | 8 | 0.8 | 11.4 | 1450 | 0.75 | 1.0 |
| 71 | EAS65.50.160A | 11.7 | 3.3 | 51.5 | 42.9 | 7 | 0.7 | 9.9 | 1450 | 0.55 | 0.7 |
| 72 | EAS65.40.200 | 12.5 | 3.5 | 55.0 | 45.8 | 12.5 | 1.2 | 17.8 | 1450 | 1.1 | 1.5 |
| 73 | EAS65.40.200A | 11.7 | 3.3 | 51.5 | 42.9 | 11 | 1.1 | 15.6 | 1450 | 0.75 | 1.0 |
| 74 | EAS65.40.250 | 12.5 | 3.5 | 55.0 | 45.8 | 20 | 2.0 | 28.4 | 1450 | 2.2 | 3.0 |
| 75 | EAS65.40.315 | 12.5 | 3.5 | 55.0 | 45.8 | 32 | 3.1 | 45.4 | 1450 | 4 | 5.4 |
| 76 | EAS65.40.315A | 11.9 | 3.3 | 52.4 | 43.6 | 28.5 | 2.8 | 40.5 | 1450 | 3 | 4.0 |
| 77 | EAS65.40.315B | 10.8 | 3.0 | 47.6 | 39.6 | 24 | 2.4 | 34.1 | 1450 | 2.2 | 3.0 |
| 78 | EAS80.65.125 | 25 | 6.9 | 110.1 | 91.7 | 5 | 0.5 | 7.1 | 1450 | 0.75 | 1.0 |
| 79 | EAS80.65.125A | 23.4 | 6.5 | 103.0 | 85.8 | 4.3 | 0.4 | 6.1 | 1450 | 0.55 | 0.7 |
| 80 | EAS80.65.160 | 25 | 6.9 | 110.1 | 91.7 | 8 | 0.8 | 11.4 | 1450 | 1.5 | 2.0 |
| 81 | EAS80.65.160A | 23.4 | 6.5 | 103.0 | 85.8 | 7 | 0.7 | 9.9 | 1450 | 1.1 | 1.5 |
| 82 | EAS80.50.200 | 25 | 6.9 | 110.1 | 91.7 | 12.5 | 1.2 | 17.8 | 1450 | 2.2 | 3.0 |
| 83 | EAS80.50.200A | 23.4 | 6.5 | 103.0 | 85.8 | 11 | 1.1 | 15.6 | 1450 | 1.5 | 2.0 |
| 84 | EAS80.50.250 | 25 | 6.9 | 110.1 | 91.7 | 20 | 2.0 | 28.4 | 1450 | 4 | 5.4 |
| 85 | EAS80.50.250A | 23.8 | 6.6 | 104.8 | 87.3 | 17.5 | 1.7 | 24.9 | 1450 | 3 | 4.0 |
| 86 | EAS80.50.315 | 25 | 6.9 | 110.1 | 91.7 | 32 | 3.1 | 45.4 | 1450 | 5.5 | 7.4 |
| 87 | EAS80.50.315A | 23.8 | 6.6 | 104.8 | 87.3 | 28.5 | 2.8 | 40.5 | 1450 | 5.5 | 7.4 |
| 88 | EAS80.50.315B | 22.7 | 6.3 | 99.9 | 83.2 | 25.8 | 2.5 | 36.6 | 1450 | 4 | 5.4 |
| 89 | EAS100.80.125 | 50 | 13.9 | 220.2 | 183.3 | 5 | 0.5 | 7.1 | 1450 | 1.5 | 2.0 |
| 90 | EAS100.80.125A | 46.5 | 12.9 | 204.7 | 170.5 | 4 | 0.4 | 5.7 | 1450 | 1.1 | 1.5 |
| 91 | EAS100.80.160 | 50 | 13.9 | 220.2 | 183.3 | 8 | 0.8 | 11.4 | 1450 | 2.2 | 3.0 |
| 92 | EAS100.80.160A | 46.8 | 13.0 | 206.1 | 171.6 | 7 | 0.7 | 9.9 | 1450 | 1.5 | 2.0 |
| 93 | EAS100.65.200 | 50 | 13.9 | 220.2 | 183.3 | 12.5 | 1.2 | 17.8 | 1450 | 4 | 5.4 |
| 94 | EAS100.65.200A | 46.8 | 13.0 | 206.1 | 171.6 | 11 | 1.1 | 15.6 | 1450 | 3 | 4.0 |
| 95 | EAS100.65.250 | 50 | 13.9 | 220.2 | 183.3 | 20 | 2.0 | 28.4 | 1450 | 5.5 | 7.4 |
| 96 | EAS100.65.250A | 46.8 | 13.0 | 206.1 | 171.6 | 17.5 | 1.7 | 24.9 | 1450 | 4 | 5.4 |
| 97 | EAS100.65.315 | 50 | 13.9 | 220.2 | 183.3 | 32 | 3.1 | 45.4 | 1450 | 11 | 14.8 |
| 98 | EAS100.65.315A | 47.7 | 13.3 | 210.0 | 174.9 | 28.5 | 2.8 | 40.5 | 1450 | 7.5 | 10.1 |
| 99 | EAS100.65.315B | 45.4 | 12.6 | 199.9 | 166.4 | 25.7 | 2.5 | 36.5 | 1450 | 7.5 | 10.1 |
| 100 | EAS100.65.315C | 42.9 | 11.9 | 188.9 | 157.3 | 23.5 | 2.3 | 33.4 | 1450 | 5.5 | 7.4 |
| 101 | EAS125.100.200 | 100 | 27.8 | 440.3 | 366.6 | 12.5 | 1.2 | 17.8 | 1450 | 7.5 | 10.1 |
| 102 | EAS125.100.200A | 93.5 | 26.0 | 411.7 | 342.8 | 11 | 1.1 | 15.6 | 1450 | 5.5 | 7.4 |
| 103 | EAS125.100.250 | 100 | 27.8 | 440.3 | 366.6 | 20 | 2.0 | 28.4 | 1450 | 11 | 14.8 |
| 104 | EAS125.100.250A | 93.5 | 26.0 | 411.7 | 342.8 | 17.5 | 1.7 | 24.9 | 1450 | 7.5 | 10.1 |
| 105 | EAS125.100.250B | 86.5 | 24.0 | 380.9 | 317.1 | 15 | 1.5 | 21.3 | 1450 | 5.5 | 7.4 |
| 106 | EAS125.100.315 | 100 | 27.8 | 440.3 | 366.6 | 32 | 3.1 | 45.4 | 1450 | 18.5 | 24.8 |
| 107 | EAS125.100.315A | 95.5 | 26.5 | 420.5 | 350.1 | 28.5 | 2.8 | 40.5 | 1450 | 15 | 20.1 |
| 108 | EAS125.100.315B | 90.8 | 25.2 | 399.8 | 332.9 | 26.4 | 2.6 | 37.5 | 1450 | 15 | 20.1 |
| 109 | EAS125.100.315C | 85.5 | 23.8 | 376.5 | 313.4 | 23.5 | 2.3 | 33.4 | 1450 | 11 | 14.8 |
| 110 | EAS125.100.400 | 100 | 27.8 | 440.3 | 366.6 | 50 | 4.9 | 71.0 | 1450 | 30 | 40.2 |
| 111 | EAS125.100.400A | 93.6 | 26.0 | 412.1 | 343.1 | 44 | 4.3 | 62.5 | 1450 | 22 | 29.5 |
| 112 | EAS125.100.400B | 88 | 24.4 | 387.5 | 322.6 | 38.4 | 3.8 | 54.5 | 1450 | 18.5 | 24.8 |
| 113 | EAS125.100.400C | 82 | 22.8 | 361.0 | 300.6 | 33 | 3.2 | 46.9 | 1450 | 15 | 20.1 |
| 114 | EAS150.125.250 | 200 | 55.6 | 880.6 | 733.2 | 20 | 2.0 | 28.4 | 1450 | 18.5 | 24.8 |
| 115 | EAS150.125.250A | 187 | 51.9 | 823.4 | 685.5 | 17 | 1.7 | 24.1 | 1450 | 15 | 20.1 |
| 116 | EAS150.125.250B | 173 | 48.1 | 761.7 | 634.2 | 15 | 1.5 | 21.3 | 1450 | 11 | 14.8 |
| 117 | EAS150.125.315 | 200 | 55.6 | 880.6 | 733.2 | 32 | 3.1 | 45.4 | 1450 | 30 | 40.2 |
| 118 | EAS150.125.315A | 187 | 51.9 | 823.4 | 685.5 | 17 | 1.7 | 24.1 | 1450 | 22 | 29.5 |
| 119 | EAS150.125.315B | 173 | 48.1 | 761.7 | 634.2 | 15 | 1.5 | 21.3 | 1450 | 18.5 | 24.8 |
| 120 | EAS150.125.400 | 200 | 55.6 | 880.6 | 733.2 | 50 | 4.9 | 71.0 | 1450 | 45 | 60.3 |
| 121 | EAS150.125.400A | 187 | 51.9 | 823.4 | 685.5 | 44 | 4.3 | 62.5 | 1450 | 37 | 49.6 |
| 122 | EAS150.125.400B | 173 | 48.1 | 761.7 | 634.2 | 38 | 3.7 | 54.0 | 1450 | 30 | 40.2 |
| 123 | EAS200.150.250 | 400 | 111.1 | 1761.2 | 1466.4 | 20 | 2.0 | 28.4 | 1450 | 37 | 49.6 |
| 124 | EAS200.150.250A | 374 | 103.9 | 1646.7 | 1371.1 | 17.5 | 1.7 | 24.9 | 1450 | 30 | 40.2 |
| 125 | EAS200.150.250B | 346 | 96.1 | 1523.4 | 1268.4 | 15 | 1.5 | 21.3 | 1450 | 22 | 29.5 |
| 126 | EAS200.150.315 | 400 | 111.1 | 1761.2 | 1466.4 | 32 | 3.1 | 45.4 | 1450 | 55 | 73.8 |
| 127 | EAS200.150.315A | 374 | 103.9 | 1646.7 | 1371.1 | 28 | 2.7 | 39.8 | 1450 | 45 | 60.3 |
| 128 | EAS200.150.315B | 350 | 97.2 | 1541.1 | 1283.1 | 24 | 2.4 | 34.1 | 1450 | 37 | 49.6 |
| 129 | EAS200.150.315C | 327 | 90.8 | 1439.8 | 1198.8 | 21 | 2.1 | 29.8 | 1450 | 30 | 40.2 |
| 130 | EAS200.150.400 | 400 | 111.1 | 1761.2 | 1466.4 | 50 | 4.9 | 71.0 | 1450 | 90 | 120.7 |
| 131 | EAS200.150.400A | 380 | 105.6 | 1673.1 | 1393.1 | 44.5 | 4.4 | 63.2 | 1450 | 75 | 100.6 |
| 132 | EAS200.150.400B | 340 | 94.5 | 1497.0 | 1246.4 | 38 | 3.7 | 54.0 | 1450 | 55 | 73.8 |
| 133 | EAS200.150.400C | 324 | 90.0 | 1426.6 | 1187.8 | 31 | 3.0 | 44.0 | 1450 | 45 | 60.3 |
| 134 | EAS250.200.300 | 630 | 175.0 | 2773.9 | 2309.6 | 26 | 2.5 | 36.9 | 1450 | 55 | 73.8 |
| 135 | EAS250.200.300A | 560 | 155.6 | 2465.7 | 2053.0 | 21 | 2.1 | 29.8 | 1450 | 45 | 60.3 |
| 136 | EAS250.200.400 | 630 | 175.0 | 2773.9 | 2309.6 | 45 | 4.4 | 63.9 | 1450 | 110 | 147.5 |
| 137 | EAS250.200.400A | 558 | 155.0 | 2456.9 | 2045.6 | 38 | 3.7 | 54.0 | 1450 | 90 | 120.7 |
| 138 | EAS250.200.400B | 550 | 152.8 | 2421.7 | 2016.3 | 32 | 3.1 | 45.4 | 1450 | 75 | 100.6 |
-Liquid temperature during operation 20ºC
-Frequency: 50 Hz
For more information, please contact us.
