BSCP Series Sanitary Centrifugal Pumps Closed Impeller
Technical Specifications
-
Max.Flow:130 m³/h
-
Max.Head:100 m
-
Max.rev:3600 rpm
-
Max.working temperature: 120℃/248℉(CI/P/SIP)
-
Material in contacting with products: SS304/316
-
Other parts: SS304
-
Mechanical seal: SIC/SIC/EPDM(standard)
-
Surface finish: Mirror or satin polish
-
Inlet & Outlet: Connection Clamp (Standard)
- Support Customization
- Two-Year Warranty
- Global Shipping
- Multiple Payment Methods

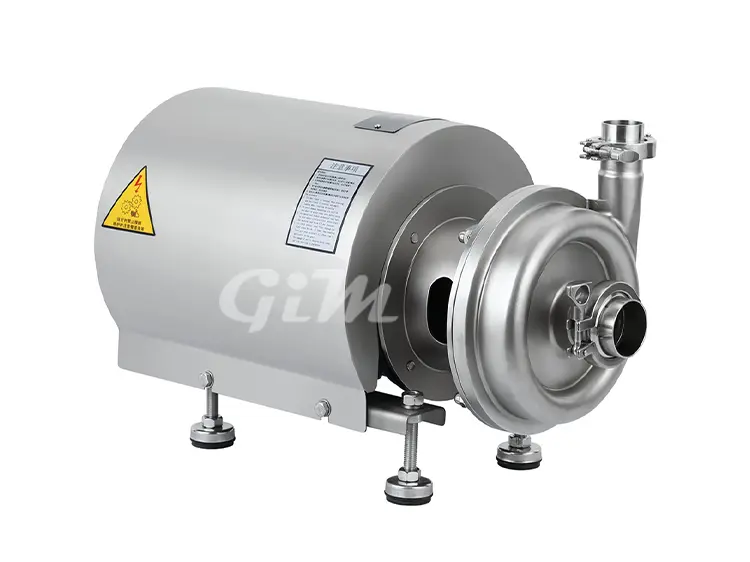

BSCP Sanitary Centrifugal Pump Overview
An ultra-efficient fluid transfer solution tailored for high-standard sanitary applications. Featuring a precision closed-impeller design, the BSCP Series delivers exceptional hydraulic efficiency, low noise, and stable performance—making it the ideal choice for transferring low-viscosity clear liquids, dairy products, and purified water.

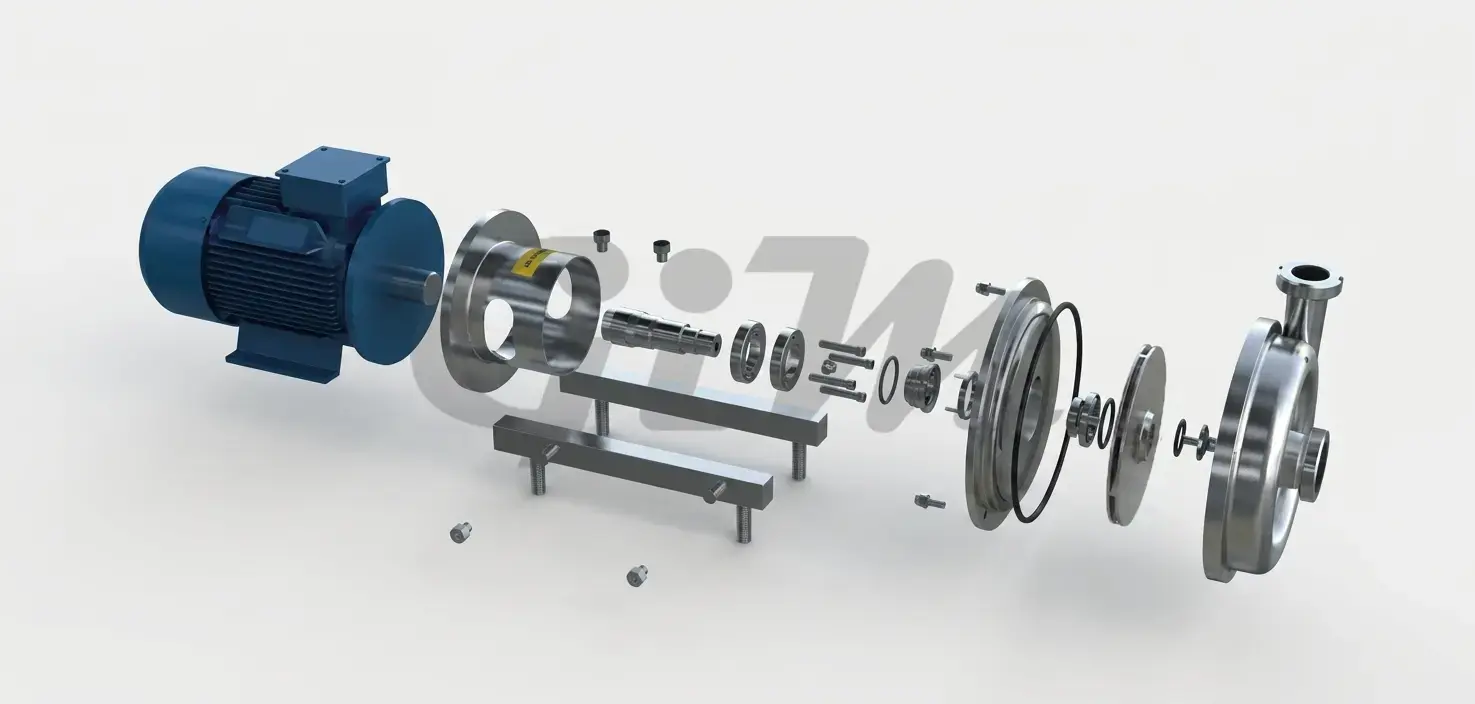

Design and Features
-
The BSCP Series centrifugal pump is designed with a close impeller, widely used in dairies, beverage, and food-processing industries.
-
The correct direction of rotation of sanitary centrifugal pumps is clockwise; even simple reverse rotation is forbidden.
-
The direction of rotation can be viewed from the motor.
Electric Motor
- Motor the IEC EN IE2/IE3/IE4/IE5 , PTC thermistor

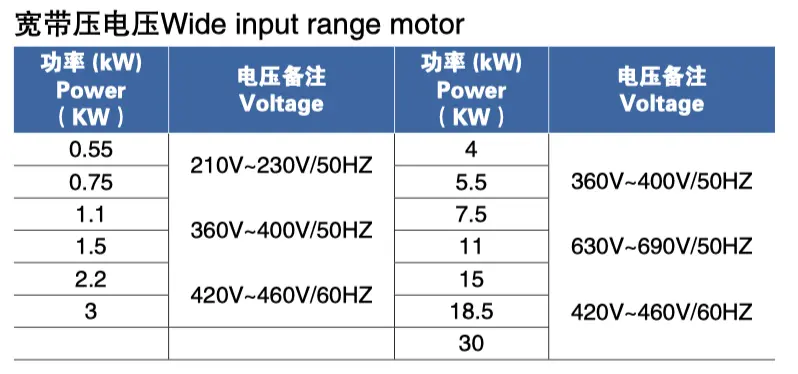

- Wide input range motor
Please contact GIM FLUID for any other voltage or frequency of the motor.

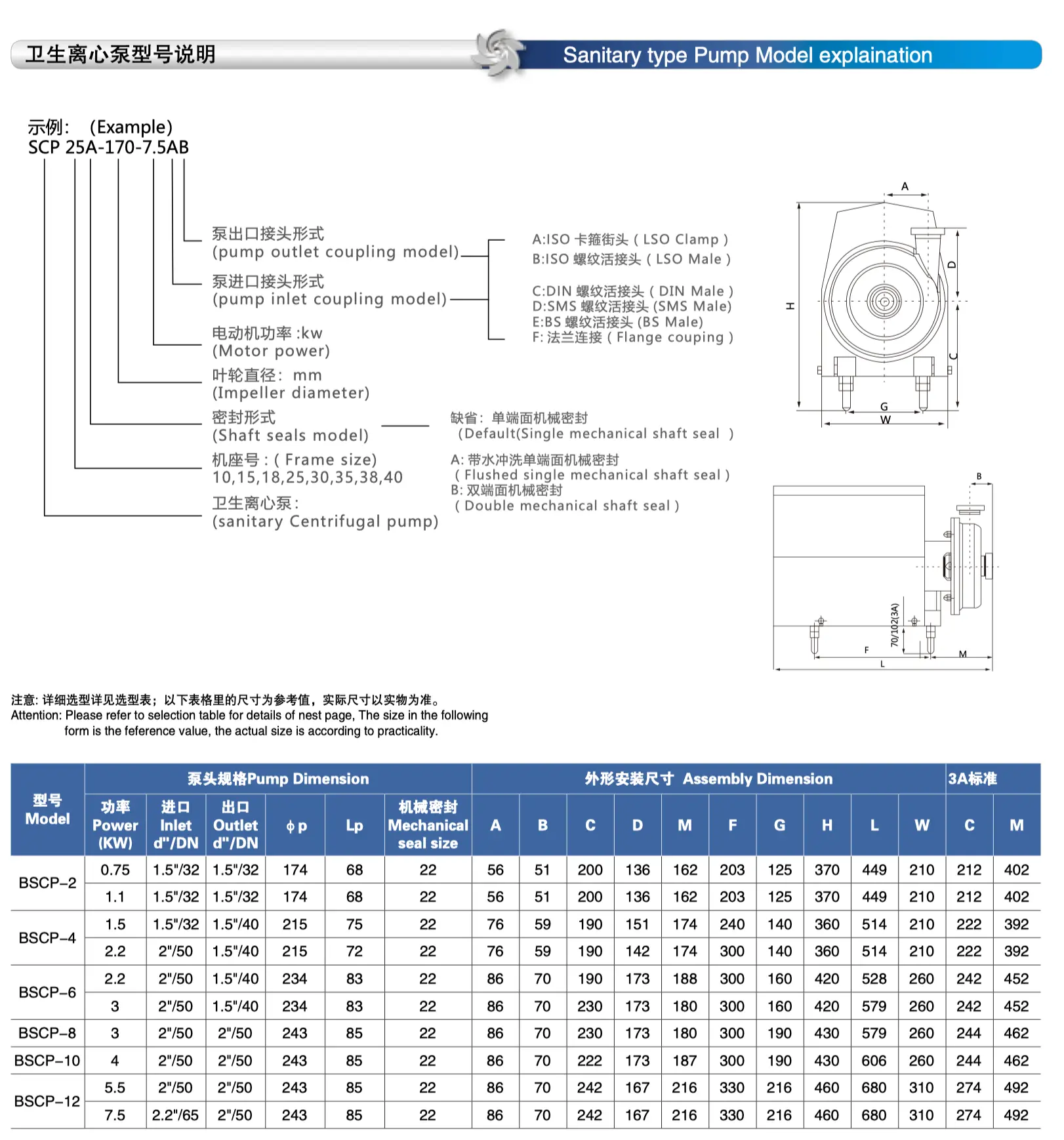

Pump Model Explanation & Dimensions
Attention: Please refer to the selection table for details of the installed page. The size in the following form is the reference value; the actual size is determined according to practical

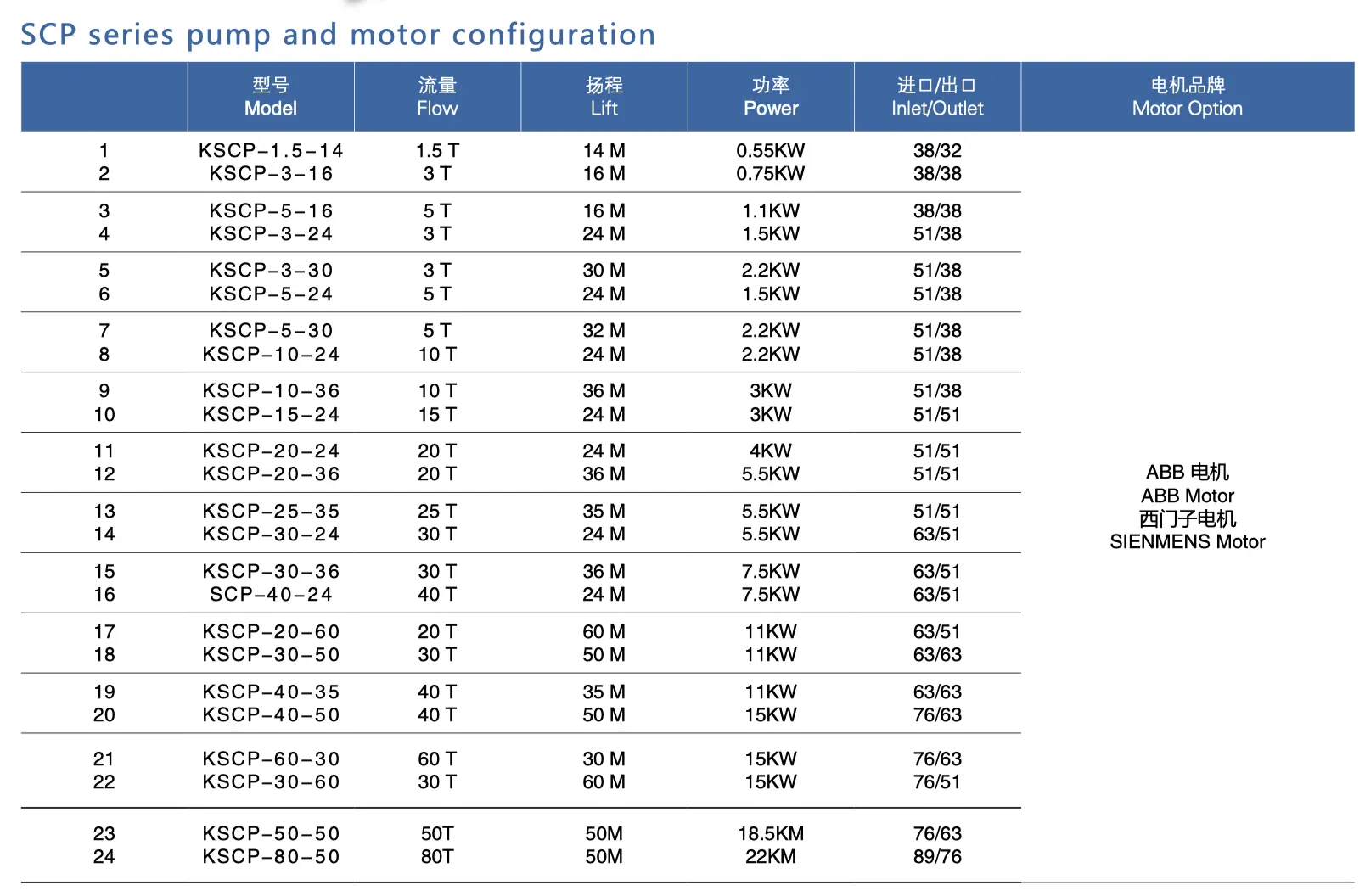

Performance Parameters
-
Low discharge in the pump head: Diaphragm valve/ball valve/butterfly valve
-
Mechanical seal: C/SIC/EPDM
-
Connection way of inlet & outlet: Thread, Weld, Flange
Performance Curve
