ILGB Explosion-Proof centrifugal Oil Pump
- Flow Range: 1.5-1200 m³/h
- Head Range: 5-150 m
- Diameter: DN20-350 mm
- Working Pressure: ≤1.6 MPa
- Explosion Protection Rating: ExdIIBT4/ExdIIBT5/ExdIICT4
- Support Customization
- Two-Year Warranty
- Global Shipping
- Multiple Payment Methods
OVERVIEW – ILGB Explosion-Proof Centrifugal Oil Pump
The ILGB Series Explosion-Proof Centrifugal Oil Pump is designed based on the performance parameters specified by international standard ISO 2858 and national standard JB/T 6878.2-93, combined with our company’s extensive production experience. This pump is an ideal replacement for conventional pumps such as the SG pipeline centrifugal pump, IS centrifugal pump, and D multistage centrifugal pump.
APPLICATION
Explosion-proof centrifugal pumps have a wide range of applications.
- Especially suitable for occasions requiring explosion protection
- Industrial and Urban Water Supply and Drainage
- Water Supply and Pressure Boosting for High-Rise Buildings
- Garden Irrigation
- Firefighting Pressure Boosting
- Long-Distance Water Transport
- Heating, Bathing, and Other Hot and Cold Water Circulation and Pressure Boosting, and Equipment Support
- Petroleum, Chemical, Energy, Metallurgy, Power, and Forestry Industries
- Textile Industry
- Paper Industry
- Food Industry
- Pharmaceutical and Synthetic Fiber Industries
- Oil and Fat Industry
ADVANTAGES
Explosion-Proof centrifugal Pump offer the following advantages:
- Integrated Structure: Compact design with a pump and motor integrated into one unit, offering an aesthetically pleasing appearance and occupying minimal space.
- Long Service Life: Smooth operation with low noise levels and high concentricity of components, contributing to an extended lifespan.
- Stable Operation: The horizontal structure with a shared chassis provides greater stability in high-power applications compared to vertical configurations.
- Excellent Sealing: The shaft seal uses durable materials like hard alloy and silicon carbide, ensuring reliable sealing with no leakage.
- Easy Maintenance: Maintenance is convenient as there’s no need to disassemble the pipeline. Simply remove the pump cover nuts, and the motor and transmission components can be easily inspected and serviced.
- Good Cost-Effectiveness: The direct-drive structure offers high transmission efficiency and relatively low cost.
- High Efficiency and Energy Saving: Equipped with a high-efficiency motor, the pump operates more efficiently, leading to energy savings.

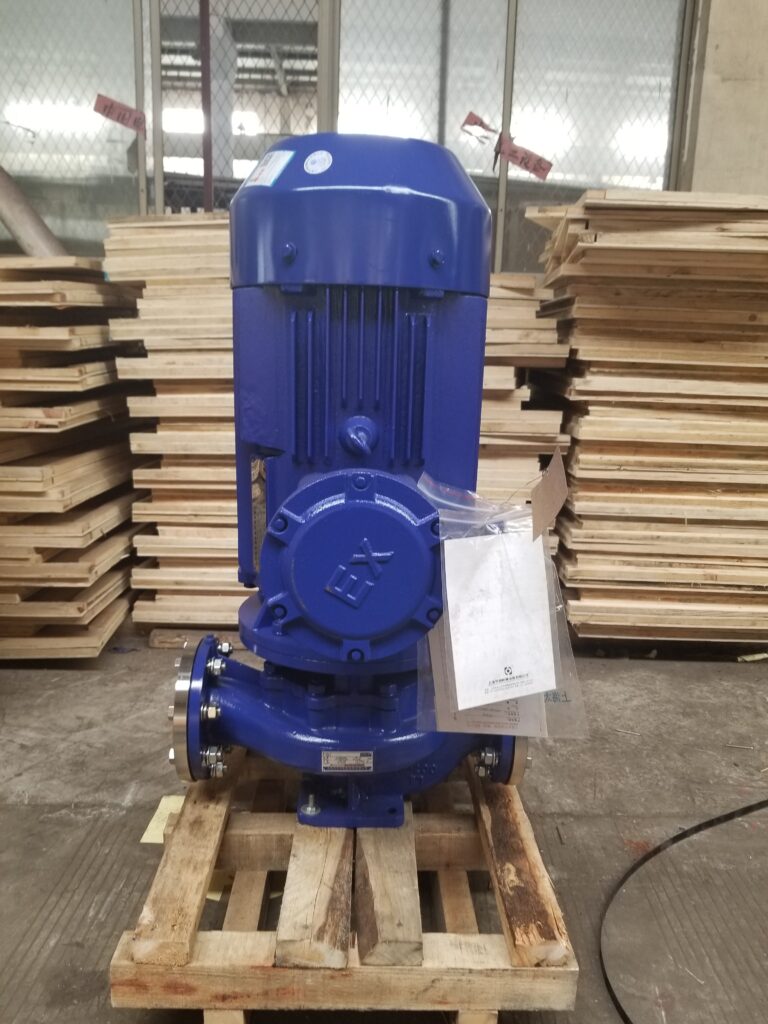

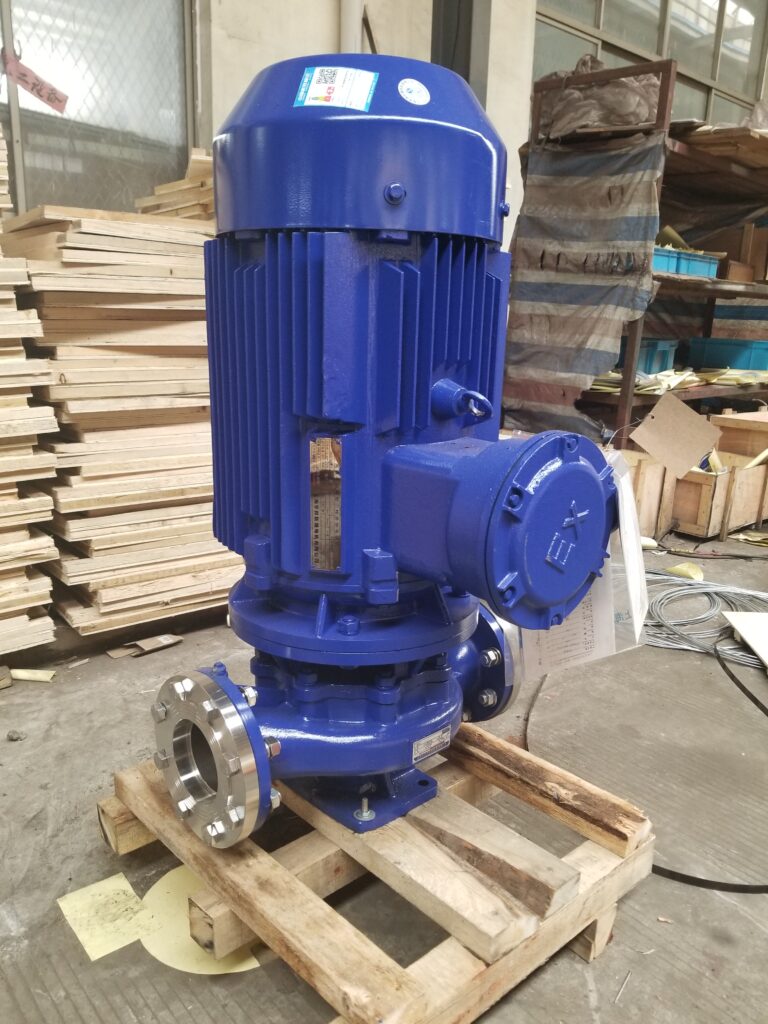

Detailed Photos
Performance Spectrum
Perfomance
ILGB Series Explosion-proof Pipeline Pump
| No. | Model | Rated Flow (m3/h) | Rated Flow (l/s) | Rated Flow (US.gpm) | Rated Flow (IMP.gpm) | Rated Head (m) | Pressure (bar) | Pressure (psi) | Speed (rpm) | Power (kW) | Power (hp) | NPSHr (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | ILGB.0,5.03.02 | 1.5 | 0.4 | 6.6 | 5.5 | 8 | 0.8 | 11.4 | 2900 | 0.18 | 0.2 | 2.3 |
| 2 | ILGB.0,75.110.02 | 2.5 | 0.7 | 11.0 | 9.2 | 15 | 1.5 | 21.3 | 2900 | 0.37 | 0.5 | 2.3 |
| 3 | ILGB.0,75.160.02 | 2.5 | 0.7 | 11.0 | 9.2 | 32 | 3.1 | 45.4 | 2900 | 0.75 | 1.0 | 2.3 |
| 4 | ILGB.01.110.02 | 4 | 1.1 | 17.6 | 14.7 | 15 | 1.5 | 21.3 | 2900 | 0.55 | 0.7 | 2.3 |
| 5 | ILGB.01.125.02 | 4 | 1.1 | 17.6 | 14.7 | 20 | 2.0 | 28.4 | 2900 | 0.75 | 1.0 | 2.3 |
| 6 | ILGB.01.125.A.02 | 3.6 | 1.0 | 15.9 | 13.2 | 16 | 1.6 | 22.7 | 2900 | 0.55 | 0.7 | 2.3 |
| 7 | ILGB.01.160.02 | 4 | 1.1 | 17.6 | 14.7 | 32 | 3.1 | 45.4 | 2900 | 1.5 | 2.0 | 2.3 |
| 8 | ILGB.01.160.A.02 | 3.7 | 1.0 | 16.3 | 13.6 | 28 | 2.7 | 39.8 | 2900 | 1.1 | 1.5 | 2.3 |
| 9 | ILGB.1,25.100.E.02 | 6.3 | 1.8 | 27.7 | 23.1 | 12.5 | 1.2 | 17.8 | 2900 | 0.75 | 1.0 | 2 |
| 10 | ILGB.1,25.125.E.02 | 5 | 1.4 | 22.0 | 18.3 | 20 | 2.0 | 28.4 | 2900 | 1.1 | 1.5 | 2.3 |
| 11 | ILGB.1,25.125.E.A.02 | 4.5 | 1.3 | 19.8 | 16.5 | 16 | 1.6 | 22.7 | 2900 | 0.75 | 1.0 | 2.3 |
| 12 | ILGB.1,25.160.E.A.02 | 6.3 | 1.8 | 27.7 | 23.1 | 32 | 3.1 | 45.4 | 2900 | 2.2 | 3.0 | 2 |
| 13 | ILGB.1,25.200.E.02 | 6.3 | 1.8 | 27.7 | 23.1 | 50 | 4.9 | 71.0 | 2900 | 4 | 5.4 | 2 |
| 14 | ILGB.1,25.200.E.A.02 | 4 | 1.1 | 17.6 | 14.7 | 44 | 4.3 | 62.5 | 2900 | 3 | 4.0 | 2 |
| 15 | ILGB.1,5.100.02 | 6.3 | 1.8 | 27.7 | 23.1 | 12.5 | 1.2 | 17.8 | 2900 | 0.55 | 0.7 | 2.3 |
| 16 | ILGB.1,5.100.A.02 | 5.6 | 1.6 | 24.7 | 20.5 | 10 | 1.0 | 14.2 | 2900 | 0.37 | 0.5 | 2.3 |
| 17 | ILGB.1,5.125.02 | 6.3 | 1.8 | 27.7 | 23.1 | 20 | 2.0 | 28.4 | 2900 | 1.1 | 1.5 | 2.3 |
| 18 | ILGB.1,5.125.A.02 | 5.6 | 1.6 | 24.7 | 20.5 | 16 | 1.6 | 22.7 | 2900 | 0.75 | 1.0 | 2.3 |
| 19 | ILGB.1,5.160.02 | 6.3 | 1.8 | 27.7 | 23.1 | 32 | 3.1 | 45.4 | 2900 | 2.2 | 3.0 | 2.3 |
| 20 | ILGB.1,5.160.A.02 | 5.9 | 1.6 | 26.0 | 21.6 | 28 | 2.7 | 39.8 | 2900 | 1.5 | 2.0 | 2.3 |
| 21 | ILGB.1,5.160.B.02 | 5.2 | 1.4 | 22.9 | 19.1 | 24 | 2.4 | 34.1 | 2900 | 1.1 | 1.5 | 2.3 |
| 22 | ILGB.1,5.200.02 | 6.3 | 1.8 | 27.7 | 23.1 | 50 | 4.9 | 71.0 | 2900 | 4 | 5.4 | 2.3 |
| 23 | ILGB.1,5.200.A.02 | 5.9 | 1.6 | 26.0 | 21.6 | 44 | 4.3 | 62.5 | 2900 | 3 | 4.0 | 2.3 |
| 24 | ILGB.1,5.200.B.02 | 5.3 | 1.5 | 23.3 | 19.4 | 36 | 3.5 | 51.1 | 2900 | 2.2 | 3.0 | 2.3 |
| 25 | ILGB.1,5.250.02 | 6.3 | 1.8 | 27.7 | 23.1 | 80 | 7.8 | 113.6 | 2900 | 7.5 | 10.1 | 2.3 |
| 26 | ILGB.1,5.250.A.02 | 5.9 | 1.6 | 26.0 | 21.6 | 70 | 6.9 | 99.4 | 2900 | 5.5 | 7.4 | 2.3 |
| 27 | ILGB.1,5.250.B.02 | 5.5 | 1.5 | 24.2 | 20.2 | 60 | 5.9 | 85.2 | 2900 | 4 | 5.4 | 2.3 |
| 28 | ILGB.1,5.100.E.02 | 12.5 | 3.5 | 55.0 | 45.8 | 12.5 | 1.2 | 17.8 | 2900 | 1.1 | 1.5 | 2.3 |
| 29 | ILGB.1,5.100.E.A.02 | 11 | 3.1 | 48.4 | 40.3 | 10 | 1.0 | 14.2 | 2900 | 0.75 | 1.0 | 2.3 |
| 30 | ILGB.1,5.125.E.02 | 12.5 | 3.5 | 55.0 | 45.8 | 20 | 2.0 | 28.4 | 2900 | 1.5 | 2.0 | 2.3 |
| 31 | ILGB.1,5.125.E.A.02 | 11 | 3.1 | 48.4 | 40.3 | 16 | 1.6 | 22.7 | 2900 | 1.1 | 1.5 | 2.3 |
| 32 | ILGB.1,5.160.E.02 | 12.5 | 3.5 | 55.0 | 45.8 | 32 | 3.1 | 45.4 | 2900 | 3 | 4.0 | 2.3 |
| 33 | ILGB.1,5.160.E.A.02 | 11.7 | 3.3 | 51.5 | 42.9 | 28 | 2.7 | 39.8 | 2900 | 2.2 | 3.0 | 2.3 |
| 34 | ILGB.1,5.160.E.B.02 | 10.4 | 2.9 | 45.8 | 38.1 | 22 | 2.2 | 31.2 | 2900 | 1.5 | 2.0 | 2.3 |
| 35 | ILGB.1,5.200.E.02 | 12.5 | 3.5 | 55.0 | 45.8 | 50 | 4.9 | 71.0 | 2900 | 5.5 | 7.4 | 2.3 |
| 36 | ILGB.1,5.200.E.A.02 | 11.7 | 3.3 | 51.5 | 42.9 | 44 | 4.3 | 62.5 | 2900 | 4 | 5.4 | 2.3 |
| 37 | ILGB.1,5.200.E.B.02 | 10.6 | 2.9 | 46.7 | 38.9 | 36 | 3.5 | 51.1 | 2900 | 3 | 4.0 | 2.3 |
| 38 | ILGB.1,5.250.E.02 | 12.5 | 3.5 | 55.0 | 45.8 | 80 | 7.8 | 113.6 | 2900 | 11 | 14.8 | 2.3 |
| 39 | ILGB.1,5.250.E.A.02 | 11.6 | 3.2 | 51.1 | 42.5 | 70 | 6.9 | 99.4 | 2900 | 7.5 | 10.1 | 2.3 |
| 40 | ILGB.1,5.250.E.B.02 | 10.8 | 3.0 | 47.6 | 39.6 | 60 | 5.9 | 85.2 | 2900 | 7.5 | 10.1 | 2.3 |
| 41 | ILGB.1,5.250.E.C.02 | 10 | 2.8 | 44.0 | 36.7 | 52 | 5.1 | 73.8 | 2900 | 5.5 | 7.4 | 2.3 |
| 42 | ILGB.02.100.02 | 12.5 | 3.5 | 55.0 | 45.8 | 12.5 | 1.2 | 17.8 | 2900 | 1.1 | 1.5 | 2.3 |
| 43 | ILGB.02.100.A.02 | 11 | 3.1 | 48.4 | 40.3 | 10 | 1.0 | 14.2 | 2900 | 0.75 | 1.0 | 2.3 |
| 44 | ILGB.02.125.02 | 12.5 | 3.5 | 55.0 | 45.8 | 20 | 2.0 | 28.4 | 2900 | 1.5 | 2.0 | 2.3 |
| 45 | ILGB.02.125.A.02 | 11 | 3.1 | 48.4 | 40.3 | 16 | 1.6 | 22.7 | 2900 | 1.1 | 1.5 | 2.3 |
| 46 | ILGB.02.160.02 | 12.5 | 3.5 | 55.0 | 45.8 | 32 | 3.1 | 45.4 | 2900 | 3 | 4.0 | 2.3 |
| 47 | ILGB.02.160.A.02 | 11.7 | 3.3 | 51.5 | 42.9 | 28 | 2.7 | 39.8 | 2900 | 2.2 | 3.0 | 2.3 |
| 48 | ILGB.02.160.B.02 | 10.4 | 2.9 | 45.8 | 38.1 | 22 | 2.2 | 31.2 | 2900 | 1.5 | 2.0 | 2.3 |
| 49 | ILGB.02.200.02 | 12.5 | 3.5 | 55.0 | 45.8 | 50 | 4.9 | 71.0 | 2900 | 5.5 | 7.4 | 2.3 |
| 50 | ILGB.02.200.A.02 | 11.7 | 3.3 | 51.5 | 42.9 | 44 | 4.3 | 62.5 | 2900 | 4 | 5.4 | 2.3 |
| 51 | ILGB.02.200.B.02 | 10.6 | 2.9 | 46.7 | 38.9 | 36 | 3.5 | 51.1 | 2900 | 3 | 4.0 | 2.3 |
| 52 | ILGB.02.250.02 | 12.5 | 3.5 | 55.0 | 45.8 | 80 | 7.8 | 113.6 | 2900 | 11 | 14.8 | 2.3 |
| 53 | ILGB.02.250.A.02 | 11.6 | 3.2 | 51.1 | 42.5 | 70 | 6.9 | 99.4 | 2900 | 7.5 | 10.1 | 2.3 |
| 54 | ILGB.02.250.B.02 | 10.8 | 3.0 | 47.6 | 39.6 | 60 | 5.9 | 85.2 | 2900 | 7.5 | 10.1 | 2.3 |
| 55 | ILGB.02.250.C.02 | 10 | 2.8 | 44.0 | 36.7 | 52 | 5.1 | 73.8 | 2900 | 5.5 | 7.4 | 2.3 |
| 56 | ILGB.02.100.E.02 | 25 | 6.9 | 110.1 | 91.7 | 12.5 | 1.2 | 17.8 | 2900 | 1.5 | 2.0 | 2.5 |
| 57 | ILGB.02.100.E.A.02 | 22.3 | 6.2 | 98.2 | 81.8 | 10 | 1.0 | 14.2 | 2900 | 1.1 | 1.5 | 2.5 |
| 58 | ILGB.02.125.E.02 | 25 | 6.9 | 110.1 | 91.7 | 20 | 2.0 | 28.4 | 2900 | 3 | 4.0 | 2.5 |
| 59 | ILGB.02.125.E.A.02 | 22.3 | 6.2 | 98.2 | 81.8 | 16 | 1.6 | 22.7 | 2900 | 2.2 | 3.0 | 2.5 |
| 60 | ILGB.02.160.E.02 | 25 | 6.9 | 110.1 | 91.7 | 32 | 3.1 | 45.4 | 2900 | 4 | 5.4 | 2.5 |
| 61 | ILGB.02.160.E.A.02 | 23.4 | 6.5 | 103.0 | 85.8 | 28 | 2.7 | 39.8 | 2900 | 4 | 5.4 | 2.5 |
| 62 | ILGB.02.160.E.B.02 | 21.6 | 6.0 | 95.1 | 79.2 | 24 | 2.4 | 34.1 | 2900 | 3 | 4.0 | 2.5 |
| 63 | ILGB.02.200.E.02 | 25 | 6.9 | 110.1 | 91.7 | 50 | 4.9 | 71.0 | 2900 | 7.5 | 10.1 | 2.5 |
| 64 | ILGB.02.200.E.A.02 | 23.5 | 6.5 | 103.5 | 86.2 | 44 | 4.3 | 62.5 | 2900 | 7.5 | 10.1 | 2.5 |
| 65 | ILGB.02.200.E.B.02 | 21.8 | 6.1 | 96.0 | 79.9 | 38 | 3.7 | 54.0 | 2900 | 5.5 | 7.4 | 2.5 |
| 66 | ILGB.02.250.E.02 | 25 | 6.9 | 110.1 | 91.7 | 80 | 7.8 | 113.6 | 2900 | 15 | 20.1 | 2.5 |
| 67 | ILGB.02.250.E.A.02 | 23.5 | 6.5 | 103.5 | 86.2 | 70 | 6.9 | 99.4 | 2900 | 11 | 14.8 | 2.5 |
| 68 | ILGB.02.250.E.B.02 | 21.6 | 6.0 | 95.1 | 79.2 | 60 | 5.9 | 85.2 | 2900 | 11 | 14.8 | 2.5 |
| 69 | ILGB.02.315.E.02 | 25 | 6.9 | 110.1 | 91.7 | 125 | 12.3 | 177.5 | 2900 | 30 | 40.2 | 2.5 |
| 70 | ILGB.02.315.E.A.02 | 23.7 | 6.6 | 104.4 | 86.9 | 113 | 11.1 | 160.5 | 2900 | 22 | 29.5 | 2.5 |
| 71 | ILGB.02.315.E.B.02 | 22.5 | 6.3 | 99.1 | 82.5 | 101 | 9.9 | 143.4 | 2900 | 18.5 | 24.8 | 2.5 |
| 72 | ILGB.02.315.E.C.02 | 20.6 | 5.7 | 90.7 | 75.5 | 85 | 8.3 | 120.7 | 2900 | 15 | 20.1 | 2.5 |
| 73 | ILGB.2,5.100.02 | 25 | 6.9 | 110.1 | 91.7 | 12.5 | 1.2 | 17.8 | 2900 | 1.5 | 2.0 | 2.5 |
| 74 | ILGB.2,5.100.A.02 | 22.3 | 6.2 | 98.2 | 81.8 | 10 | 1.0 | 14.2 | 2900 | 1.1 | 1.5 | 2.5 |
| 75 | ILGB.2,5.125.02 | 25 | 6.9 | 110.1 | 91.7 | 20 | 2.0 | 28.4 | 2900 | 3 | 4.0 | 2.5 |
| 76 | ILGB.2,5.125.A.02 | 22.3 | 6.2 | 98.2 | 81.8 | 16 | 1.6 | 22.7 | 2900 | 2.2 | 3.0 | 2.5 |
| 77 | ILGB.2,5.160.02 | 25 | 6.9 | 110.1 | 91.7 | 32 | 3.1 | 45.4 | 2900 | 4 | 5.4 | 2.5 |
| 78 | ILGB.2,5.160.A.02 | 23.4 | 6.5 | 103.0 | 85.8 | 28 | 2.7 | 39.8 | 2900 | 4 | 5.4 | 2.5 |
| 79 | ILGB.2,5.160.B.02 | 21.6 | 6.0 | 95.1 | 79.2 | 24 | 2.4 | 34.1 | 2900 | 3 | 4.0 | 2.5 |
| 80 | ILGB.2,5.200.02 | 25 | 6.9 | 110.1 | 91.7 | 50 | 4.9 | 71.0 | 2900 | 7.5 | 10.1 | 2.5 |
| 81 | ILGB.2,5.200.A.02 | 23.5 | 6.5 | 103.5 | 86.2 | 44 | 4.3 | 62.5 | 2900 | 7.5 | 10.1 | 2.5 |
| 82 | ILGB.2,5.200.B.02 | 21.8 | 6.1 | 96.0 | 79.9 | 38 | 3.7 | 54.0 | 2900 | 5.5 | 7.4 | 2.5 |
| 83 | ILGB.2,5.250.02 | 25 | 6.9 | 110.1 | 91.7 | 80 | 7.8 | 113.6 | 2900 | 15 | 20.1 | 2.5 |
| 84 | ILGB.2,5.250.A.02 | 23.4 | 6.5 | 103.0 | 85.8 | 70 | 6.9 | 99.4 | 2900 | 11 | 14.8 | 2.5 |
| 85 | ILGB.2,5.250.B.02 | 21.6 | 6.0 | 95.1 | 79.2 | 60 | 5.9 | 85.2 | 2900 | 11 | 14.8 | 2.5 |
| 86 | ILGB.2,5.315.02 | 25 | 6.9 | 110.1 | 91.7 | 125 | 12.3 | 177.5 | 2900 | 30 | 40.2 | 2.5 |
| 87 | ILGB.2,5.315.A.02 | 23.7 | 6.6 | 104.4 | 86.9 | 113 | 11.1 | 160.5 | 2900 | 22 | 29.5 | 2.5 |
| 88 | ILGB.2,5.315.B.02 | 22.5 | 6.3 | 99.1 | 82.5 | 101 | 9.9 | 143.4 | 2900 | 18.5 | 24.8 | 2.5 |
| 89 | ILGB.2,5.315.C.02 | 20.6 | 5.7 | 90.7 | 75.5 | 85 | 8.3 | 120.7 | 2900 | 15 | 20.1 | 2.5 |
| 90 | ILGB.2,5.100.E.02 | 50 | 13.9 | 220.2 | 183.3 | 12.5 | 1.2 | 17.8 | 2900 | 3 | 4.0 | 3 |
| 91 | ILGB.2,5.100.E.A.02 | 44.7 | 12.4 | 196.8 | 163.9 | 10 | 1.0 | 14.2 | 2900 | 2.2 | 3.0 | 3 |
| 92 | ILGB.2,5.125.E.02 | 50 | 13.9 | 220.2 | 183.3 | 20 | 2.0 | 28.4 | 2900 | 5.5 | 7.4 | 3 |
| 93 | ILGB.2,5.125.E.A.02 | 45 | 12.5 | 198.1 | 165.0 | 16 | 1.6 | 22.7 | 2900 | 4 | 5.4 | 3 |
| 94 | ILGB.2,5.160.E.02 | 50 | 13.9 | 220.2 | 183.3 | 32 | 3.1 | 45.4 | 2900 | 7.5 | 10.1 | 3 |
| 95 | ILGB.2,5.160.E.A.02 | 46.7 | 13.0 | 205.6 | 171.2 | 28 | 2.7 | 39.8 | 2900 | 7.5 | 10.1 | 3 |
| 96 | ILGB.2,5.160.E.B.02 | 43.3 | 12.0 | 190.6 | 158.7 | 24 | 2.4 | 34.1 | 2900 | 5.5 | 7.4 | 3 |
| 97 | ILGB.2,5.200.E.02 | 50 | 13.9 | 220.2 | 183.3 | 50 | 4.9 | 71.0 | 2900 | 15 | 20.1 | 3 |
| 98 | ILGB.2,5.200.E.A.02 | 47 | 13.1 | 206.9 | 172.3 | 44 | 4.3 | 62.5 | 2900 | 11 | 14.8 | 3 |
| 99 | ILGB.2,5.200.E.B.02 | 43.5 | 12.1 | 191.5 | 159.5 | 38 | 3.7 | 54.0 | 2900 | 7.5 | 10.1 | 3 |
| 100 | ILGB.2,5.250.E.02 | 50 | 13.9 | 220.2 | 183.3 | 80 | 7.8 | 113.6 | 2900 | 22 | 29.5 | 3 |
| 101 | ILGB.2,5.250.E.A.02 | 46.7 | 13.0 | 205.6 | 171.2 | 70 | 6.9 | 99.4 | 2900 | 18.5 | 24.8 | 3 |
| 102 | ILGB.2,5.250.E.B.02 | 43.3 | 12.0 | 190.6 | 158.7 | 60 | 5.9 | 85.2 | 2900 | 15 | 20.1 | 3 |
| 103 | ILGB.2,5.315.E.02 | 50 | 13.9 | 220.2 | 183.3 | 125 | 12.3 | 177.5 | 2900 | 37 | 49.6 | 3 |
| 104 | ILGB.2,5.315.E.A.02 | 46.5 | 12.9 | 204.7 | 170.5 | 110 | 10.8 | 156.2 | 2900 | 30 | 40.2 | 3 |
| 105 | ILGB.2,5.315.E.B.02 | 44.5 | 12.4 | 195.9 | 163.1 | 100 | 9.8 | 142.0 | 2900 | 30 | 40.2 | 3 |
| 106 | ILGB.2,5.315.E.C.02 | 41 | 11.4 | 180.5 | 150.3 | 85 | 8.3 | 120.7 | 2900 | 22 | 29.5 | 3 |
| 107 | ILGB.03.100.02 | 50 | 13.9 | 220.2 | 183.3 | 12.5 | 1.2 | 17.8 | 2900 | 3 | 4.0 | 3 |
| 108 | ILGB.03.100.A.02 | 44.7 | 12.4 | 196.8 | 163.9 | 10 | 1.0 | 14.2 | 2900 | 2.2 | 3.0 | 3 |
| 109 | ILGB.03.125.02 | 50 | 13.9 | 220.2 | 183.3 | 20 | 2.0 | 28.4 | 2900 | 5.5 | 7.4 | 3 |
| 110 | ILGB.03.125.A.02 | 45 | 12.5 | 198.1 | 165.0 | 16 | 1.6 | 22.7 | 2900 | 4 | 5.4 | 3 |
| 111 | ILGB.03.160.02 | 50 | 13.9 | 220.2 | 183.3 | 32 | 3.1 | 45.4 | 2900 | 7.5 | 10.1 | 3 |
| 112 | ILGB.03.160.A.02 | 46.7 | 13.0 | 205.6 | 171.2 | 28 | 2.7 | 39.8 | 2900 | 7.5 | 10.1 | 3 |
| 113 | ILGB.03.160.B.02 | 43.3 | 12.0 | 190.6 | 158.7 | 24 | 2.4 | 34.1 | 2900 | 5.5 | 7.4 | 3 |
| 114 | ILGB.03.200.02 | 50 | 13.9 | 220.2 | 183.3 | 50 | 4.9 | 71.0 | 2900 | 15 | 20.1 | 3 |
| 115 | ILGB.03.200.A.02 | 47 | 13.1 | 206.9 | 172.3 | 44 | 4.3 | 62.5 | 2900 | 11 | 14.8 | 3 |
| 116 | ILGB.03.200.B.02 | 43.5 | 12.1 | 191.5 | 159.5 | 38 | 3.7 | 54.0 | 2900 | 7.5 | 10.1 | 3 |
| 117 | ILGB.03.250.02 | 50 | 13.9 | 220.2 | 183.3 | 80 | 7.8 | 113.6 | 2900 | 22 | 29.5 | 3 |
| 118 | ILGB.03.250.A.02 | 46.7 | 13.0 | 205.6 | 171.2 | 70 | 6.9 | 99.4 | 2900 | 18.5 | 24.8 | 3 |
| 119 | ILGB.03.250.B.02 | 43.3 | 12.0 | 190.6 | 158.7 | 60 | 5.9 | 85.2 | 2900 | 15 | 20.1 | 3 |
| 120 | ILGB.03.315.02 | 50 | 13.9 | 220.2 | 183.3 | 125 | 12.3 | 177.5 | 2900 | 37 | 49.6 | 3 |
| 121 | ILGB.03.315.A.02 | 46.5 | 12.9 | 204.7 | 170.5 | 110 | 10.8 | 156.2 | 2900 | 30 | 40.2 | 3 |
| 122 | ILGB.03.315.B.02 | 44.5 | 12.4 | 195.9 | 163.1 | 100 | 9.8 | 142.0 | 2900 | 30 | 40.2 | 3 |
| 123 | ILGB.03.315.C.02 | 41 | 11.4 | 180.5 | 150.3 | 85 | 8.3 | 120.7 | 2900 | 22 | 29.5 | 3 |
| 124 | ILGB.03.350.02 | 50 | 13.9 | 220.2 | 183.3 | 150 | 14.7 | 213.0 | 2900 | 55 | 73.8 | 3 |
| 125 | ILGB.03.350.A.02 | 44.5 | 12.4 | 195.9 | 163.1 | 142 | 13.9 | 201.6 | 2900 | 45 | 60.3 | 3 |
| 126 | ILGB.03.350.02 | 41 | 11.4 | 180.5 | 150.3 | 135 | 13.2 | 191.7 | 2900 | 3.7 | 5.0 | 3 |
| 127 | ILGB.03.100.E.02 | 100 | 27.8 | 440.3 | 366.6 | 12.5 | 1.2 | 17.8 | 2900 | 5.5 | 7.4 | 4.5 |
| 128 | ILGB.03.100.E.A.02 | 89 | 24.7 | 391.9 | 326.3 | 10 | 1.0 | 14.2 | 2900 | 4 | 5.4 | 4.5 |
| 129 | ILGB.03.125.E.02 | 100 | 27.8 | 440.3 | 366.6 | 20 | 2.0 | 28.4 | 2900 | 11 | 14.8 | 4.5 |
| 130 | ILGB.03.125.E.A.02 | 89 | 24.7 | 391.9 | 326.3 | 16 | 1.6 | 22.7 | 2900 | 7.5 | 10.1 | 4.5 |
| 131 | ILGB.03.160.E.02 | 100 | 27.8 | 440.3 | 366.6 | 32 | 3.1 | 45.4 | 2900 | 15 | 20.1 | 4.5 |
| 132 | ILGB.03.160.E.A.02 | 93.5 | 26.0 | 411.7 | 342.8 | 28 | 2.7 | 39.8 | 2900 | 11 | 14.8 | 4.5 |
| 133 | ILGB.03.160.E.B.02 | 86.6 | 24.1 | 381.3 | 317.5 | 24 | 2.4 | 34.1 | 2900 | 11 | 14.8 | 4.5 |
| 134 | ILGB.03.200.E.02 | 100 | 27.8 | 440.3 | 366.6 | 50 | 4.9 | 71.0 | 2900 | 22 | 29.5 | 4 |
| 135 | ILGB.03.200.E.A.02 | 93.5 | 26.0 | 411.7 | 342.8 | 44 | 4.3 | 62.5 | 2900 | 18.5 | 24.8 | 4 |
| 136 | ILGB.03.200.E.B.02 | 87 | 24.2 | 383.1 | 318.9 | 38 | 3.7 | 54.0 | 2900 | 15 | 20.1 | 4 |
| 137 | ILGB.03.250.E.02 | 100 | 27.8 | 440.3 | 366.6 | 80 | 7.8 | 113.6 | 2900 | 37 | 49.6 | 4 |
| 138 | ILGB.03.250.E.A.02 | 93.5 | 26.0 | 411.7 | 342.8 | 70 | 6.9 | 99.4 | 2900 | 30 | 40.2 | 4 |
| 139 | ILGB.03.250.E.B.02 | 87 | 24.2 | 383.1 | 318.9 | 60 | 5.9 | 85.2 | 2900 | 30 | 40.2 | 4 |
| 140 | ILGB.03.315.E.02 | 100 | 27.8 | 440.3 | 366.6 | 125 | 12.3 | 177.5 | 2900 | 75 | 100.6 | 4 |
| 141 | ILGB.03.315.E.A.02 | 95 | 26.4 | 418.3 | 348.3 | 113 | 11.1 | 160.5 | 2900 | 55 | 73.8 | 4 |
| 142 | ILGB.03.315.E.B.02 | 90 | 25.0 | 396.3 | 329.9 | 101 | 9.9 | 143.4 | 2900 | 45 | 60.3 | 4 |
| 143 | ILGB.03.315.E.C.02 | 82 | 22.8 | 361.0 | 300.6 | 85 | 8.3 | 120.7 | 2900 | 37 | 49.6 | 4 |
| 144 | ILGB.04.100.02 | 100 | 27.8 | 440.3 | 366.6 | 12.5 | 1.2 | 17.8 | 2900 | 5.5 | 7.4 | 4.5 |
| 145 | ILGB.04.100.A.02 | 89 | 24.7 | 391.9 | 326.3 | 10 | 1.0 | 14.2 | 2900 | 4 | 5.4 | 4.5 |
| 146 | ILGB.04.125.02 | 100 | 27.8 | 440.3 | 366.6 | 20 | 2.0 | 28.4 | 2900 | 11 | 14.8 | 4.5 |
| 147 | ILGB.04.125.A.02 | 89 | 24.7 | 391.9 | 326.3 | 16 | 1.6 | 22.7 | 2900 | 7.5 | 10.1 | 4.5 |
| 148 | ILGB.04.160.02 | 100 | 27.8 | 440.3 | 366.6 | 32 | 3.1 | 45.4 | 2900 | 15 | 20.1 | 4.5 |
| 149 | ILGB.04.160.A.02 | 93.5 | 26.0 | 411.7 | 342.8 | 28 | 2.7 | 39.8 | 2900 | 11 | 14.8 | 4.5 |
| 150 | ILGB.04.160.B.02 | 86.6 | 24.1 | 381.3 | 317.5 | 24 | 2.4 | 34.1 | 2900 | 11 | 14.8 | 4.5 |
| 151 | ILGB.04.200.02 | 100 | 27.8 | 440.3 | 366.6 | 50 | 4.9 | 71.0 | 2900 | 22 | 29.5 | 4 |
| 152 | ILGB.04.200.A.02 | 93.5 | 26.0 | 411.7 | 342.8 | 44 | 4.3 | 62.5 | 2900 | 18.5 | 24.8 | 4 |
| 153 | ILGB.04.200.B.02 | 87 | 24.2 | 383.1 | 318.9 | 38 | 3.7 | 54.0 | 2900 | 15 | 20.1 | 4 |
| 154 | ILGB.04.250.02 | 100 | 27.8 | 440.3 | 366.6 | 80 | 7.8 | 113.6 | 2900 | 37 | 49.6 | 4 |
| 155 | ILGB.04.250.A.02 | 93.5 | 26.0 | 411.7 | 342.8 | 70 | 6.9 | 99.4 | 2900 | 30 | 40.2 | 4 |
| 156 | ILGB.04.250.B.02 | 87 | 24.2 | 383.1 | 318.9 | 60 | 5.9 | 85.2 | 2900 | 30 | 40.2 | 4 |
| 157 | ILGB.04.315.02 | 100 | 27.8 | 440.3 | 366.6 | 125 | 12.3 | 177.5 | 2900 | 75 | 100.6 | 4 |
| 158 | ILGB.04.315.A.02 | 95 | 26.4 | 418.3 | 348.3 | 113 | 11.1 | 160.5 | 2900 | 55 | 73.8 | 4 |
| 159 | ILGB.04.315.B.02 | 90 | 25.0 | 396.3 | 329.9 | 101 | 9.9 | 143.4 | 2900 | 45 | 60.3 | 4 |
| 160 | ILGB.04.315.C.02 | 82 | 22.8 | 361.0 | 300.6 | 85 | 8.3 | 120.7 | 2900 | 37 | 49.6 | 4 |
| 161 | ILGB.04.100.E.02 | 160 | 44.4 | 704.5 | 586.6 | 12.5 | 1.2 | 17.8 | 2900 | 11 | 14.8 | 4.5 |
| 162 | ILGB.04.125.E.02 | 160 | 44.4 | 704.5 | 586.6 | 20 | 2.0 | 28.4 | 2900 | 15 | 20.1 | 4.5 |
| 163 | ILGB.04.125.E.A.02 | 140 | 38.9 | 616.4 | 513.2 | 17 | 1.7 | 24.1 | 2900 | 11 | 14.8 | 4.5 |
| 164 | ILGB.04.160.E.02 | 160 | 44.4 | 704.5 | 586.6 | 32 | 3.1 | 45.4 | 2900 | 22 | 29.5 | 5.6 |
| 165 | ILGB.04.160.E.A.02 | 140 | 38.9 | 616.4 | 513.2 | 28 | 2.7 | 39.8 | 2900 | 18.5 | 24.8 | 5 |
| 166 | ILGB.04.200.E.02 | 160 | 44.4 | 704.5 | 586.6 | 50 | 4.9 | 71.0 | 2900 | 37 | 49.6 | 5.2 |
| 167 | ILGB.04.200.E.A.02 | 140 | 38.9 | 616.4 | 513.2 | 45 | 4.4 | 63.9 | 2900 | 30 | 40.2 | 4.5 |
| 168 | ILGB.04.200.E.B.02 | 100 | 27.8 | 440.3 | 366.6 | 40 | 3.9 | 56.8 | 2900 | 22 | 29.5 | 4.5 |
| 169 | ILGB.04.250.E.02 | 160 | 44.4 | 704.5 | 586.6 | 80 | 7.8 | 113.6 | 2900 | 55 | 73.8 | 4.8 |
| 170 | ILGB.04.250.E.A.02 | 140 | 38.9 | 616.4 | 513.2 | 72 | 7.1 | 102.2 | 2900 | 45 | 60.3 | 4.5 |
| 171 | ILGB.04.250.E.B.02 | 100 | 27.8 | 440.3 | 366.6 | 65 | 6.4 | 92.3 | 2900 | 37 | 49.6 | 4.5 |
| 172 | ILGB.04.350.02 | 100 | 27.8 | 440.3 | 366.6 | 150 | 14.7 | 213.0 | 2900 | 90 | 120.7 | 4 |
| 173 | ILGB.04.350.A.02 | 87 | 24.2 | 383.1 | 318.9 | 142 | 13.9 | 201.6 | 2900 | 75 | 100.6 | 4 |
| 174 | ILGB.04.350.B.02 | 82 | 22.8 | 361.0 | 300.6 | 135 | 13.2 | 191.7 | 2900 | 55 | 73.8 | 4 |
| 175 | ILGB.05.100.02 | 160 | 44.4 | 704.5 | 586.6 | 12.5 | 1.2 | 17.8 | 2900 | 11 | 14.8 | 4 |
| 176 | ILGB.05.100.A.02 | 143 | 39.7 | 629.6 | 524.2 | 10 | 1.0 | 14.2 | 2900 | 7.5 | 10.1 | 4 |
| 177 | ILGB.05.125.02 | 160 | 44.4 | 704.5 | 586.6 | 20 | 2.0 | 28.4 | 2900 | 15 | 20.1 | 4 |
| 178 | ILGB.05.125.A.02 | 143 | 39.7 | 629.6 | 524.2 | 16 | 1.6 | 22.7 | 2900 | 11 | 14.8 | 4 |
| 179 | ILGB.05.160.02 | 160 | 44.4 | 704.5 | 586.6 | 32 | 3.1 | 45.4 | 2900 | 22 | 29.5 | 4 |
| 180 | ILGB.05.160.A.02 | 150 | 41.7 | 660.5 | 549.9 | 28 | 2.7 | 39.8 | 2900 | 18.5 | 24.8 | 4 |
| 181 | ILGB.05.160.B.02 | 138 | 38.3 | 607.6 | 505.9 | 24 | 2.4 | 34.1 | 2900 | 15 | 20.1 | 4 |
| 182 | ILGB.05.200.02 | 160 | 44.4 | 704.5 | 586.6 | 50 | 4.9 | 71.0 | 2900 | 37 | 49.6 | 5.5 |
| 183 | ILGB.05.200.A.02 | 150 | 41.7 | 660.5 | 549.9 | 44 | 4.3 | 62.5 | 2900 | 30 | 40.2 | 5.5 |
| 184 | ILGB.05.200.B.02 | 138 | 38.3 | 607.6 | 505.9 | 37.5 | 3.7 | 53.3 | 2900 | 22 | 29.5 | 5.5 |
| 185 | ILGB.05.250.02 | 160 | 44.4 | 704.5 | 586.6 | 80 | 7.8 | 113.6 | 2900 | 55 | 73.8 | 5.5 |
| 186 | ILGB.05.250.A.02 | 150 | 41.7 | 660.5 | 549.9 | 70 | 6.9 | 99.4 | 2900 | 45 | 60.3 | 5.5 |
| 187 | ILGB.05.250.B.02 | 138 | 38.3 | 607.6 | 505.9 | 60 | 5.9 | 85.2 | 2900 | 37 | 49.6 | 5.5 |
| 188 | ILGB.05.315.02 | 160 | 44.4 | 704.5 | 586.6 | 125 | 12.3 | 177.5 | 2900 | 90 | 120.7 | 5 |
| 189 | ILGB.05.315.A.02 | 150 | 41.7 | 660.5 | 549.9 | 110 | 10.8 | 156.2 | 2900 | 75 | 100.6 | 5 |
| 190 | ILGB.05.315.B.02 | 143 | 39.7 | 629.6 | 524.2 | 100 | 9.8 | 142.0 | 2900 | 75 | 100.6 | 5 |
| 191 | ILGB.05.315.C.02 | 134 | 37.2 | 590.0 | 491.2 | 88 | 8.6 | 125.0 | 2900 | 55 | 73.8 | 5 |
| 192 | ILGB.06.125.02 | 160 | 44.4 | 704.5 | 586.6 | 24 | 2.4 | 34.1 | 2900 | 11 | 14.8 | 4 |
| 193 | ILGB.06.125.A.02 | 150 | 41.7 | 660.5 | 549.9 | 16 | 1.6 | 22.7 | 2900 | 7.5 | 10.1 | 4 |
| 194 | ILGB.06.160.02 | 160 | 44.4 | 704.5 | 586.6 | 32 | 3.1 | 45.4 | 2900 | 22 | 29.5 | 4 |
| 195 | ILGB.06.160.A.02 | 150 | 41.7 | 660.5 | 549.9 | 28 | 2.7 | 39.8 | 2900 | 18.5 | 24.8 | 4 |
| 196 | ILGB.06.160.B.02 | 140 | 38.9 | 616.4 | 513.2 | 24 | 2.4 | 34.1 | 2900 | 15 | 20.1 | 4 |
| 197 | ILGB.06.200.02 | 160 | 44.4 | 704.5 | 586.6 | 50 | 4.9 | 71.0 | 2900 | 37 | 49.6 | 5.5 |
| 198 | ILGB.06.200.A.02 | 150 | 41.7 | 660.5 | 549.9 | 44 | 4.3 | 62.5 | 2900 | 30 | 40.2 | 5.5 |
| 199 | ILGB.06.200.B.02 | 138 | 38.3 | 607.6 | 505.9 | 37.5 | 3.7 | 53.3 | 2900 | 22 | 29.5 | 5.5 |
| 200 | ILGB.06.250.02 | 160 | 44.4 | 704.5 | 586.6 | 80 | 7.8 | 113.6 | 2900 | 55 | 73.8 | 5 |
| 201 | ILGB.06.250.A.02 | 150 | 41.7 | 660.5 | 549.9 | 70 | 6.9 | 99.4 | 2900 | 45 | 60.3 | 5.5 |
| 202 | ILGB.06.250.B.02 | 138 | 38.3 | 607.6 | 505.9 | 60 | 5.9 | 85.2 | 2900 | 37 | 49.6 | 5.5 |
| 203 | ILGB.06.315.02 | 160 | 44.4 | 704.5 | 586.6 | 125 | 12.3 | 177.5 | 2900 | 90 | 120.7 | 5 |
| 204 | ILGB.06.315.A.02 | 150 | 41.7 | 660.5 | 549.9 | 110 | 10.8 | 156.2 | 2900 | 75 | 100.6 | 5 |
| 205 | ILGB.06.315.B.02 | 143 | 39.7 | 629.6 | 524.2 | 100 | 9.8 | 142.0 | 2900 | 75 | 100.6 | 5 |
| 206 | ILGB.06.315.C.02 | 134 | 37.2 | 590.0 | 491.2 | 88 | 8.6 | 125.0 | 2900 | 55 | 73.8 | 5 |
| 207 | ILGB.06.350.02 | 160 | 44.4 | 704.5 | 586.6 | 150 | 14.7 | 213.0 | 2900 | 110 | 147.5 | 5.5 |
| 208 | ILGB.06.350.A.02 | 150 | 41.7 | 660.5 | 549.9 | 142 | 13.9 | 201.6 | 2900 | 90 | 120.7 | 5.2 |
| 209 | ILGB.06.350.B.02 | 140 | 38.9 | 616.4 | 513.2 | 142 | 13.9 | 201.6 | 2900 | 75 | 100.6 | 5.5 |
| 210 | ILGB.06.200.E.04 | 200 | 55.6 | 880.6 | 733.2 | 12.5 | 1.2 | 17.8 | 1450 | 15 | 20.1 | 3 |
| 211 | ILGB.06.200.E.A.04 | 176 | 48.9 | 774.9 | 645.2 | 10 | 1.0 | 14.2 | 1450 | 11 | 14.8 | 3 |
| 212 | ILGB.06.250.E.04 | 200 | 55.6 | 880.6 | 733.2 | 20 | 2.0 | 28.4 | 1450 | 18.5 | 24.8 | 3 |
| 213 | ILGB.06.250.E.A.04 | 184.4 | 51.2 | 811.9 | 676.0 | 17 | 1.7 | 24.1 | 1450 | 15 | 20.1 | 3 |
| 214 | ILGB.06.250.E.B.04 | 167 | 46.4 | 735.3 | 612.2 | 14 | 1.4 | 19.9 | 1450 | 11 | 14.8 | 3 |
| 215 | ILGB.06.315.E.04 | 200 | 55.6 | 880.6 | 733.2 | 22 | 2.2 | 31.2 | 1450 | 30 | 40.2 | 2.5 |
| 216 | ILGB.06.315.E.A.04 | 187 | 51.9 | 823.4 | 685.5 | 28 | 2.7 | 39.8 | 1450 | 22 | 29.5 | 3.5 |
| 217 | ILGB.06.315.E.B.04 | 173 | 48.1 | 761.7 | 634.2 | 24 | 2.4 | 34.1 | 1450 | 18.5 | 24.8 | 3.5 |
| 218 | ILGB.06.400.E.04 | 200 | 55.6 | 880.6 | 733.2 | 50 | 4.9 | 71.0 | 1450 | 45 | 60.3 | 3.5 |
| 219 | ILGB.06.400.E.A.04 | 187 | 51.9 | 823.4 | 685.5 | 44 | 4.3 | 62.5 | 1450 | 37 | 49.6 | 3.5 |
| 220 | ILGB.06.400.E.B.04 | 174 | 48.3 | 766.1 | 637.9 | 38 | 3.7 | 54.0 | 1450 | 30 | 40.2 | 3.5 |
| 221 | ILGB.06.400.E.C.04 | 160 | 44.4 | 704.5 | 586.6 | 32 | 3.1 | 45.4 | 1450 | 22 | 29.5 | 3.5 |
| 222 | ILGB.08.250.A.04 | 184.4 | 51.2 | 811.9 | 676.0 | 17 | 1.7 | 24.1 | 1450 | 15 | 20.1 | 3 |
| 223 | ILGB.08.250.B.04 | 167 | 46.4 | 735.3 | 612.2 | 14 | 1.4 | 19.9 | 1450 | 11 | 14.8 | 3 |
| 224 | ILGB.08.315.04 | 200 | 55.6 | 880.6 | 733.2 | 32 | 3.1 | 45.4 | 1450 | 30 | 40.2 | 3.5 |
| 225 | ILGB.08.315.A.04 | 189 | 52.5 | 832.2 | 692.9 | 28 | 2.7 | 39.8 | 1450 | 22 | 29.5 | 3.5 |
| 226 | ILGB.08.315.B.04 | 173 | 48.1 | 761.7 | 634.2 | 24 | 2.4 | 34.1 | 1450 | 18.5 | 24.8 | 3.5 |
| 227 | ILGB.08.400.04 | 200 | 55.6 | 880.6 | 733.2 | 50 | 4.9 | 71.0 | 1450 | 45 | 60.3 | 3.5 |
| 228 | ILGB.08.400.A.04 | 187 | 51.9 | 823.4 | 685.5 | 44 | 4.3 | 62.5 | 1450 | 37 | 49.6 | 3.5 |
| 229 | ILGB.08.400.B.04 | 174 | 48.3 | 766.1 | 637.9 | 38 | 3.7 | 54.0 | 1450 | 30 | 40.2 | 3.5 |
| 230 | ILGB.08.400.C.04 | 160 | 44.4 | 704.5 | 586.6 | 32 | 3.1 | 45.4 | 1450 | 22 | 29.5 | 3.5 |
| 231 | ILGB.08.200.E.04 | 400 | 111.1 | 1761.2 | 1466.4 | 12.5 | 1.2 | 17.8 | 1450 | 22 | 29.5 | 4 |
| 232 | ILGB.08.200.E.A.04 | 358 | 99.5 | 1576.3 | 1312.4 | 10 | 1.0 | 14.2 | 1450 | 18.5 | 24.8 | 4 |
| 233 | ILGB.08.250.E.04 | 400 | 111.1 | 1761.2 | 1466.4 | 20 | 2.0 | 28.4 | 1450 | 30 | 40.2 | 4 |
| 234 | ILGB.08.250.E.A.04 | 358 | 99.5 | 1576.3 | 1312.4 | 16 | 1.6 | 22.7 | 1450 | 22 | 29.5 | 4 |
| 235 | ILGB.08.250.E.B.04 | 322 | 89.5 | 1417.8 | 1180.5 | 13 | 1.3 | 18.5 | 1450 | 18.5 | 24.8 | 4 |
| 236 | ILGB.08.315.E.04 | 400 | 111.1 | 1761.2 | 1466.4 | 32 | 3.1 | 45.4 | 1450 | 55 | 73.8 | 4 |
| 237 | ILGB.08.315.E.A.04 | 374 | 103.9 | 1646.7 | 1371.1 | 28 | 2.7 | 39.8 | 1450 | 45 | 60.3 | 4 |
| 238 | ILGB.08.315.E.B.04 | 346 | 96.1 | 1523.4 | 1268.4 | 24 | 2.4 | 34.1 | 1450 | 37 | 49.6 | 4 |
| 239 | ILGB.08.400.E.04 | 400 | 111.1 | 1761.2 | 1466.4 | 50 | 4.9 | 71.0 | 1450 | 75 | 100.6 | 4 |
| 240 | ILGB.08.400.E.A.04 | 374 | 103.9 | 1646.7 | 1371.1 | 44 | 4.3 | 62.5 | 1450 | 75 | 100.6 | 4 |
| 241 | ILGB.08.400.E.B.04 | 346 | 96.1 | 1523.4 | 1268.4 | 38 | 3.7 | 54.0 | 1450 | 55 | 73.8 | 5 |
| 242 | ILGB.08.400.E.C.04 | 320 | 88.9 | 1409.0 | 1173.1 | 32 | 3.1 | 45.4 | 1450 | 45 | 60.3 | 5 |
| 243 | ILGB.10.250.04 | 550 | 152.8 | 2421.7 | 2016.3 | 20 | 2.0 | 28.4 | 1450 | 45 | 60.3 | 5 |
| 244 | ILGB.10.250.A.04 | 500 | 138.9 | 2201.5 | 1833.0 | 17 | 1.7 | 24.1 | 1450 | 37 | 49.6 | 5 |
| 245 | ILGB.10.235.04 | 500 | 138.9 | 2201.5 | 1833.0 | 12.5 | 1.2 | 17.8 | 1480 | 22 | 29.5 | 4.5 |
| 246 | ILGB.10.300.04 | 500 | 138.9 | 2201.5 | 1833.0 | 20 | 2.0 | 28.4 | 1480 | 37 | 49.6 | 4.5 |
| 247 | ILGB.10.315.04 | 550 | 152.8 | 2421.7 | 2016.3 | 32 | 3.1 | 45.4 | 1450 | 75 | 100.6 | 5.5 |
| 248 | ILGB.10.315.A.04 | 500 | 138.9 | 2201.5 | 1833.0 | 28 | 2.7 | 39.8 | 1450 | 55 | 73.8 | 5.5 |
| 249 | ILGB.10.315.B.04 | 450 | 125.0 | 1981.4 | 1649.7 | 24 | 2.4 | 34.1 | 1450 | 45 | 60.3 | 5.5 |
| 250 | ILGB.10.400.04 | 500 | 138.9 | 2201.5 | 1833.0 | 50 | 4.9 | 71.0 | 1480 | 90 | 120.7 | 4.5 |
| 251 | ILGB.12.235.06 | 720 | 200.0 | 3170.2 | 2639.5 | 18 | 1.8 | 25.6 | 970 | 55 | 73.8 | 5 |
| 252 | ILGB.12.235.A.06 | 607 | 168.6 | 2672.6 | 2225.3 | 15 | 1.5 | 21.3 | 970 | 45 | 60.3 | 5 |
| 253 | ILGB.12.235.B.06 | 600 | 166.7 | 2641.8 | 2199.6 | 12.5 | 1.2 | 17.8 | 970 | 37 | 49.6 | 5 |
| 254 | ILGB.12.300.06 | 720 | 200.0 | 3170.2 | 2639.5 | 28 | 2.7 | 39.8 | 970 | 75 | 100.6 | 5 |
| 255 | ILGB.12.300.A.06 | 666 | 185.0 | 2932.4 | 2441.6 | 24 | 2.4 | 34.1 | 970 | 75 | 100.6 | 5 |
| 256 | ILGB.12.300.B.06 | 623 | 173.1 | 2743.1 | 2283.9 | 21 | 2.1 | 29.8 | 970 | 55 | 73.8 | 5 |
| 257 | ILGB.12.380.06 | 720 | 200.0 | 3170.2 | 2639.5 | 44 | 4.3 | 62.5 | 970 | 132 | 177.0 | 5 |
| 258 | ILGB.12.380.A.06 | 666 | 185.0 | 2932.4 | 2441.6 | 38 | 3.7 | 54.0 | 970 | 110 | 147.5 | 5 |
| 259 | ILGB.12.380.B.06 | 614 | 170.6 | 2703.4 | 2250.9 | 32 | 3.1 | 45.4 | 970 | 90 | 120.7 | 5 |
| 260 | ILGB.12.235.E.04 | 1080 | 300.0 | 4755.2 | 3959.3 | 40 | 3.9 | 56.8 | 1450 | 160 | 214.6 | 5.5 |
| 261 | ILGB.12.235.E.A.04 | 965 | 268.1 | 4248.9 | 3537.7 | 32 | 3.1 | 45.4 | 1450 | 132 | 177.0 | 5.5 |
| 262 | ILGB.10.315.A.04 | 515 | 143.1 | 2267.5 | 1888.0 | 28 | 2.7 | 39.8 | 1450 | 55 | 73.8 | 5 |
| 263 | ILGB.10.315.B.04 | 476 | 132.2 | 2095.8 | 1745.0 | 24 | 2.4 | 34.1 | 1450 | 45 | 60.3 | 5 |
| 264 | ILGB.10.400.04 | 550 | 152.8 | 2421.7 | 2016.3 | 50 | 4.9 | 71.0 | 1450 | 110 | 147.5 | 5 |
| 265 | ILGB.10.400.A.04 | 515 | 143.1 | 2267.5 | 1888.0 | 44 | 4.3 | 62.5 | 1450 | 90 | 120.7 | 5 |
| 266 | ILGB.10.400.B.04 | 476 | 132.2 | 2095.8 | 1745.0 | 37.5 | 3.7 | 53.3 | 1450 | 75 | 100.6 | 5 |
| 267 | ILGB.10.480.04 | 550 | 152.8 | 2421.7 | 2016.3 | 70 | 6.9 | 99.4 | 1450 | 160 | 214.6 | 5 |
| 268 | ILGB.10.480.A.04 | 500 | 138.9 | 2201.5 | 1833.0 | 60 | 5.9 | 85.2 | 1450 | 132 | 177.0 | 5 |
| 269 | ILGB.10.480.B.04 | 450 | 125.0 | 1981.4 | 1649.7 | 50 | 4.9 | 71.0 | 1450 | 90 | 120.7 | 5 |
| 270 | ILGB.10.500.04 | 550 | 152.8 | 2421.7 | 2016.3 | 80 | 7.8 | 113.6 | 1450 | 200 | 268.2 | 5.5 |
| 271 | ILGB.10.500.A.04 | 506 | 140.6 | 2227.9 | 1855.0 | 71 | 7.0 | 100.8 | 1450 | 160 | 214.6 | 5.5 |
| 272 | ILGB.10.500.B.04 | 466 | 129.5 | 2051.8 | 1708.4 | 63.5 | 6.2 | 90.2 | 1450 | 132 | 177.0 | 5.5 |
| 273 | ILGB.12.200.06 | 720 | 200.0 | 3170.2 | 2639.5 | 12.5 | 1.2 | 17.8 | 970 | 37 | 49.6 | 6 |
| 274 | ILGB.12.200.A.06 | 662 | 183.9 | 2914.8 | 2426.9 | 11 | 1.1 | 15.6 | 970 | 30 | 40.2 | 6 |
| 275 | ILGB.12.235.06 | 720 | 200.0 | 3170.2 | 2639.5 | 18 | 1.8 | 25.6 | 970 | 55 | 73.8 | 5 |
| 276 | ILGB.12.235.A.06 | 657 | 182.5 | 2892.8 | 2408.6 | 15 | 1.5 | 21.3 | 970 | 45 | 60.3 | 5 |
| 277 | ILGB.12.250.04 | 720 | 200.0 | 3170.2 | 2639.5 | 20 | 2.0 | 28.4 | 1450 | 55 | 73.8 | 6 |
| 278 | ILGB.12.250.A.04 | 662 | 183.9 | 2914.8 | 2426.9 | 17.6 | 1.7 | 25.0 | 1450 | 45 | 60.3 | 6 |
| 279 | ILGB.12.300.06 | 720 | 200.0 | 3170.2 | 2639.5 | 28 | 2.7 | 39.8 | 970 | 75 | 100.6 | 5 |
| 280 | ILGB.12.300.A.06 | 666 | 185.0 | 2932.4 | 2441.6 | 24 | 2.4 | 34.1 | 970 | 75 | 100.6 | 5 |
| 281 | ILGB.12.300.B.06 | 623 | 173.1 | 2743.1 | 2283.9 | 21 | 2.1 | 29.8 | 970 | 55 | 73.8 | 5 |
| 282 | ILGB.12.315.04 | 720 | 200.0 | 3170.2 | 2639.5 | 32 | 3.1 | 45.4 | 1450 | 90 | 120.7 | 6 |
| 283 | ILGB.12.315.A.04 | 662 | 183.9 | 2914.8 | 2426.9 | 28 | 2.7 | 39.8 | 1450 | 75 | 100.6 | 6 |
| 284 | ILGB.12.315.B.04 | 596 | 165.6 | 2624.2 | 2184.9 | 23.5 | 2.3 | 33.4 | 1450 | 55 | 73.8 | 6 |
| 285 | ILGB.12.380.06 | 720 | 200.0 | 3170.2 | 2639.5 | 44 | 4.3 | 62.5 | 970 | 132 | 177.0 | 5 |
| 286 | ILGB.12.380.A.06 | 666 | 185.0 | 2932.4 | 2441.6 | 38 | 3.7 | 54.0 | 970 | 110 | 147.5 | 5 |
| 287 | ILGB.12.380.B.06 | 623 | 173.1 | 2743.1 | 2283.9 | 33 | 3.2 | 46.9 | 970 | 90 | 120.7 | 5 |
| 288 | ILGB.12.400.04 | 720 | 200.0 | 3170.2 | 2639.5 | 50 | 4.9 | 71.0 | 1450 | 132 | 177.0 | 5.5 |
| 289 | ILGB.12.400.A.04 | 662 | 183.9 | 2914.8 | 2426.9 | 44 | 4.3 | 62.5 | 1450 | 110 | 147.5 | 5.5 |
| 290 | ILGB.12.400.B.04 | 609 | 169.2 | 2681.4 | 2232.6 | 38 | 3.7 | 54.0 | 1450 | 90 | 120.7 | 5.5 |
| 291 | ILGB.12.400.C.04 | 561 | 155.8 | 2470.1 | 2056.6 | 33 | 3.2 | 46.9 | 1450 | 75 | 100.6 | 5.5 |
| 292 | ILGB.12.460.04 | 720 | 200.0 | 3170.2 | 2639.5 | 65 | 6.4 | 92.3 | 1450 | 185 | 248.1 | 5.5 |
| 293 | ILGB.14.400.A.04 | 750 | 208.4 | 3302.3 | 2749.5 | 44 | 4.3 | 62.5 | 1450 | 132 | 177.0 | 5 |
| 294 | ILGB.14.400.B.04 | 697 | 193.6 | 3068.9 | 2555.2 | 38 | 3.7 | 54.0 | 1450 | 110 | 147.5 | 5 |
| 295 | ILGB.14.460.04 | 1200 | 333.4 | 5283.6 | 4399.2 | 50 | 4.9 | 71.0 | 1450 | 250 | 335.3 | 6 |
| 296 | ILGB.14.460.A.04 | 1080 | 300.0 | 4755.2 | 3959.3 | 44 | 4.3 | 62.5 | 1450 | 200 | 268.2 | 6 |
| 297 | ILGB.14.460.B.04 | 985 | 273.6 | 4337.0 | 3611.0 | 38.5 | 3.8 | 54.7 | 1450 | 160 | 214.6 | 6 |
| 298 | ILGB.14.460.C.04 | 900 | 250.0 | 3962.7 | 3299.4 | 34 | 3.3 | 48.3 | 1450 | 132 | 177.0 | 6 |
| 299 | ILGB.14.480.04 | 850 | 236.1 | 3742.6 | 3116.1 | 65 | 6.4 | 92.3 | 1450 | 220 | 295.0 | 5.5 |
| 300 | ILGB.14.480.A.04 | 800 | 222.2 | 3522.4 | 2932.8 | 60 | 5.9 | 85.2 | 1450 | 200 | 268.2 | 5.5 |
| 301 | ILGB.14.480.B.04 | 720 | 200.0 | 3170.2 | 2639.5 | 55 | 5.4 | 78.1 | 1450 | 160 | 214.6 | 5.5 |
| 302 | ILGB.16.300.04 | 1080 | 300.0 | 4755.2 | 3959.3 | 20 | 2.0 | 28.4 | 1450 | 90 | 120.7 | 6 |
| 303 | ILGB.16.315.04 | 1080 | 300.0 | 4755.2 | 3959.3 | 32 | 3.1 | 45.4 | 1450 | 132 | 177.0 | 6 |
| 304 | ILGB.16.400.06 | 1080 | 300.0 | 4755.2 | 3959.3 | 12.5 | 1.2 | 17.8 | 970 | 55 | 73.8 | 5.5 |
| 305 | ILGB.16.400.A.06 | 966 | 268.4 | 4253.3 | 3541.4 | 10 | 1.0 | 14.2 | 970 | 45 | 60.3 | 5 |
| 306 | ILGB.16.500.06 | 1080 | 300.0 | 4755.2 | 3959.3 | 20 | 2.0 | 28.4 | 970 | 90 | 120.7 | 5 |
| 307 | ILGB.16.500.A.06 | 996 | 276.7 | 4385.4 | 3651.3 | 17 | 1.7 | 24.1 | 970 | 75 | 100.6 | 5 |
| 308 | ILGB.16.500.B.06 | 935 | 259.7 | 4116.8 | 3427.7 | 15 | 1.5 | 21.3 | 970 | 55 | 73.8 | 5 |
| 309 | ILGB.16.625.06 | 1080 | 300.0 | 4755.2 | 3959.3 | 32 | 3.1 | 45.4 | 970 | 132 | 177.0 | 5 |
| 310 | ILGB.16.625.A.06 | 996 | 276.7 | 4385.4 | 3651.3 | 27 | 2.6 | 38.3 | 970 | 110 | 147.5 | 5 |
| 311 | ILGB.16.625.B.06 | 935 | 259.7 | 4116.8 | 3427.7 | 24 | 2.4 | 34.1 | 970 | 90 | 120.7 | 5 |
| 312 | ILGB.20.300.04 | 1200 | 333.4 | 5283.6 | 4399.2 | 20 | 2.0 | 28.4 | 1450 | 110 | 147.5 | 6 |
| 313 | ILGB.20.315.04 | 1200 | 333.4 | 5283.6 | 4399.2 | 32 | 3.1 | 45.4 | 1450 | 160 | 214.6 | 6 |
| 314 | ILGB.20.400.06 | 1200 | 333.4 | 5283.6 | 4399.2 | 12.5 | 1.2 | 17.8 | 970 | 75 | 100.6 | 5 |
| 315 | ILGB.20.400.A.06 | 1073 | 298.1 | 4724.4 | 3933.6 | 10 | 1.0 | 14.2 | 970 | 55 | 73.8 | 5 |
| 316 | ILGB.20.500.06 | 1200 | 333.4 | 5283.6 | 4399.2 | 20 | 2.0 | 28.4 | 970 | 110 | 147.5 | 5 |
| 317 | ILGB.20.500.A.06 | 1106 | 307.2 | 4869.7 | 4054.6 | 17 | 1.7 | 24.1 | 970 | 90 | 120.7 | 5 |
| 318 | ILGB.20.500.B.06 | 1040 | 288.9 | 4579.1 | 3812.6 | 15 | 1.5 | 21.3 | 970 | 75 | 100.6 | 5 |
| 319 | ILGB.20.625.06 | 1200 | 333.4 | 5283.6 | 4399.2 | 32 | 3.1 | 45.4 | 970 | 160 | 214.6 | 5 |
| 320 | ILGB.20.625.A.06 | 1106 | 307.2 | 4869.7 | 4054.6 | 27 | 2.6 | 38.3 | 970 | 132 | 177.0 | 5 |
| 321 | ILGB.20.625.B.06 | 1040 | 288.9 | 4579.1 | 3812.6 | 24 | 2.4 | 34.1 | 970 | 110 | 147.5 | 5 |
-Liquid temperature during operation 20ºC;
-Technical Parameter- 50Hz;
For more information, please contact us.
