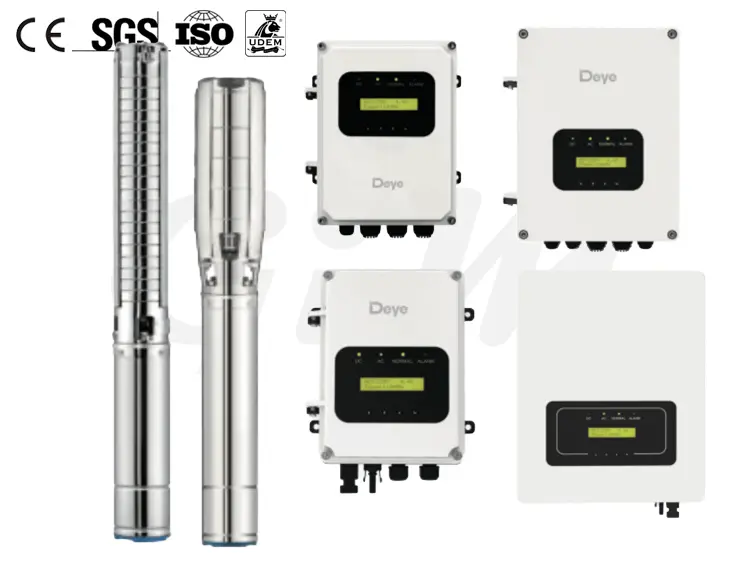

Submersible Deep-well Bore-hole Solar Water Pump
- AC/DC(Solar) mixed input, Prioritize solar power
- Solar MPPT tracking technology
- Permanent Magnet Synchronous Motor
- Wide Voltage Input
- Water Shortage Protection
- Automatic Shutdown on High Water Level
- Smart Timer
- Automatic Switch
- Six Protection Functions
- NEMA Dimension Standards
- Adjustable Motor Speed
- Intelligent Protection Detection on Drive motor
- Support Customization
- Two-Year Warranty
- Global Shipping
- Multiple Payment Methods
Overview

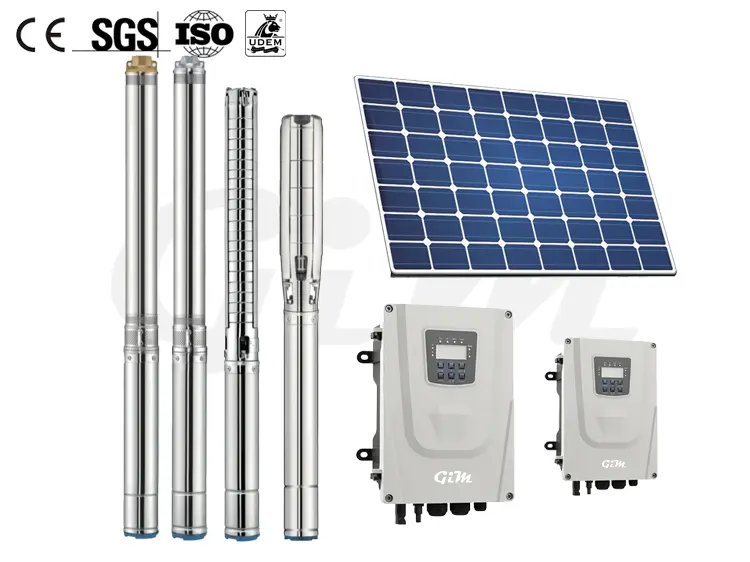

The Submersible Deep-well Bore-hole Solar Water Pump System represents the next generation of renewable fluid-handling technology. The system primarily consists of a high-head submersible pump, a high-efficiency photovoltaic (PV) array, and an intelligent solar pump inverter/controller.
Designed to fit standard deep-well borehole diameters, the pump utilizes a precision-engineered centrifugal or helical rotor mechanism to lift water from significant depths. The integrated smart controller continuously optimizes motor speed in real-time based on solar irradiance, ensuring peak volumetric efficiency.
Application
- Water supply from well or reservoirs
- Domestic use, for civil and industrial applications
- Garden use and irrigation
Technical Features
- Motor Technology: High-torque Permanent Magnet Brushless DC Motor (or AC induction for high-power models).
- Control System: Built-in MPPT algorithm with over-voltage, under-voltage, over-current, and thermal overload protection.
- Material Specification: AISI 304/316 stainless steel pump body, impellers, and shaft for superior sand and corrosion resistance.
- Eco-Friendly Compliance: Carbon-neutral operation, zero noise pollution, and fluid-lubricated bearings (oil-free options available) to prevent groundwater contamination.
Solar Controller Wiring Diagram
Technical Specifications
Optional Solar Deep-well Bore-hole Pumps
1 – Plastic Submersible Solar Pump
2 – Plastic Submersible Solar Pump
3 – Stainless Steel Impeller Submersible Solar Pump
4 – Stainless Steel Impeller Submersible Solar Pump
Optional Pump Motors
- Three Phase Asynchronous Motor
- Permanent Magnet Synchronous Motor (PMSM)
- NEMA Motor Dimension Standards
Optional Solar Controller
- DC Input
- Auto-switch AC/DC Hybrid Input
