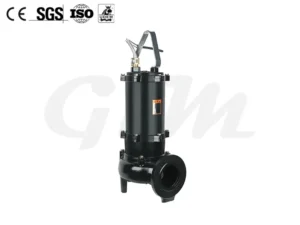

SS Submersible Sewage Pump
- Flow Range: 8~10000 m³/h
- Head Range: 5~60 m
- Discharge Diameter: 25~500 mm
- Materials: Cast Iron / Stainless Steel AISI 304/316/316L
- Support Customization
- Two-Year Warranty
- Global Shipping
- Multiple Payment Methods
Overview
The SS series submersible non-clog sewage pumps are designed to meet the specific needs of domestic pump applications. They offer significant energy-saving benefits and are engineered to handle solid particles and long fiber waste efficiently.
Application
- Sewage Treatment Plants
- Municipal Sewage Lift Stations
- Water Supply Plants
- Irrigation and Drainage Systems
- Water Diversion Projects
- Integrated Pump Stations
- Factories
- Commercial Complexes
- Hospitals and Hotels
- Rural Biogas Pits and Agricultural Irrigation
- Construction Site Slurry Transport
Advantages
- Excellent Flow Performance: Features large flow channel anti-clogging hydraulic components, significantly improving the ability to handle debris.
- High Efficiency and Energy Saving: Well-designed with high efficiency and significant energy-saving effects.
- Premium Sealing Structure: Uses dual-path serial mechanical seals made of hard, corrosion-resistant tungsten carbide, durable and wear-resistant, allowing the pump to operate safely for over 8000 hours.
- Cost-Effective: Compact structure, small size, easy to move, simple installation, no need for a pump house, reducing project costs.
- Leakage and Electrical Protection: Equipped with oil-water probes in the oil chamber, and can be paired with an automatic safety protection control panel to monitor leakage, electrical faults, overload, and overheating, ensuring reliable and safe pump operation.
- Unattended Operation: Equipped with float switches and other level sensors for intelligent control of pump start and stop based on required water levels, eliminating the need for manual supervision.
- Convenient Installation and Maintenance: Dual guide rail automatic coupling installation system makes pump installation and maintenance very convenient, eliminating the need for personnel to enter the sewage pit.
- Flexible Installation Methods: Offers both fixed automatic coupling installation and movable free installation options to suit different application scenarios.
- Energy Efficiency: Notable energy-saving performance.
- Anti-Winding Design: Specially designed to prevent winding and blockages.
- Non-Clogging: Effective in handling solid particles and long fibers without clogging.
- Automatic Installation: Designed for easy and automatic installation.
- Automatic Control: Equipped with automatic control features for convenient operation.

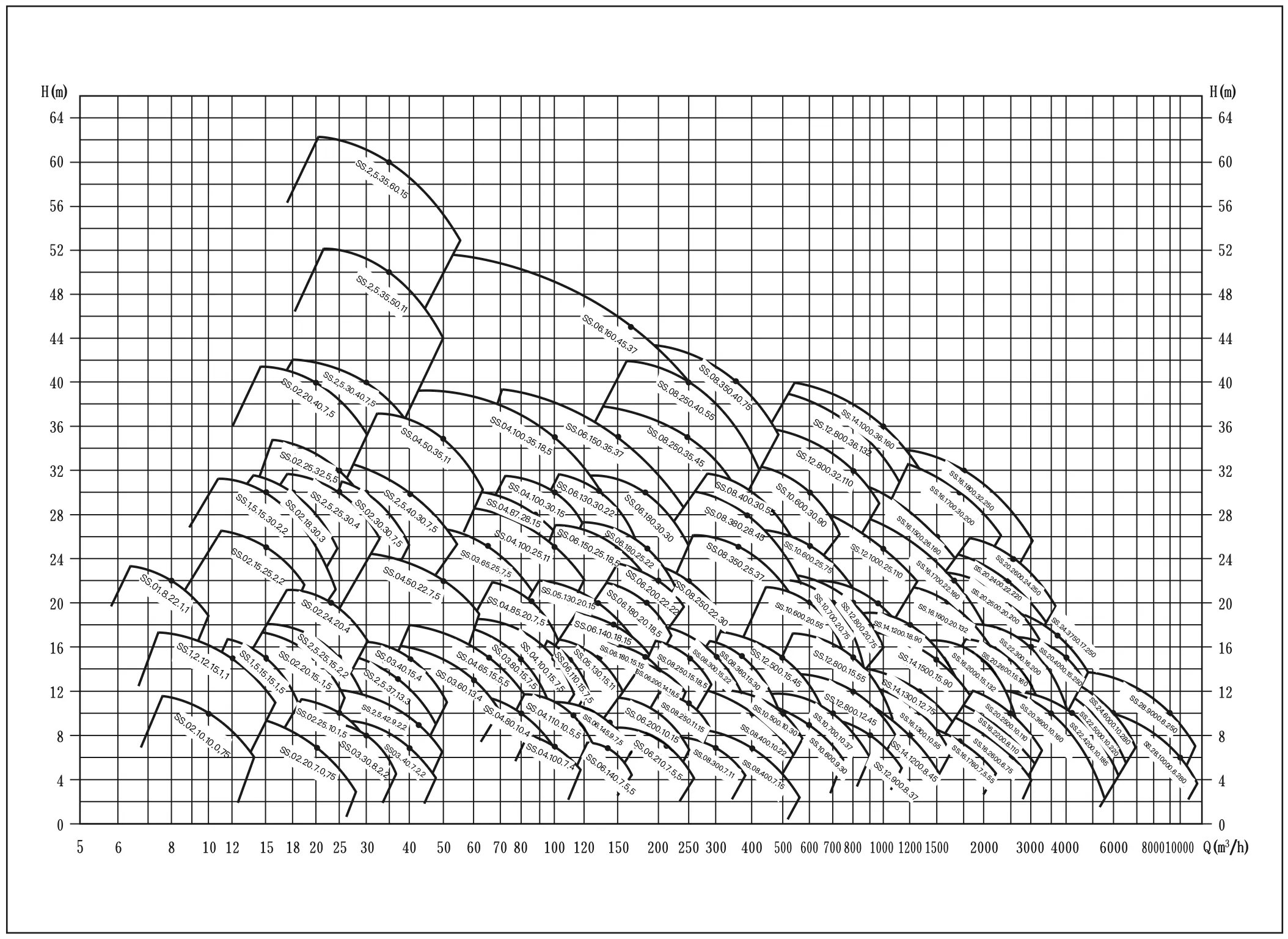

Performance Spectrum

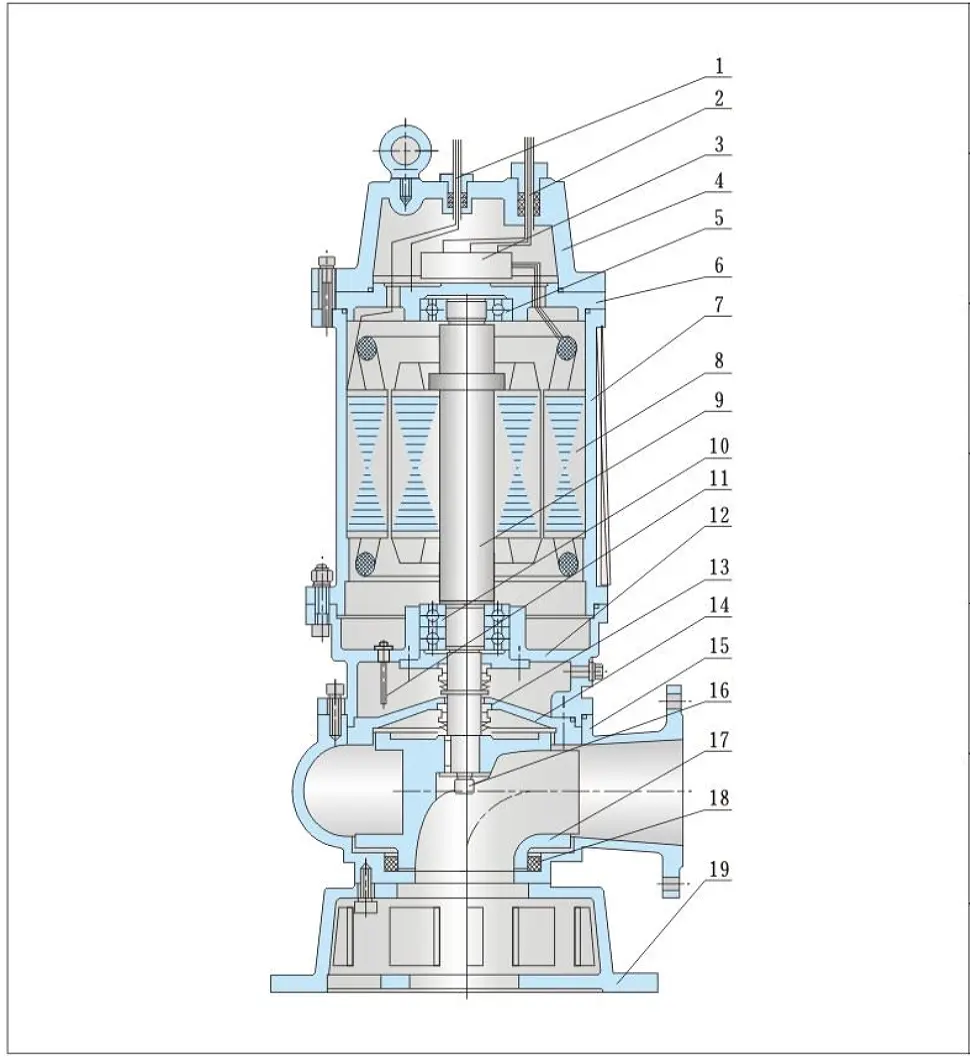

Structural Diagram
Performance
GIM FLUID® SS Series Technical Parameters
SS Series Industrial Submersible Sewage Pump
| No. | Model | Rated Flow (m3/h) | Rated Flow (l/s) | Rated Flow (US.gpm) | Rated Flow (IMP.gpm) | Rated Head (m) | Rated Head (bar) | Rated Head (psi) | Power (kW) | Power (hp) | Speed (rpm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | SS.01.8.22.11 | 8 | 2.2 | 35.2 | 29.3 | 22 | 2.2 | 31.2 | 1.1 | 1.5 | 2900 |
| 2 | SS.1,25.12.15.11 | 12 | 3.3 | 52.8 | 44.0 | 15 | 1.5 | 21.3 | 1.1 | 1.5 | 2900 |
| 3 | SS.1,5.15.15.15 | 15 | 4.2 | 66.0 | 55.0 | 15 | 1.5 | 21.3 | 1.5 | 2.0 | 2900 |
| 4 | SS.1,5.15.30.22 | 15 | 4.2 | 66.0 | 55.0 | 30 | 2.9 | 42.6 | 2.2 | 3.0 | 2900 |
| 5 | SS.02.20.7.075 | 20 | 5.6 | 88.1 | 73.3 | 7 | 0.7 | 9.9 | 0.75 | 1.0 | 2900 |
| 6 | SS.02.10.10.075 | 10 | 2.8 | 44.0 | 36.7 | 10 | 1.0 | 14.2 | 0.75 | 1.0 | 2900 |
| 7 | SS.02.25.10.15 | 25 | 6.9 | 110.1 | 91.7 | 10 | 1.0 | 14.2 | 1.5 | 2.0 | 2900 |
| 8 | SS.02.20.15.15 | 20 | 5.6 | 88.1 | 73.3 | 15 | 1.5 | 21.3 | 1.5 | 2.0 | 2900 |
| 9 | SS.02.25.15.22 | 25 | 6.9 | 110.1 | 91.7 | 15 | 1.5 | 21.3 | 2.2 | 3.0 | 2900 |
| 10 | SS.02.15.25.22 | 15 | 4.2 | 66.0 | 55.0 | 25 | 2.5 | 35.5 | 2.2 | 3.0 | 2900 |
| 11 | SS.02.15.30.30 | 15 | 4.2 | 66.0 | 55.0 | 30 | 2.9 | 42.6 | 3 | 4.0 | 2900 |
| 12 | SS.02.24.20.40 | 24 | 6.7 | 105.7 | 88.0 | 20 | 2.0 | 28.4 | 4 | 5.4 | 2900 |
| 13 | SS.02.25.32.55 | 25 | 6.9 | 110.1 | 91.7 | 32 | 3.1 | 45.4 | 5.5 | 7.4 | 2900 |
| 14 | SS.02.10.50.55 | 10 | 2.8 | 44.0 | 36.7 | 50 | 4.9 | 71.0 | 5.5 | 7.4 | 2900 |
| 15 | SS.02.30.30.75 | 30 | 8.3 | 132.1 | 110.0 | 30 | 2.9 | 42.6 | 7.5 | 10.1 | 2900 |
| 16 | SS.02.20.40.75 | 20 | 5.6 | 88.1 | 73.3 | 40 | 3.9 | 56.8 | 7.5 | 10.1 | 2900 |
| 17 | SS.02.15.50.75 | 15 | 4.2 | 66.0 | 55.0 | 50 | 4.9 | 71.0 | 7.5 | 10.1 | 2900 |
| 18 | SS.2,5.42.9.22 | 42 | 11.7 | 184.9 | 154.0 | 9 | 0.9 | 12.8 | 2.2 | 3.0 | 2900 |
| 19 | SS.2,5.25.15.22 | 25 | 6.9 | 110.1 | 91.7 | 15 | 1.5 | 21.3 | 2.2 | 3.0 | 2900 |
| 20 | SS.2,5.37.13.30 | 37 | 10.3 | 162.9 | 135.6 | 13 | 1.3 | 18.5 | 3 | 4.0 | 2900 |
| 21 | SS.2,5.27.15.30 | 27 | 7.5 | 118.9 | 99.0 | 15 | 1.5 | 21.3 | 3 | 4.0 | 2900 |
| 22 | SS.2,5.25.30.40 | 25 | 6.9 | 110.1 | 91.7 | 30 | 2.9 | 42.6 | 4 | 5.4 | 2900 |
| 23 | SS.2,5.40.30.75 | 40 | 11.1 | 176.1 | 146.6 | 30 | 2.9 | 42.6 | 7.5 | 10.1 | 2900 |
| 24 | SS.2,5.30.40.75 | 30 | 8.3 | 132.1 | 110.0 | 40 | 3.9 | 56.8 | 7.5 | 10.1 | 2900 |
| 25 | SS.2,5.35.50.110 | 35 | 9.7 | 154.1 | 128.3 | 50 | 4.9 | 71.0 | 11 | 14.8 | 2900 |
| 26 | SS.2,5.35.60.150 | 35 | 9.7 | 154.1 | 128.3 | 60 | 5.9 | 85.2 | 15 | 20.1 | 2900 |
| 27 | SS.03.40.7.22 | 40 | 11.1 | 176.1 | 146.6 | 7 | 0.7 | 9.9 | 2.2 | 3.0 | 1450 |
| 28 | SS.03.30.8.22 | 30 | 8.3 | 132.1 | 110.0 | 8 | 0.8 | 11.4 | 2.2 | 3.0 | 1450 |
| 29 | SS.03.50.10.30 | 50 | 13.9 | 220.2 | 183.3 | 10 | 1.0 | 14.2 | 3 | 4.0 | 2900 |
| 30 | SS.03.43.13.30 | 43 | 11.9 | 189.3 | 157.6 | 13 | 1.3 | 18.5 | 3 | 4.0 | 2900 |
| 31 | SS.03.60.13.40 | 60 | 16.7 | 264.2 | 220.0 | 13 | 1.3 | 18.5 | 4 | 5.4 | 2900 |
| 32 | SS.03.40.15.40 | 40 | 11.1 | 176.1 | 146.6 | 15 | 1.5 | 21.3 | 4 | 5.4 | 2900 |
| 33 | SS.03.65.20.55 | 65 | 18.1 | 286.2 | 238.3 | 20 | 2.0 | 28.4 | 5.5 | 7.4 | 2900 |
| 34 | SS.03.65.25.75 | 65 | 18.1 | 286.2 | 238.3 | 25 | 2.5 | 35.5 | 7.5 | 10.1 | 2900 |
| 35 | SS.03.80.15.75 | 80 | 22.2 | 352.2 | 293.3 | 15 | 1.5 | 21.3 | 7.5 | 10.1 | 2900 |
| 36 | SS.03.50.35.110 | 50 | 13.9 | 220.2 | 183.3 | 35 | 3.4 | 49.7 | 11 | 14.8 | 2900 |
| 37 | SS.03.50.40.150 | 50 | 13.9 | 220.2 | 183.3 | 40 | 3.9 | 56.8 | 15 | 20.1 | 2900 |
| 38 | SS.04.100.7.40 | 100 | 27.8 | 440.3 | 366.6 | 7 | 0.7 | 9.9 | 4 | 5.4 | 1450 |
| 39 | SS.04.80.10.40 | 80 | 22.2 | 352.2 | 293.3 | 10 | 1.0 | 14.2 | 4 | 5.4 | 1450 |
| 40 | SS.04.110.10.55 | 110 | 30.6 | 484.3 | 403.3 | 10 | 1.0 | 14.2 | 5.5 | 7.4 | 1450 |
| 41 | SS.04.65.15.55 | 65 | 18.1 | 286.2 | 238.3 | 15 | 1.5 | 21.3 | 5.5 | 7.4 | 1450 |
| 42 | SS.04.100.15.75 | 100 | 27.8 | 440.3 | 366.6 | 15 | 1.5 | 21.3 | 7.5 | 10.1 | 1450 |
| 43 | SS.04.85.20.75 | 85 | 23.6 | 374.3 | 311.6 | 20 | 2.0 | 28.4 | 7.5 | 10.1 | 1450 |
| 44 | SS.04.50.22.75 | 50 | 13.9 | 220.2 | 183.3 | 22 | 2.2 | 31.2 | 7.5 | 10.1 | 1450 |
| 45 | SS.04.70.22.110 | 70 | 19.4 | 308.2 | 256.6 | 22 | 2.2 | 31.2 | 11 | 14.8 | 1450 |
| 46 | SS.04.100.25.110 | 100 | 27.8 | 440.3 | 366.6 | 25 | 2.5 | 35.5 | 11 | 14.8 | 1450 |
| 47 | SS.04.50.35.110 | 50 | 13.9 | 220.2 | 183.3 | 35 | 3.4 | 49.7 | 11 | 14.8 | 1450 |
| 48 | SS.04.87.28.150 | 87 | 24.2 | 383.1 | 318.9 | 28 | 2.7 | 39.8 | 15 | 20.1 | 1450 |
| 49 | SS.04.100.30.150 | 100 | 27.8 | 440.3 | 366.6 | 30 | 2.9 | 42.6 | 15 | 20.1 | 1450 |
| 50 | SS.04.100.35.185 | 100 | 27.8 | 440.3 | 366.6 | 35 | 3.4 | 49.7 | 18.5 | 24.8 | 1450 |
| 51 | SS.04.100.40.220 | 100 | 27.8 | 440.3 | 366.6 | 40 | 3.9 | 56.8 | 22 | 29.5 | 1450 |
| 52 | SS.04.80.50.300 | 80 | 22.2 | 352.2 | 293.3 | 50 | 4.9 | 71.0 | 30 | 40.2 | 1450 |
| 53 | SS.04.80.60.370 | 80 | 22.2 | 352.2 | 293.3 | 60 | 5.9 | 85.2 | 37 | 49.6 | 1450 |
| 54 | SS.05.130.15.110 | 130 | 36.1 | 572.4 | 476.6 | 15 | 1.5 | 21.3 | 11 | 14.8 | 1450 |
| 55 | SS.05.130.20.150 | 130 | 36.1 | 572.4 | 476.6 | 20 | 2.0 | 28.4 | 15 | 20.1 | 1450 |
| 56 | SS.06.140.7.55 | 140 | 38.9 | 616.4 | 513.2 | 7 | 0.7 | 9.9 | 5.5 | 7.4 | 1450 |
| 57 | SS.06.120.10.55 | 120 | 33.3 | 528.4 | 439.9 | 10 | 1.0 | 14.2 | 5.5 | 7.4 | 1450 |
| 58 | SS.06.210.7.75 | 210 | 58.3 | 924.6 | 769.9 | 7 | 0.7 | 9.9 | 7.5 | 10.1 | 1450 |
| 59 | SS.06.145.9.75 | 145 | 40.3 | 638.4 | 531.6 | 9 | 0.9 | 12.8 | 7.5 | 10.1 | 1450 |
| 60 | SS.06.110.15.75 | 110 | 30.6 | 484.3 | 403.3 | 15 | 1.5 | 21.3 | 7.5 | 10.1 | 1450 |
| 61 | SS.06.200.10.150 | 200 | 55.6 | 880.6 | 733.2 | 10 | 1.0 | 14.2 | 15 | 20.1 | 1450 |
| 62 | SS.06.180.15.150 | 180 | 50.0 | 792.5 | 659.9 | 15 | 1.5 | 21.3 | 15 | 20.1 | 1450 |
| 63 | SS.06.140.18.150 | 140 | 38.9 | 616.4 | 513.2 | 18 | 1.8 | 25.6 | 15 | 20.1 | 1450 |
| 64 | SS.06.200.14.185 | 200 | 55.6 | 880.6 | 733.2 | 14 | 1.4 | 19.9 | 18.5 | 24.8 | 1450 |
| 65 | SS.06.180.20.185 | 180 | 50.0 | 792.5 | 659.9 | 20 | 2.0 | 28.4 | 18.5 | 24.8 | 1450 |
| 66 | SS.06.150.25.185 | 150 | 41.7 | 660.5 | 549.9 | 25 | 2.5 | 35.5 | 18.5 | 24.8 | 1450 |
| 67 | SS.06.200.22.220 | 200 | 55.6 | 880.6 | 733.2 | 22 | 2.2 | 31.2 | 22 | 29.5 | 1450 |
| 68 | SS.06.180.25.220 | 180 | 50.0 | 792.5 | 659.9 | 25 | 2.5 | 35.5 | 22 | 29.5 | 1450 |
| 69 | SS.06.130.30.220 | 130 | 36.1 | 572.4 | 476.6 | 30 | 2.9 | 42.6 | 22 | 29.5 | 1450 |
| 70 | SS.06.250.22.300 | 250 | 69.5 | 1100.8 | 916.5 | 22 | 2.2 | 31.2 | 30 | 40.2 | 1450 |
| 71 | SS.06.180.30.300 | 180 | 50.0 | 792.5 | 659.9 | 30 | 2.9 | 42.6 | 30 | 40.2 | 1450 |
| 72 | SS.06.200.30.370 | 200 | 55.6 | 880.6 | 733.2 | 30 | 2.9 | 42.6 | 37 | 49.6 | 1450 |
| 73 | SS.06.150.35.370 | 150 | 41.7 | 660.5 | 549.9 | 35 | 3.4 | 49.7 | 37 | 49.6 | 1450 |
| 74 | SS.06.160.45.370 | 160 | 44.4 | 704.5 | 586.6 | 45 | 4.4 | 63.9 | 37 | 49.6 | 1450 |
| 75 | SS.08.360.6.110 | 360 | 100.0 | 1585.1 | 1319.8 | 6 | 0.6 | 8.5 | 11 | 14.8 | 980 |
| 76 | SS.08.300.7.110 | 300 | 83.3 | 1320.9 | 1099.8 | 7 | 0.7 | 9.9 | 11 | 14.8 | 980 |
| 77 | SS.08.400.7.150 | 400 | 111.1 | 1761.2 | 1466.4 | 7 | 0.7 | 9.9 | 15 | 20.1 | 980 |
| 78 | SS.08.250.11.150 | 250 | 69.5 | 1100.8 | 916.5 | 11 | 1.1 | 15.6 | 15 | 20.1 | 1450 |
| 79 | SS.08.300.10.185 | 300 | 83.3 | 1320.9 | 1099.8 | 10 | 1.0 | 14.2 | 18.5 | 24.8 | 1450 |
| 80 | SS.08.250.15.185 | 250 | 69.5 | 1100.8 | 916.5 | 15 | 1.5 | 21.3 | 18.5 | 24.8 | 1450 |
| 81 | SS.08.400.10.220 | 400 | 111.1 | 1761.2 | 1466.4 | 10 | 1.0 | 14.2 | 22 | 29.5 | 1450 |
| 82 | SS.08.310.13.220 | 310 | 86.1 | 1364.9 | 1136.5 | 13 | 1.3 | 18.5 | 22 | 29.5 | 1450 |
| 83 | SS.08.300.15.220 | 300 | 83.3 | 1320.9 | 1099.8 | 15 | 1.5 | 21.3 | 22 | 29.5 | 1450 |
| 84 | SS.08.400.13.300 | 400 | 111.1 | 1761.2 | 1466.4 | 13 | 1.3 | 18.5 | 30 | 40.2 | 1450 |
| 85 | SS.08.360.15.300 | 360 | 100.0 | 1585.1 | 1319.8 | 15 | 1.5 | 21.3 | 30 | 40.2 | 1450 |
| 86 | SS.08.250.22.300 | 250 | 69.5 | 1100.8 | 916.5 | 22 | 2.2 | 31.2 | 30 | 40.2 | 1450 |
| 87 | SS.08.350.25.370 | 350 | 97.2 | 1541.1 | 1283.1 | 25 | 2.5 | 35.5 | 37 | 49.6 | 1450 |
| 88 | SS.08.400.25.450 | 400 | 111.1 | 1761.2 | 1466.4 | 25 | 2.5 | 35.5 | 45 | 60.3 | 1450 |
| 89 | SS.08.380.28.450 | 380 | 105.6 | 1673.1 | 1393.1 | 28 | 2.7 | 39.8 | 45 | 60.3 | 1450 |
| 90 | SS.08.250.35.450 | 250 | 69.5 | 1100.8 | 916.5 | 35 | 3.4 | 49.7 | 45 | 60.3 | 1450 |
| 91 | SS.08.400.30.550 | 400 | 111.1 | 1761.2 | 1466.4 | 30 | 2.9 | 42.6 | 55 | 73.8 | 1450 |
| 92 | SS.08.250.40.550 | 250 | 69.5 | 1100.8 | 916.5 | 40 | 3.9 | 56.8 | 55 | 73.8 | 1450 |
| 93 | SS.08.350.40.750 | 350 | 97.2 | 1541.1 | 1283.1 | 40 | 3.9 | 56.8 | 75 | 100.6 | 1450 |
| 94 | SS.08.350.45.900 | 350 | 97.2 | 1541.1 | 1283.1 | 45 | 4.4 | 63.9 | 90 | 120.7 | 1450 |
| 95 | SS.08.280.50.900 | 280 | 77.8 | 1232.8 | 1026.5 | 50 | 4.9 | 71.0 | 90 | 120.7 | 1450 |
| 96 | SS.10.500.7.185 | 500 | 138.9 | 2201.5 | 1833.0 | 7 | 0.7 | 9.9 | 18.5 | 24.8 | 980 |
| 97 | SS.10.520.8.220 | 520 | 144.5 | 2289.6 | 1906.3 | 8 | 0.8 | 11.4 | 22 | 29.5 | 980 |
| 98 | SS.10.600.9.300 | 600 | 166.7 | 2641.8 | 2199.6 | 9 | 0.9 | 12.8 | 30 | 40.2 | 980 |
| 99 | SS.10.500.10.300 | 500 | 138.9 | 2201.5 | 1833.0 | 10 | 1.0 | 14.2 | 30 | 40.2 | 980 |
| 100 | SS.10.700.10.370 | 700 | 194.5 | 3082.1 | 2566.2 | 10 | 1.0 | 14.2 | 37 | 49.6 | 1450 |
| 101 | SS.10.600.12.370 | 600 | 166.7 | 2641.8 | 2199.6 | 12 | 1.2 | 17.0 | 37 | 49.6 | 1450 |
| 102 | SS.10.600.15.450 | 600 | 166.7 | 2641.8 | 2199.6 | 15 | 1.5 | 21.3 | 45 | 60.3 | 1450 |
| 103 | SS.10.600.20.550 | 600 | 166.7 | 2641.8 | 2199.6 | 20 | 2.0 | 28.4 | 55 | 73.8 | 1450 |
| 104 | SS.10.700.20.750 | 700 | 194.5 | 3082.1 | 2566.2 | 20 | 2.0 | 28.4 | 75 | 100.6 | 1450 |
| 105 | SS.10.600.25.750 | 600 | 166.7 | 2641.8 | 2199.6 | 25 | 2.5 | 35.5 | 75 | 100.6 | 1450 |
| 106 | SS.10.600.30.900 | 600 | 166.7 | 2641.8 | 2199.6 | 30 | 2.9 | 42.6 | 90 | 120.7 | 1450 |
| 107 | SS.12.900.8.370 | 900 | 250.0 | 3962.7 | 3299.4 | 8 | 0.8 | 11.4 | 37 | 49.6 | 980 |
| 108 | SS.12.800.12.450 | 800 | 222.2 | 3522.4 | 2932.8 | 12 | 1.2 | 17.0 | 45 | 60.3 | 980 |
| 109 | SS.12.500.15.450 | 500 | 138.9 | 2201.5 | 1833.0 | 15 | 1.5 | 21.3 | 45 | 60.3 | 980 |
| 110 | SS.12.800.15.550 | 800 | 222.2 | 3522.4 | 2932.8 | 15 | 1.5 | 21.3 | 55 | 73.8 | 980 |
| 111 | SS.12.600.20.550 | 600 | 166.7 | 2641.8 | 2199.6 | 20 | 2.0 | 28.4 | 55 | 73.8 | 980 |
| 112 | SS.12.800.20.750 | 800 | 222.2 | 3522.4 | 2932.8 | 20 | 2.0 | 28.4 | 75 | 100.6 | 980 |
| 113 | SS.12.950.20.900 | 950 | 263.9 | 4182.9 | 3482.7 | 20 | 2.0 | 28.4 | 90 | 120.7 | 980 |
| 114 | SS.12.1000.25.1100 | 1000 | 277.8 | 4403.0 | 3666.0 | 25 | 2.5 | 35.5 | 110 | 147.5 | 1450 |
| 115 | SS.12.800.32.1100 | 800 | 222.2 | 3522.4 | 2932.8 | 32 | 3.1 | 45.4 | 110 | 147.5 | 1450 |
| 116 | SS.12.800.36.1320 | 800 | 222.2 | 3522.4 | 2932.8 | 36 | 3.5 | 51.1 | 132 | 177.0 | 1450 |
| 117 | SS.12.800.44.1600 | 800 | 222.2 | 3522.4 | 2932.8 | 44 | 4.3 | 62.5 | 160 | 214.6 | 1450 |
| 118 | SS.14.1200.8.450 | 1200 | 333.4 | 5283.6 | 4399.2 | 8 | 0.8 | 11.4 | 45 | 60.3 | 980 |
| 119 | SS.14.1100.10.550 | 1100 | 305.6 | 4843.3 | 4032.6 | 10 | 1.0 | 14.2 | 55 | 73.8 | 980 |
| 120 | SS.14.1300.12.750 | 1300 | 361.1 | 5723.9 | 4765.8 | 12 | 1.2 | 17.0 | 75 | 100.6 | 980 |
| 121 | SS.14.1500.15.900 | 1500 | 416.7 | 6604.5 | 5499.0 | 15 | 1.5 | 21.3 | 90 | 120.7 | 980 |
| 122 | SS.14.1200.18.900 | 1200 | 333.4 | 5283.6 | 4399.2 | 18 | 1.8 | 25.6 | 90 | 120.7 | 980 |
| 123 | SS.14.1100.28.1320 | 1100 | 305.6 | 4843.3 | 4032.6 | 28 | 2.7 | 39.8 | 132 | 177.0 | 980 |
| 124 | SS.14.1000.36.1600 | 1000 | 277.8 | 4403.0 | 3666.0 | 36 | 3.5 | 51.1 | 160 | 214.6 | 980 |
| 125 | SS.15.1200.6.370 | 1200 | 333.4 | 5283.6 | 4399.2 | 6 | 0.6 | 8.5 | 37 | 49.6 | 980 |
| 126 | SS.15.1300.8.450 | 1300 | 361.1 | 5723.9 | 4765.8 | 8 | 0.8 | 11.4 | 45 | 60.3 | 980 |
| 127 | SS.15.1760.7,5.550 | 1760 | 488.9 | 7749.3 | 6452.2 | 7.5 | 0.735 | 10.65 | 55 | 73.8 | 980 |
| 128 | SS.15.1300.10.550 | 1300 | 361.1 | 5723.9 | 4765.8 | 10 | 1.0 | 14.2 | 55 | 73.8 | 980 |
| 129 | SS.15.2600.6.750 | 2600 | 722.3 | 11447.8 | 9531.6 | 6 | 0.6 | 8.5 | 75 | 100.6 | 980 |
| 130 | SS.15.1500.10.750 | 1500 | 416.7 | 6604.5 | 5499.0 | 10 | 1.0 | 14.2 | 75 | 100.6 | 980 |
| 131 | SS.15.2200.9.1100 | 2200 | 611.2 | 9686.6 | 8065.2 | 9 | 0.9 | 12.8 | 110 | 147.5 | 980 |
| 132 | SS.15.2000.15.1320 | 2000 | 555.6 | 8806.0 | 7332.0 | 15 | 1.5 | 21.3 | 132 | 177.0 | 740 |
| 133 | SS.15.1600.20.1320 | 1600 | 444.5 | 7044.8 | 5865.6 | 20 | 2.0 | 28.4 | 132 | 177.0 | 740 |
| 134 | SS.15.1700.22.1600 | 1700 | 472.3 | 7485.1 | 6232.2 | 22 | 2.2 | 31.2 | 160 | 214.6 | 980 |
| 135 | SS.15.1500.26.1600 | 1500 | 416.7 | 6604.5 | 5499.0 | 26 | 2.5 | 36.9 | 160 | 214.6 | 980 |
| 136 | SS.15.2000.22.2000 | 2000 | 555.6 | 8806.0 | 7332.0 | 22 | 2.2 | 31.2 | 200 | 268.2 | 980 |
| 137 | SS.15.1700.30.2000 | 1700 | 472.3 | 7485.1 | 6232.2 | 30 | 2.9 | 42.6 | 200 | 268.2 | 980 |
| 138 | SS.15.1800.32.2500 | 1800 | 500.0 | 7925.4 | 6598.8 | 32 | 3.1 | 45.4 | 250 | 335.3 | 740 |
| 139 | SS.15.2000.30.2800 | 2000 | 555.6 | 8806.0 | 7332.0 | 30 | 2.9 | 42.6 | 280 | 375.5 | 740 |
| 140 | SS.20.2500.10.1100 | 2500 | 694.5 | 11007.5 | 9165.0 | 10 | 1.0 | 14.2 | 110 | 147.5 | 740 |
| 141 | SS.20.2000.15.1100 | 2000 | 555.6 | 8806.0 | 7332.0 | 15 | 1.5 | 21.3 | 110 | 147.5 | 740 |
| 142 | SS.20.2800.10.1320 | 2800 | 777.8 | 12328.4 | 10264.8 | 10 | 1.0 | 14.2 | 132 | 177.0 | 740 |
| 143 | SS.20.3600.10.1600 | 3600 | 1000.1 | 15850.8 | 13197.6 | 10 | 1.0 | 14.2 | 160 | 214.6 | 740 |
| 144 | SS.20.2600.15.1600 | 2600 | 722.3 | 11447.8 | 9531.6 | 15 | 1.5 | 21.3 | 160 | 214.6 | 740 |
| 145 | SS.20.2000.20.1600 | 2000 | 555.6 | 8806.0 | 7332.0 | 22 | 2.2 | 31.2 | 160 | 214.6 | 740 |
| 146 | SS.20.3000.15.2000 | 3000 | 833.4 | 13209.0 | 10998.0 | 15 | 1.5 | 21.3 | 200 | 268.2 | 740 |
| 147 | SS.20.2500.20.2000 | 2500 | 694.5 | 11007.5 | 9165.0 | 20 | 2.0 | 28.4 | 200 | 268.2 | 740 |
| 148 | SS.20.2800.15.2200 | 2800 | 777.8 | 12328.4 | 10264.8 | 15 | 1.5 | 21.3 | 220 | 295.0 | 740 |
| 149 | SS.20.2400.22.2200 | 2400 | 666.7 | 10567.2 | 8798.4 | 22 | 2.2 | 31.2 | 220 | 295.0 | 740 |
| 150 | SS.20.4000.15.2500 | 4000 | 1111.2 | 17612.0 | 14664.0 | 15 | 1.5 | 21.3 | 250 | 335.3 | 980 |
| 151 | SS.20.2600.24.2500 | 2600 | 722.3 | 11447.8 | 9531.6 | 24 | 2.4 | 34.1 | 250 | 335.3 | 980 |
-Frequency: 50 Hz
For more information, please contact us.
